DAPPRA DSC-E220 is a compact built-in controller designed for all DAPPRA AREA SENSOR and SAFETY LIGHT CURTAIN series. It accepts AC110–220V input, provides DC24V power for the sensor emitter and receiver, and features relay signal output for industrial automation and machine protection applications.
Share:
DSC-E220 Built-in Controller for Area Sensor & Safety Light Curtain
SKU: SK22
BRAND: DAPPRA
Compact AC110–220V Controller for Industrial Safety Sensing Systems
The DAPPRA DSC-E220 Built-in Controller is a compact controller designed for integrating Area Sensor and Safety Light Curtain systems into industrial automation equipment.
The controller accepts AC110–220V input power and converts it to DC24V for the connected sensor emitter and receiver. With an integrated relay output, the DSC-E220 provides a simple solution for connecting DAPPRA safety sensing products with machine control systems.
Designed for built-in installation inside industrial control cabinets, the DSC-E220 helps simplify power supply and signal integration while reducing the need for additional external components.
Key Features
- AC110–220V input power
- Built-in AC to DC24V power conversion
- Designed for Area Sensor and Safety Light Curtain
- Integrated relay signal output
- Compact 90 × 115 × 72 mm housing
- Built-in / control cabinet installation
- Suitable for industrial automation equipment
- Compatible with multiple DAPPRA sensor series
Technical Specifications
| Specification | Details |
|---|---|
| Model | DSC-E220 |
| Product Type | Built-in Controller |
| Input Voltage | AC110–220V |
| Input Frequency | 50/60Hz |
| Output Voltage | DC24V |
| Maximum Contact Capacity | AC250V, 5A |
| Response Time | <20 ms (max.) |
| Maximum Power | <15 W (max.) |
| Output | Relay Signal |
| Installation | Built-in / Cabinet Installation |
| Dimensions | 90 × 115 × 72 mm |
AC110–220V to DC24V Power Conversion
The DSC-E220 integrates a power conversion module inside the controller.
The AC110–220V input is converted to DC24V, providing power for the connected Area Sensor or Safety Light Curtain emitter and receiver.
Basic Connection
AC110–220V → DSC-E220 → DC24V → Emitter + Receiver
The integrated relay output provides the corresponding signal interface for connection with the machine control system.
Designed for DAPPRA Area Sensor & Safety Light Curtain
The DSC-E220 is designed to work with DAPPRA's range of industrial sensing and safety products.
Compatible DAPPRA Series
| Series | Product Type |
|---|---|
| DPR Series | General-Purpose Safety Light Curtain |
| DPB Series | Front Ultra-Thin Safety Light Curtain |
| DPC Series | Side Ultra-Thin Safety Light Curtain |
| DPL Series | Multi-Pitch Safety Light Curtain |
| DPF Series | Press Machine Safety Light Curtain |
| DRM Series | Relay Output Safety Light Curtain |
| DRS Series | Diffuse Reflection Area Sensor |
The standardized DC24V power supply and sensor connection design allows the DSC-E220 to be integrated with multiple DAPPRA Area Sensor and Safety Light Curtain configurations.
Wiring Overview
The DSC-E220 uses separate connections for the sensor emitter and receiver.
Receiver
White → Blue → Black → Brown
| Wire | Color | Function |
|---|---|---|
| WH | White | Signal Output |
| BU | Blue | 0V |
| BK | Black | Synchronization Signal |
| BN | Brown | +24V DC |
Emitter
Brown → Black → Blue
| Wire | Color | Function |
|---|---|---|
| BN | Brown | +24V DC |
| BK | Black | Synchronization Signal |
| BU | Blue | 0V |
For the complete wiring diagram and terminal details, refer to the DSC-E220 Wiring Diagram available in the Downloads section.
Industrial Automation Applications
The DSC-E220 is suitable for integrating Area Sensor and Safety Light Curtain systems into:
- Industrial automation machinery
- Machine control cabinets
- Production lines
- Conveyor systems
- Packaging machinery
- Press and forming equipment
- Material handling equipment
- Automated machinery
Compact Built-in Design
With dimensions of 90 × 115 × 72 mm, the DSC-E220 is designed for installation inside industrial control cabinets where space and wiring organization are important.
Its integrated power conversion and relay output combine essential controller functions into a single compact unit, helping simplify the integration of DAPPRA Area Sensor and Safety Light Curtain systems.
Downloads
Download technical documents for the DAPPRA DSC-E220 Built-in Controller, including datasheet, CAD drawing and wiring diagram.
DSC-E220 Datasheet
Technical specifications and product information.

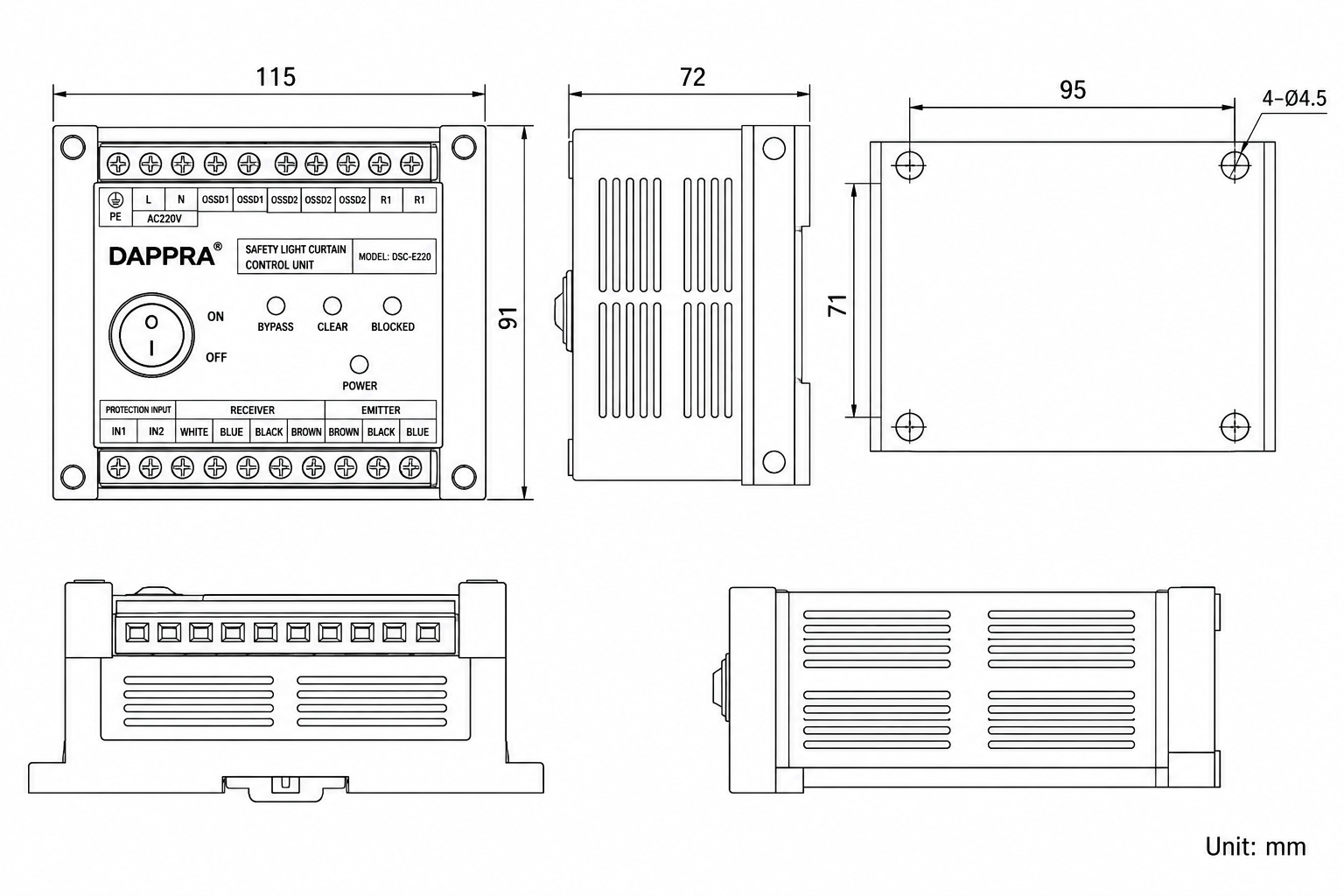

DSC-E220 CAD Drawing
Dimensional drawing for equipment and control cabinet design.
DSC-E220 Wiring Diagram
Wiring and connection diagram for emitter, receiver and controller.
Frequently Asked Questions
Technical information about the DAPPRA DSC-E220 Built-in Controller, including power input, output, compatibility, wiring and applications.
What is the DAPPRA DSC-E220?
+
The DAPPRA DSC-E220 is a built-in controller for Area Sensor and Safety Light Curtain systems. It accepts AC110–220V input power and converts it to DC24V for the connected sensor emitter and receiver, with an integrated relay output for connecting to machine control systems.
What input voltage does the DSC-E220 require?
+
The DSC-E220 accepts AC110–220V input power at 50/60Hz. This covers the common industrial mains voltages used in most markets.
What is the output voltage of the DSC-E220?
+
The DSC-E220 provides DC24V output, which is the standard supply voltage for DAPPRA Area Sensor and Safety Light Curtain emitters and receivers.
What type of output does the DSC-E220 provide?
+
The DSC-E220 provides an integrated relay output with a maximum contact capacity of AC250V, 5A. This allows the controller to interface directly with machine control systems that accept relay signals.
Which DAPPRA series are compatible with the DSC-E220?
+
The DSC-E220 is designed to work with DAPPRA's range of industrial sensing and safety products, including:
- DPR Series — General-Purpose Safety Light Curtain
- DPB Series — Front Ultra-Thin Safety Light Curtain
- DPC Series — Side Ultra-Thin Safety Light Curtain
- DPL Series — Multi-Pitch Safety Light Curtain
- DPF Series — Press Machine Safety Light Curtain
- DRM Series — Relay Output Safety Light Curtain
- DRS Series — Diffuse Reflection Area Sensor
What are the dimensions of the DSC-E220?
+
The DSC-E220 measures 90 × 115 × 72 mm, making it suitable for built-in installation inside industrial control cabinets.
What is the response time of the DSC-E220?
+
The maximum response time of the DSC-E220 is <20 ms, providing fast signal handling for industrial automation and machine safety applications.
What is the maximum power consumption of the DSC-E220?
+
The maximum power consumption of the DSC-E220 is <15 W, keeping energy usage low while powering the connected sensor system.
How is the DSC-E220 wired to the sensor emitter and receiver?
+
The DSC-E220 uses separate connections for the sensor emitter and receiver.
Receiver: White (Signal Output), Blue (0V), Black (Synchronization Signal), Brown (+24V DC).
Emitter: Brown (+24V DC), Black (Synchronization Signal), Blue (0V).
For the complete wiring diagram and terminal details, refer to the DSC-E220 Wiring Diagram available in the Downloads section.
What applications is the DSC-E220 suitable for?
+
The DSC-E220 is suitable for integrating Area Sensor and Safety Light Curtain systems into industrial automation machinery, machine control cabinets, production lines, conveyor systems, packaging machinery, press and forming equipment, material handling equipment and automated machinery.
Can the DSC-E220 be installed inside a control cabinet?
+
Yes. The DSC-E220 is designed for built-in / cabinet installation. Its compact 90 × 115 × 72 mm housing and integrated power conversion and relay output help simplify wiring and reduce the need for additional external components inside the control cabinet.
Where can I download DSC-E220 technical documents?
+
Technical documents are available in the Downloads section:
- DSC-E220 Datasheet
- DSC-E220 CAD Drawing
- DSC-E220 Wiring Diagram
Discover More
Explore the DAPPRA Area Sensor Series
View all Area Sensor series and find the right solution for your application.
View All SeriesNeed Help?
Need Technical Support or a Quote?
Contact DAPPRA Automation for engineering assistance, pricing or OEM/ODM inquiries regarding the DSC-E220 Built-in Controller.
