Industrial Area Sensor & Safety Light Curtain — DPL Series
DAPPRA Compact Safety Light Curtain
DPL Series — Compact
Safety Light Curtain
The DAPPRA DPL Series is a compact safety light curtain designed for inspection and protection on automation equipment, small and medium-sized machinery. Its slim 35 × 28 mm housing fits installations where space is limited but detection accuracy must remain high.
The DPL Series uses Multiple Parallel Beam Through-Beam Detection Technology with separate emitter and receiver units and line synchronization. Four optical-axis pitches — 5 / 10 / 20 / 40 mm — cover high-precision detection through to large-area guarding, with a standard detection distance of 0.1–6 m.
5 / 10 / 20 / 40 mm
Optical-Axis Pitch
<5 ms
Response Time
6 m
Standard Detection Distance
IP65
Protection Rating
Overview
DPL Series Overview
The DAPPRA DPL Series is a compact safety light curtain series used for inspection and protection on various automation equipment. With a slim 35 × 28 mm cross-section housing, the DPL Series is suited to installations where space is limited but detection accuracy must remain high.
The DPL Series uses Multiple Parallel Beam Through-Beam Detection Technology with separate emitter and receiver units and line synchronization for reliable optical-beam operation. Optical-axis pitches of 5 mm, 10 mm, 20 mm and 40 mm provide resolutions of 10 mm, 15 mm, 25 mm and 45 mm respectively, covering high-precision detection through to large-area guarding.
Standard protection heights range from 60 mm to 2000 mm, and the standard detection distance is 0.1–6 m. A dual-circuit self-checking output design and integrated protection circuitry support safe, stable operation in electrically noisy industrial environments.
Key Features
DPL Series Key Features
Engineered for compact automation equipment, high-precision inspection and reliable machine protection.
-
Compact 35 × 28 mm Housing A slim cross-section aluminium alloy housing allows the DPL Series to be installed in space-restricted automation equipment without sacrificing detection performance.
-
5 / 10 / 20 / 40 mm Optical-Axis Pitch Four optical-axis pitch options deliver resolutions of 10 mm, 15 mm, 25 mm and 45 mm for high-precision inspection through to large-area guarding.
-
High Detection Accuracy Tight optical-axis pitches make the DPL Series suitable for high-precision detection scenarios such as small-part presence checking and fine finger protection.
-
0.1–6 m Detection Distance The DPL Series provides a standard detection distance of 0.1–6 m for automation equipment and larger machine layouts.
-
Response Time <5 ms Fast response supports timely stopping and interlock actions on automated machinery.
-
Line Synchronization The emitter and receiver use line synchronization for coordinated optical-beam operation and strong resistance to interference from motors and electromagnetic equipment.
-
Dual-Circuit Self-Checking Output Design A dual-circuit self-checking output architecture with a complete self-diagnostic function supports safer machine operation.
-
Integrated Protection Circuitry Power supply over-voltage protection, reverse-polarity protection and output over-current protection are built in as standard.
-
Multiple Mounting Options Top & bottom mounting brackets, side mounting brackets, cantilever brackets and integrated steel tube brackets are available for different machine structures.
Model Selection
DPL Series Model Selection
Select the appropriate DPL model according to the optical-axis pitch, beam quantity and protection height.
The DPL Series is available in 5 mm, 10 mm, 20 mm and 40 mm optical-axis pitch configurations, with multiple beam quantities, protection heights and total heights for different industrial inspection and protection requirements.
Protection height (H) is calculated as (beam quantity − 1) × optical-axis pitch. Total height (L) additionally includes the upper and lower end caps and the PCB blind zones at each end of the light curtain. Protection heights outside the standard range can be customized.
Model Code
DPL
–
16
05
–
NPN
–
NC
DPL
Series prefix — DAPPRA DPL Series Compact Safety Light Curtain.
16 — Beam Quantity
Number of optical beams, from 04 to 128 depending on pitch and model.
05 — Optical-Axis Pitch
Optical-axis pitch in mm: 05 / 10 / 20 / 40.
NPN — Output Type
Output transistor type: NPN / PNP (relay output available on selected configurations).
NC — Output Logic
NC = Normally Closed; NO = Normally Open.
Field
Meaning
Available Values
DPL
Series prefix
DPL
Beam Quantity
Number of optical beams
04 – 128
Optical-Axis Pitch
Distance between adjacent optical axes
05 / 10 / 20 / 40 mm
Output Type
Transistor output configuration
NPN / PNP
Output Logic
Signal logic state
NC / NO
Example: DPL-1605-NPN-NC = DPL Series, 16 beams, 5 mm optical-axis pitch, NPN output, Normally Closed logic.
Optical Axis Pitch D = 5 mm | Resolution 10 mm
| Beam Quantity | Protection Height (H) mm | Total Height (L) mm | Model |
|---|---|---|---|
| 16 | 75 | 154 | DPL-1605-NPN-NC |
| 24 | 115 | 194 | DPL-2405-NPN-NC |
| 32 | 155 | 234 | DPL-3205-NPN-NC |
| 40 | 195 | 274 | DPL-4005-NPN-NC |
| 48 | 235 | 314 | DPL-4805-NPN-NC |
| 56 | 275 | 354 | DPL-5605-NPN-NC |
| 64 | 315 | 394 | DPL-6405-NPN-NC |
| 72 | 355 | 434 | DPL-7205-NPN-NC |
| 80 | 395 | 474 | DPL-8005-NPN-NC |
| 88 | 435 | 514 | DPL-8805-NPN-NC |
| 96 | 475 | 554 | DPL-9605-NPN-NC |
| 104 | 515 | 594 | DPL-10405-NPN-NC |
| 128 | 635 | 714 | DPL-12805-NPN-NC |
5 mm optical-axis pitch models are available with beam quantities from 16 to 128. Protection height H = (Beam Quantity − 1) × 5 mm. Intermediate beam quantities between the listed values are available on request.
Optical Axis Pitch D = 10 mm | Resolution 15 mm
| Beam Quantity | Protection Height (H) mm | Total Height (L) mm | Model |
|---|---|---|---|
| 8 | 70 | 133 | DPL-0810-NPN-NC |
| 12 | 110 | 173 | DPL-1210-NPN-NC |
| 16 | 150 | 213 | DPL-1610-NPN-NC |
| 20 | 190 | 253 | DPL-2010-NPN-NC |
| 24 | 230 | 293 | DPL-2410-NPN-NC |
| 28 | 270 | 333 | DPL-2810-NPN-NC |
| 32 | 310 | 373 | DPL-3210-NPN-NC |
| 36 | 350 | 413 | DPL-3610-NPN-NC |
| 40 | 390 | 453 | DPL-4010-NPN-NC |
| 44 | 430 | 493 | DPL-4410-NPN-NC |
| 48 | 470 | 533 | DPL-4810-NPN-NC |
| 52 | 510 | 573 | DPL-5210-NPN-NC |
| · · · Intermediate beam quantities available from 56 to 60 · · · | |||
| 64 | 630 | 693 | DPL-6410-NPN-NC |
10 mm optical-axis pitch models are available with beam quantities from 8 to 100. Protection height H = (Beam Quantity − 1) × 10 mm. Total height L = Top cap + Bottom cap + Blind zones + Protection height.
Optical Axis Pitch D = 20 mm | Resolution 25 mm
| Beam Quantity | Protection Height (H) mm | Total Height (L) mm | Model |
|---|---|---|---|
| 4 | 60 | 108 | DPL-0420-NPN-NC |
| 6 | 100 | 173 | DPL-0620-NPN-NC |
| 8 | 140 | 213 | DPL-0820-NPN-NC |
| 10 | 180 | 253 | DPL-1020-NPN-NC |
| 12 | 220 | 293 | DPL-1220-NPN-NC |
| 14 | 260 | 333 | DPL-1420-NPN-NC |
| 16 | 300 | 373 | DPL-1620-NPN-NC |
| 18 | 340 | 413 | DPL-1820-NPN-NC |
| 20 | 380 | 453 | DPL-2020-NPN-NC |
| 22 | 420 | 493 | DPL-2220-NPN-NC |
| 24 | 460 | 533 | DPL-2420-NPN-NC |
| 26 | 500 | 573 | DPL-2620-NPN-NC |
| · · · Intermediate beam quantities available from 28 to 30 · · · | |||
| 32 | 620 | 693 | DPL-3220-NPN-NC |
20 mm optical-axis pitch models are available with beam quantities from 4 to 100. Protection height H = (Beam Quantity − 1) × 20 mm. Total height L = Top cap + Bottom cap + Blind zones + Protection height.
Optical Axis Pitch D = 40 mm | Resolution 45 mm
| Beam Quantity | Protection Height (H) mm | Total Height (L) mm | Model |
|---|---|---|---|
| 4 | 120 | 193 | DPL-0440-NPN-NC |
| 6 | 200 | 273 | DPL-0640-NPN-NC |
| 8 | 280 | 353 | DPL-0840-NPN-NC |
| 10 | 360 | 433 | DPL-1040-NPN-NC |
| 12 | 440 | 513 | DPL-1240-NPN-NC |
| 14 | 520 | 593 | DPL-1440-NPN-NC |
| 16 | 600 | 673 | DPL-1640-NPN-NC |
| 18 | 680 | 753 | DPL-1840-NPN-NC |
| 20 | 760 | 833 | DPL-2040-NPN-NC |
| 22 | 840 | 913 | DPL-2240-NPN-NC |
| 24 | 920 | 993 | DPL-2440-NPN-NC |
| 26 | 1000 | 1073 | DPL-2640-NPN-NC |
| · · · Intermediate beam quantities available from 28 to 30 · · · | |||
| 32 | 1240 | 1313 | DPL-3240-NPN-NC |
40 mm optical-axis pitch models are available with beam quantities from 4 to 100. Protection height H = (Beam Quantity − 1) × 40 mm. Total height L = Top cap + Bottom cap + Blind zones + Protection height.
Protection heights outside the listed standard range can be customized. All dimensions are manually measured and are for reference only — please refer to the actual product for final dimensions.
Technical Parameters
DPL Series Technical Specifications
Confirmed electrical, optical and environmental parameters for the DAPPRA DPL Series.
| Protection Height | 60 – 2000 mm (standard); custom heights available |
| Optical-Axis Pitch | 5 / 10 / 20 / 40 mm |
| Resolution | 10 / 15 / 25 / 45 mm |
| Beam Quantity | 5 mm pitch: 16 – 128 · 10 mm pitch: 8 – 100 · 20 mm pitch: 4 – 100 · 40 mm pitch: 4 – 100 |
| Detection Distance | 0.1 – 6 m (standard) |
| Response Time | < 5 ms |
| Operating Voltage | DC 24 V ± 20 % |
| Output Current | ≤ 200 mA |
| Power Consumption | < 5 W |
| Output Type | NPN / PNP (standard), relay NO / relay NC (selectable on request) |
| Synchronization | Line synchronization |
| Protection Circuitry | Power over-voltage protection, reverse-polarity protection, output over-current protection |
| Insulation Resistance | ≥ 100 MΩ |
| Dielectric Strength | AC 1500 V, 60 s — no breakdown or flashover |
| Housing Cross Section | 35 × 28 mm |
| Housing Material | Aluminium alloy |
| Protection Rating | IP65 |
| Operating Temperature | −10 ~ 55 °C |
| Operating Humidity | < 85 % RH at 20 °C |
Dimensions
DPL Series Dimensions
The DPL Series uses a compact industrial housing with a confirmed cross section of 35 × 28 mm, designed for automation equipment and small to medium-sized machinery.
Protection height is determined by the beam quantity and optical-axis pitch of each model. Total height additionally includes the upper and lower end caps and the PCB blind zones at each end of the light curtain.
For complete mechanical dimensions, refer to the corresponding DPL model page and CAD drawing.
| Housing Cross Section | 35 × 28 mm |
| Upper End Cap (A1) | 14 mm |
| Lower End Cap (A2) | 14 mm |
| PCB Upper Blind Zone (B1) | 5 mm (D = 10 mm) / 10 mm (D = 20 mm, 40 mm) |
| PCB Lower Blind Zone (B2) | 30 mm (D = 10 mm) / 35 mm (D = 20 mm, 40 mm); 10 mm when D = 20 mm with 4 beams |
| Optical-Axis Pitch (D) | 5 / 10 / 20 / 40 mm |
| Protection Height (H) | (Beam Quantity − 1) × Optical-Axis Pitch |
| Total Height (L) | A1 + A2 + B1 + B2 + H |
| Mounting | Top & bottom / side / cantilever / integrated steel tube |
Measurement unit: mm. Data is manually measured and may contain minor deviations — please refer to the actual product for final dimensions. Blind-zone values for 5 mm pitch models are available on the product drawing.
Installation & Mounting
DPL Series Installation & Mounting Options
The DPL Series supports multiple mounting configurations for different automation equipment structures. Top & bottom mounting brackets are included as standard, with side, cantilever and integrated steel tube brackets available as options.
Standard
Top & Bottom Mounting Brackets
Standard brackets with side-fixing brackets, M3 screws, washers and spring washers for conventional vertical installation of the emitter and receiver.
Optional

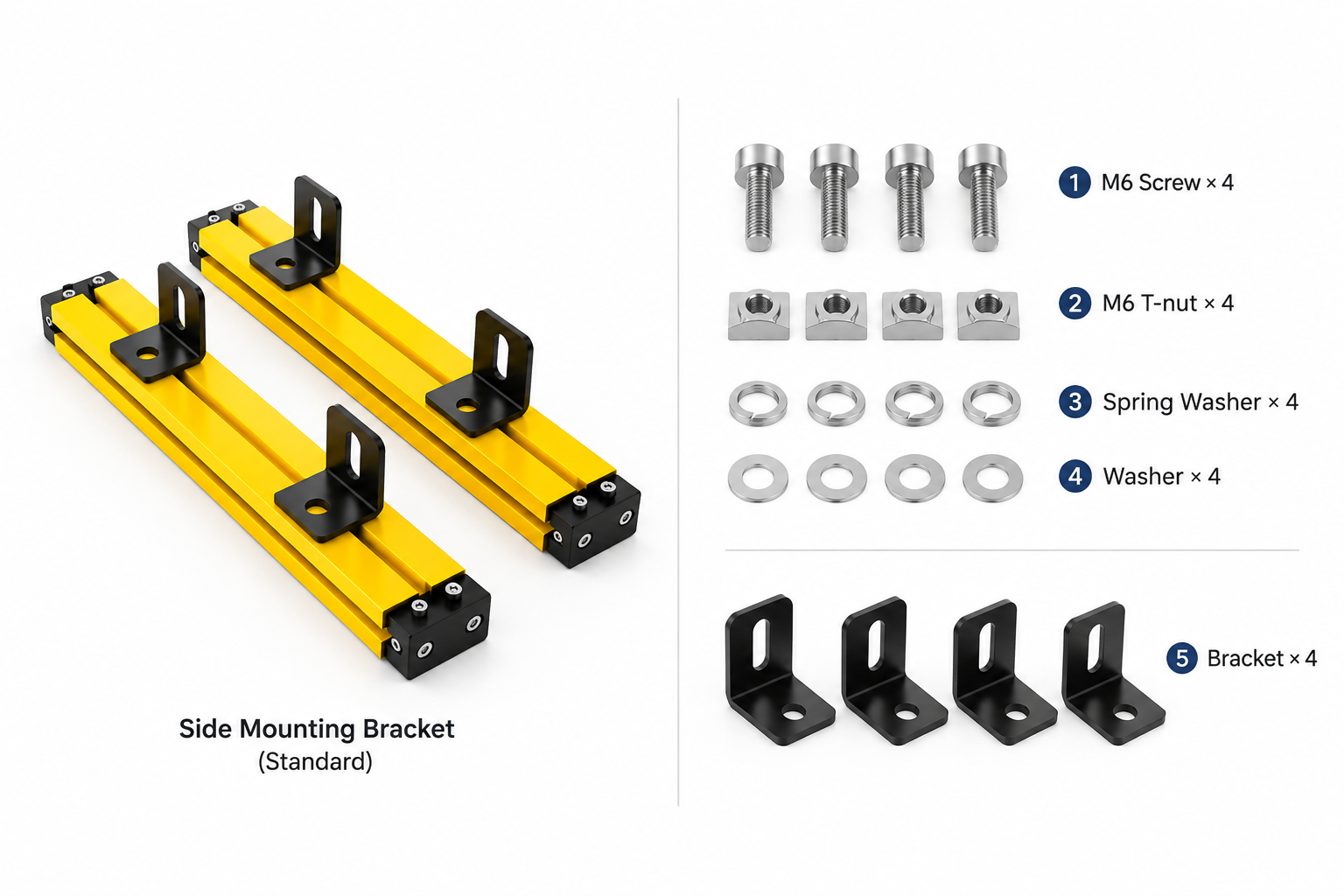

Side Mounting Brackets
Side mounting brackets with M6 long screws, M6 short screws, spring washers, flat washers, nuts and sliding blocks for lateral fixing.
Optional
Cantilever Brackets
Cantilever mounting support with rotary arm, cantilever support rod, standard sliding blocks and M5 / M6 / M18 screws for extended mounting positions.
Optional
Integrated Steel Tube Brackets
Integrated tube bracket system with φ27 tubes, brackets and controller support for floor-standing or free-standing guarding configurations.
The appropriate mounting configuration should be selected according to the machine structure and available installation space.
Wiring Principle
DPL Series Wiring Principle
The DPL Series supports both NPN and PNP output wiring configurations at 24 V DC. Select the wiring method according to the output type of the selected model.
24 V DC NPN Output Wiring
The NPN output switches the signal line to 0 V (GND) when the optical beam is interrupted. Connect the receiver output to the PLC or controller input configured for NPN (sinking) input, and connect the emitter and receiver to 24 V DC according to the wiring diagram below.

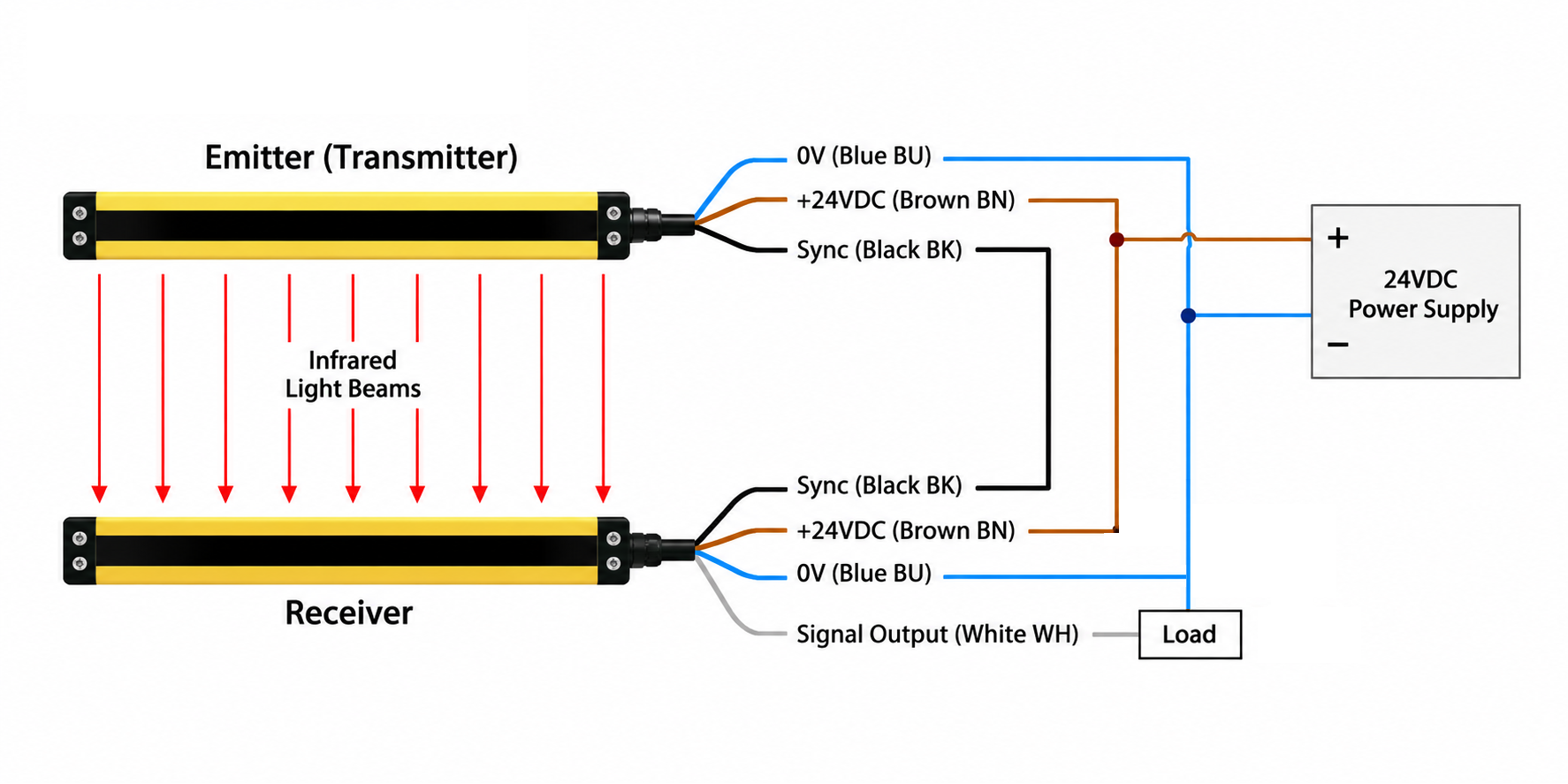

24 V DC PNP Output Wiring
The PNP output switches the signal line to +24 V when the optical beam is interrupted. Connect the receiver output to the PLC or controller input configured for PNP (sourcing) input, and connect the emitter and receiver to 24 V DC according to the wiring diagram below.
Emitter / Receiver Wire Colour Reference
Emitter +24 VDC ···································· Brown (BN) 0 V ···································· Blue (BU) Sync CP ···································· Black (BK) Receiver +24 VDC ···································· Brown (BN) 0 V ···································· Blue (BU) Sync CP ···································· Black (BK) Signal Output ····························· White (WH)
The actual wiring should follow the wiring diagram provided for the selected DPL model. Verify the output type (NPN / PNP) and output logic (NC / NO) before connecting to the controller.
Accessories
DPL Series Accessories
The DPL Series includes the emitter and receiver as the main sensing components. Signal cables, mounting brackets and documentation are provided for installation and system connection.
01 / 04
Safety Light Curtain × 2
Emitter and receiver pair — the main sensing components of the DPL Series.
02 / 04
Signal Connection Cable × 2
Approximately 3 m cable length as standard; custom cable lengths available.
03 / 04
Top & Bottom Mounting Bracket Set × 1
Standard mounting bracket set. Side-mounting, cantilever and integrated steel tube brackets are available as options.
04 / 04
User Manual × 1
Includes wiring instructions, installation instructions and operating instructions.
The exact accessory configuration may vary according to the selected DPL model and mounting requirements.
Applications
DPL Series Industrial Applications
The DPL Series is suitable for automation equipment, small and medium-sized machinery, machine area detection, machine protection, personnel protection, object detection, assembly stations and other automated machinery.
Machine Protection
Personnel Protection
Machine Area Detection
Object Detection
Small-Part Inspection
Automation Equipment
Assembly Stations
Small & Medium Machinery
Packaging Machinery
Cutting Equipment
Robotic Equipment
Material Presence Checking
Next Step
Explore the DPL Series
Browse all DPL Series compact safety light curtain products, or return to the Industrial Area Sensor & Safety Light Curtain category page.
Support
DPL Series FAQ
What is the DAPPRA DPL Series?
The DAPPRA DPL Series is a compact safety light curtain series for inspection and protection on automation equipment, small and medium-sized machinery. It uses a 35 × 28 mm aluminium alloy housing, line synchronization and a dual-circuit self-checking output design.
Which optical-axis pitches are available in the DPL Series?
The DPL Series provides 5 mm, 10 mm, 20 mm and 40 mm optical-axis pitch configurations, with corresponding resolutions of 10 mm, 15 mm, 25 mm and 45 mm.
What is the housing cross section of the DPL Series?
The DPL Series uses a compact 35 × 28 mm aluminium alloy housing, suitable for space-restricted automation equipment.
What is the response time of the DPL Series?
The DPL Series response time is less than 5 ms.
What is the standard detection distance of the DPL Series?
The DPL Series supports a standard protection distance of 0.1–6 m.
How do I select a DPL Series model?
Select the appropriate model according to the required optical-axis pitch, beam quantity and protection height. Protection height (H) is calculated as (beam quantity − 1) × optical-axis pitch; total height (L) additionally includes the end caps and PCB blind zones.
Does the DPL Series support NPN NC output?
Yes. DAPPRA DPL NPN NC models are available within the DPL Series, together with NPN NO, PNP NC and PNP NO output options. Relay normally-open / normally-closed outputs can be selected on request.
What is the protection rating of the DPL Series?
The DPL Series uses an aluminium alloy housing with an IP65 protection rating.
What is the operating voltage of the DPL Series?
The DPL Series operates on DC 24 V ± 20 %, with an output current of ≤ 200 mA and a power consumption of less than 5 W.
