Industrial Area Sensor & Safety Light Curtain — DPC Series
DAPPRA Industrial Area Sensor & Safety Light Curtain
DPC Series — Side Ultra-Thin
Industrial Area Sensor & Safety Light Curtain
The DAPPRA DPC Series is a side ultra-thin Industrial Area Sensor and Safety Light Curtain series designed for compact machines and automation equipment where installation space is limited.
The DPC Series uses Multiple Parallel Beam Through-Beam Detection Technology with separate emitter and receiver units. Its 36.5 × 19 mm side ultra-thin housing makes it suitable for narrow installation spaces.
20 / 40 mm
Optical-Axis Pitch
<10 ms
Response Time
0.1–3 m
Detection Distance
IP65
Protection Rating
Overview
DPC Series Overview
The DAPPRA DPC Series is a side ultra-thin Industrial Area Sensor and Safety Light Curtain series designed for compact machines and automation equipment where installation space is limited.
The DPC Series uses Multiple Parallel Beam Through-Beam Detection Technology with separate emitter and receiver units. Its side ultra-thin housing has a detection surface width of only 19 mm and a cross section of 36.5 × 19 mm, saving installation space for narrow and confined areas.
The series provides 20 mm and 40 mm optical-axis pitch configurations, with beam quantities from 4 up to 200, offering multiple protection heights and total heights for different industrial sensing and protection requirements.
Key Features
DPC Series Key Features
Engineered for space-constrained industrial detection and machine protection applications.
-
Side Ultra-Thin Design The DPC Series features a side ultra-thin housing design with a detection surface width of only 19 mm for applications where installation space is limited.
-
20 / 40 mm Optical-Axis Pitch The DPC Series provides 20 mm and 40 mm optical-axis pitch options for different sensing and protection requirements.
-
36.5 × 19 mm Compact Housing The DPC Series uses a 36.5 × 19 mm compact aluminum alloy housing, saving installation space on compact machinery.
-
Fast Response Time Response time is <10 ms, with the fastest models reaching <1 ms for fast and reliable detection.
-
DC10–30V Working Voltage The DPC Series operates on a DC10–30V power supply with low power consumption and protection against power overvoltage, reverse polarity and output overcurrent.
-
NPN / PNP Output Options Output transistor type: NPN / PNP, with NC / NO output logic.
-
Line Synchronization The emitter and receiver use line synchronization for coordinated optical-beam operation, improving resistance to optical interference.
-
TYPE Safety Level Designed to meet TYPE safety level requirements with complete self-checking diagnostics and strong electromagnetic interference resistance.
Model Selection
DPC Series Model Selection
Select the appropriate DPC model according to the optical-axis pitch, beam quantity and protection height.
The DPC Series is available in 20 mm and 40 mm optical-axis pitch configurations, with beam quantities from 4 up to 200 and multiple protection heights and total heights for different industrial sensing and protection requirements.
Model Code
DPC
-
04
20
-
NPN
-
NC
DPC
Series prefix — DAPPRA DPC Series Side Ultra-Thin Industrial Area Sensor & Safety Light Curtain.
04 — Beam Quantity
Number of optical beams, from 04 to 200 depending on the model.
20 — Optical-Axis Pitch
Optical-axis pitch in mm: 20 / 40.
NPN — Output Type
Output transistor type: NPN / PNP.
NC — Output Logic
NC = Normally Closed; NO = Normally Open.
Field
Meaning
Available Values
DPC
Series prefix
DPC
Beam Quantity
Number of optical beams
04 – 200
Optical-Axis Pitch
Distance between adjacent optical axes
20 / 40 mm
Output Type
Transistor output configuration
NPN / PNP
Output Logic
Signal logic state
NC / NO
Example: DPC-0420-NPN-NC = DPC Series, 4 beams, 20 mm optical-axis pitch, NPN output, Normally Closed logic.
Optical Axis Pitch D = 20 mm
| Beam Quantity | Protection Height (H) mm | Total Height (L) mm | Model |
|---|---|---|---|
| 4 | 60 | 108 | DPC-0420-NPN-NC |
| 6 | 100 | 169 | DPC-0620-NPN-NC |
| 8 | 140 | 209 | DPC-0820-NPN-NC |
| 10 | 180 | 249 | DPC-1020-NPN-NC |
| 12 | 220 | 289 | DPC-1220-NPN-NC |
| 14 | 260 | 329 | DPC-1420-NPN-NC |
| 16 | 300 | 369 | DPC-1620-NPN-NC |
| 18 | 340 | 409 | DPC-1820-NPN-NC |
| 20 | 380 | 449 | DPC-2020-NPN-NC |
| 22 | 420 | 489 | DPC-2220-NPN-NC |
| 24 | 460 | 529 | DPC-2420-NPN-NC |
| · · · Intermediate beam quantities available from 26 to 198 · · · | |||
| 200 | 3980 | 4049 | DPC-20020-NPN-NC |
20 mm optical-axis pitch models are available with beam quantities from 4 to 200. Intermediate beam quantities from 26 to 198 are available on request. Protection height H = (Beam Quantity − 1) × 20 mm. Total height L = Top cap + Bottom cap + Blind zones + Protection height.
Optical Axis Pitch D = 40 mm
| Beam Quantity | Protection Height (H) mm | Total Height (L) mm | Model |
|---|---|---|---|
| 4 | 120 | 189 | DPC-0440-NPN-NC |
| 6 | 200 | 269 | DPC-0640-NPN-NC |
| 8 | 280 | 349 | DPC-0840-NPN-NC |
| 10 | 360 | 429 | DPC-1040-NPN-NC |
| 12 | 440 | 509 | DPC-1240-NPN-NC |
| 14 | 520 | 589 | DPC-1440-NPN-NC |
| 16 | 600 | 669 | DPC-1640-NPN-NC |
| 18 | 680 | 749 | DPC-1840-NPN-NC |
| 20 | 760 | 829 | DPC-2040-NPN-NC |
| 22 | 840 | 909 | DPC-2240-NPN-NC |
| 24 | 920 | 989 | DPC-2440-NPN-NC |
| · · · Intermediate beam quantities available from 26 to 198 · · · | |||
| 200 | 7960 | 8029 | DPC-20040-NPN-NC |
40 mm optical-axis pitch models are available with beam quantities from 4 to 200. Intermediate beam quantities from 26 to 198 are available on request. Protection height H = (Beam Quantity − 1) × 40 mm. Total height L = Top cap + Bottom cap + Blind zones + Protection height.
Dimensions
DPC Series Dimensions
The DPC Series uses a side ultra-thin industrial housing with a confirmed cross section of 36.5 × 19 mm.
Protection height and total height vary according to the beam quantity and optical-axis pitch of each model.
For complete mechanical dimensions, refer to the corresponding DPC model page and CAD drawing.
| Housing Cross Section | 36.5 × 19 mm |
| Top Cap (A1) | 12 mm |
| Bottom Cap (A2) | 12 mm |
| PCB Upper Blind Zone (B1) | 10 mm |
| PCB Lower Blind Zone (B2) | 10 mm (4 beams @ 20 mm) / 35 mm (other models) |
| Optical-Axis Pitch (D) | 20 / 40 mm |
| Protection Height (H) | (Beam Quantity − 1) × Pitch |
| Total Height (L) | Caps + Blind Zones + Protection Height |
Installation
DPC Series Installation
The DPC Series uses a side mounting configuration with standard side mounting brackets. The emitter and receiver are fixed to the machine frame through the mounting brackets on the side of the housing.
The DPC Series uses a side mounting configuration: the emitter and receiver are secured by the side mounting brackets on the aluminum alloy housing.
Each unit is fixed with the standard bracket set — M5 long nuts and screws — so the sensor pair can be mounted directly onto compact machines and space-constrained automation equipment.
-
Mounting Position Side of the emitter and receiver housing.
-
Bracket Set Standard side mounting brackets with M5 long nuts and screws.
-
Alignment The emitter and receiver must be mounted parallel with the optical axes facing each other, so the beams stay aligned across the detection distance.
-
Installation Space The 36.5 × 19 mm side ultra-thin housing allows mounting where installation space is limited.
Wiring Principle
DPC Series Wiring Principle
The DPC Series supports both NPN and PNP output wiring configurations. Select the wiring method according to the output type of the selected model.
NPN Output Wiring
The NPN output switches the signal line to 0 V (GND) when the optical beam is interrupted. Connect the receiver output to the PLC or controller input configured for NPN (sinking) input. Connect the emitter and receiver to DC24V according to the wiring diagram below.
PNP Output Wiring

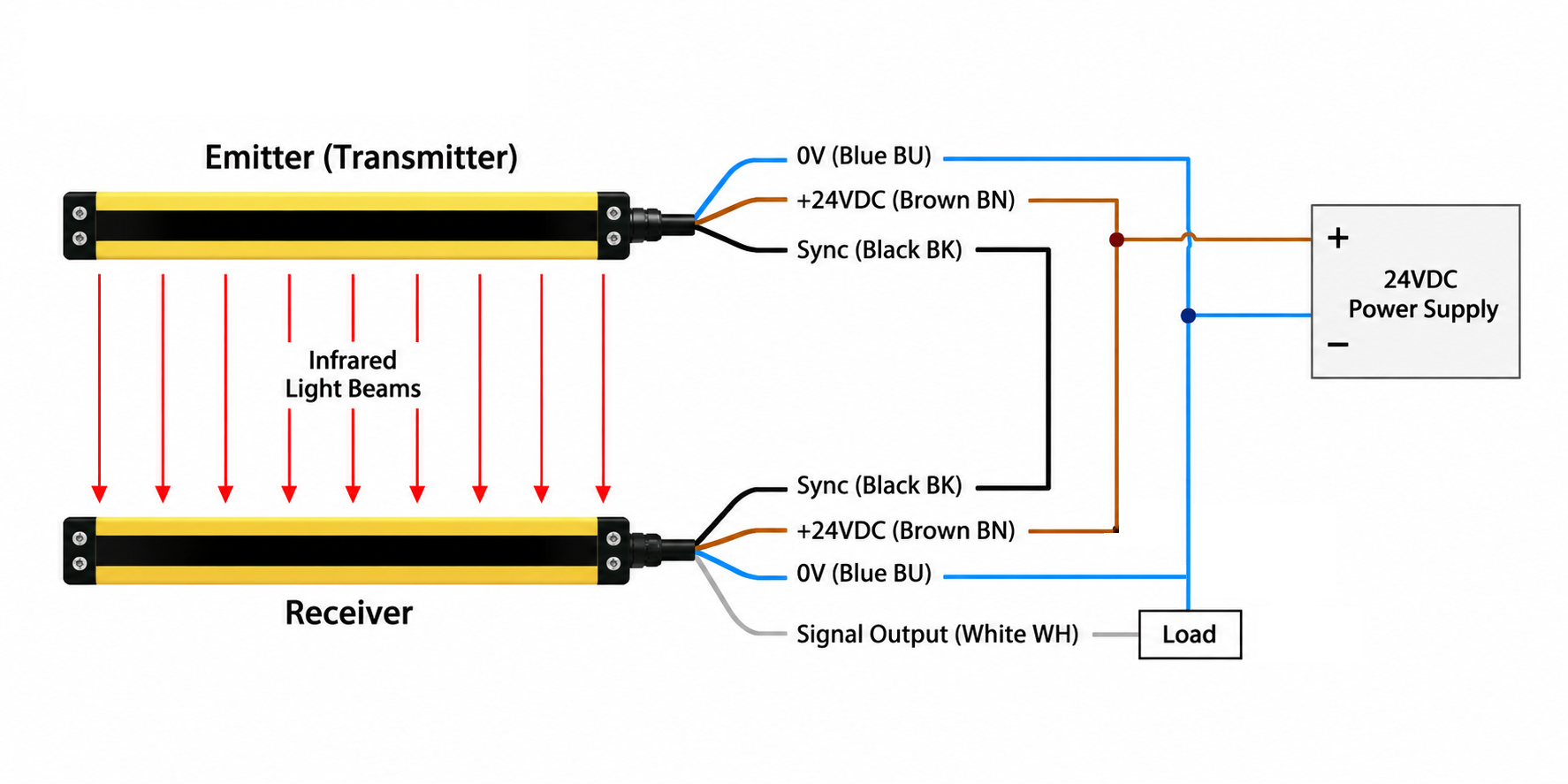

The PNP output switches the signal line to +24 V when the optical beam is interrupted. Connect the receiver output to the PLC or controller input configured for PNP (sourcing) input. Connect the emitter and receiver to DC24V according to the wiring diagram below.
The actual wiring should follow the wiring diagram provided for the selected DPC model.
Accessories
DPC Series Accessories & Mounting Brackets
The DPC Series includes the emitter and receiver as the main sensing components. Connection cables and mounting accessories are used for installation and system connection.
Emitter & Receiver Set
One set of emitter and receiver units is included as the main sensing components of the DPC Series.
Signal Connection Cables
Two signal connection cables, approximately 3 m each. Custom lengths are available on request.
Side Mounting Brackets
Standard side mounting brackets with M5 long nuts and screws for conventional installation.
The exact accessory configuration may vary according to the selected DPC model and mounting requirements.
Applications
DPC Series Industrial Applications
The DPC Series is suitable for industrial automation, machine area detection, machine protection, personnel protection, object detection, conveyor monitoring, packaging equipment and other automated machinery.
Machine Protection
Personnel Protection
Machine Area Detection
Object Detection
Material Detection
Conveyor Monitoring
Automated Equipment
Packaging Machinery
Cutting Equipment
Hydraulic Machinery
Robotic Equipment
Next Step
Explore the DPC Series
Browse all DPC Series side ultra-thin industrial area sensor and safety light curtain products, or return to the Industrial Area Sensor & Safety Light Curtain category page.
Support
DPC Series FAQ
What is the DAPPRA DPC Series?
The DAPPRA DPC Series is a side ultra-thin Industrial Area Sensor and Safety Light Curtain series designed for compact machines and automation equipment where installation space is limited.
What optical-axis pitches are available in the DPC Series?
The DPC Series provides 20 mm and 40 mm optical-axis pitch configurations.
What is the housing cross section of the DPC Series?
The DPC Series uses a side ultra-thin housing with a cross section of 36.5 × 19 mm, saving installation space for compact machines.
What is the response time of the DPC Series?
The DPC Series response time is <10 ms, with the fastest models reaching <1 ms.
What is the protection rating of the DPC Series?
The DPC Series uses an IP65 protection configuration with an aluminum alloy housing.
What is the maximum beam quantity of the DPC Series?
The DPC Series supports up to 200 optical beams for both 20 mm and 40 mm optical-axis pitch configurations.
Does the DPC Series support NPN NC output?
Yes. DAPPRA DPC NPN NC models are available within the DPC Series, together with PNP output options.
