The DAPPRA DPF Series is a press machine safety light curtain designed for stamping, cutting, extrusion and other vibration-heavy industrial equipment. Signal detection and output are handled through a dedicated controller.
The DPF Series uses a 50 × 35 mm aluminum alloy housing with an internal vibration-resistant structure, providing reliable detection in high-vibration environments. It supports 10 / 20 / 40 mm optical-axis pitch, NPN / PNP output and a wide range of controller and mounting options.
The DAPPRA DPF Series is a press machine safety light curtain series primarily used for stamping machine safety protection. The product adopts a controller-based signal detection design, with the controller handling light curtain signal detection and relay output.
The DPF Series operates on AC110–220V or AC380V through the controller, and the internal components use imported original parts for stable performance. The vibration-resistant aluminum alloy housing and complete self-checking functions make it suitable for pressing, cutting, extrusion and other vibration equipment.
The series provides 10 mm, 20 mm and 40 mm optical-axis pitch configurations, with beam quantities from 4 up to 100 and multiple protection heights and total heights for different industrial sensing and protection requirements.
Engineered for press machines, stamping equipment and other vibration-heavy industrial applications.
The DPF Series works with a dedicated controller for signal detection and relay output. Two controller configurations are available according to voltage environment and installation space.
Compact built-in controller designed for installation inside the machine cabinet. Suitable for AC110–220V environments.
External controller with an enhanced enclosure and improved functions, working voltage AC220V. A 380V version is available on request for different industrial power environments.
One controller can be configured to manage multiple DPF sensor sets, enabling multi-face protection such as one-to-two or one-to-three configurations.
Select the appropriate DPF model according to the optical-axis pitch, beam quantity and output type. Controllers are selected separately as optional accessories.
The DPF Series is available in 10 mm, 20 mm and 40 mm optical-axis pitch configurations, with beam quantities from 4 up to 100 and multiple protection heights and total heights for different press machine protection requirements.
| Beam Quantity | Protection Height (H) mm | Total Height (L) mm | Model |
|---|---|---|---|
| 8 | 70 | 145 | DPF-0810-NPN-NC |
| 12 | 110 | 185 | DPF-1210-NPN-NC |
| 16 | 150 | 225 | DPF-1610-NPN-NC |
| 20 | 190 | 265 | DPF-2010-NPN-NC |
| 24 | 230 | 305 | DPF-2410-NPN-NC |
| 28 | 270 | 345 | DPF-2810-NPN-NC |
| 32 | 310 | 385 | DPF-3210-NPN-NC |
| 36 | 350 | 425 | DPF-3610-NPN-NC |
| 40 | 390 | 465 | DPF-4010-NPN-NC |
| 44 | 430 | 505 | DPF-4410-NPN-NC |
| 48 | 470 | 545 | DPF-4810-NPN-NC |
| · · · Intermediate beam quantities available from 52 to 96 · · · | |||
| 100 | 990 | 1065 | DPF-10010-NPN-NC |
10 mm optical-axis pitch models are available with beam quantities from 8 to 100. Protection height H = (Beam Quantity − 1) × 10 mm. Total height L = Top cap + Bottom cap + Blind zones + Protection height.
| Beam Quantity | Protection Height (H) mm | Total Height (L) mm | Model |
|---|---|---|---|
| 4 | 60 | 120 | DPF-0420-NPN-NC |
| 6 | 100 | 185 | DPF-0620-NPN-NC |
| 8 | 140 | 225 | DPF-0820-NPN-NC |
| 10 | 180 | 265 | DPF-1020-NPN-NC |
| 12 | 220 | 305 | DPF-1220-NPN-NC |
| 14 | 260 | 345 | DPF-1420-NPN-NC |
| 16 | 300 | 385 | DPF-1620-NPN-NC |
| 18 | 340 | 425 | DPF-1820-NPN-NC |
| 20 | 380 | 465 | DPF-2020-NPN-NC |
| 22 | 420 | 505 | DPF-2220-NPN-NC |
| 24 | 460 | 545 | DPF-2420-NPN-NC |
| · · · Intermediate beam quantities available from 26 to 48 · · · | |||
| 50 | 980 | 1065 | DPF-5020-NPN-NC |
20 mm optical-axis pitch models are available with beam quantities from 4 to 50. Protection height H = (Beam Quantity − 1) × 20 mm. Total height L = Top cap + Bottom cap + Blind zones + Protection height.
| Beam Quantity | Protection Height (H) mm | Total Height (L) mm | Model |
|---|---|---|---|
| 4 | 120 | 205 | DPF-0440-NPN-NC |
| 6 | 200 | 285 | DPF-0640-NPN-NC |
| 8 | 280 | 365 | DPF-0840-NPN-NC |
| 10 | 360 | 445 | DPF-1040-NPN-NC |
| 12 | 440 | 525 | DPF-1240-NPN-NC |
| 14 | 520 | 605 | DPF-1440-NPN-NC |
| 16 | 600 | 685 | DPF-1640-NPN-NC |
| 18 | 680 | 765 | DPF-1840-NPN-NC |
| 20 | 760 | 845 | DPF-2040-NPN-NC |
| 22 | 840 | 925 | DPF-2240-NPN-NC |
| 24 | 920 | 1005 | DPF-2440-NPN-NC |
| · · · Intermediate beam quantities available from 26 to 48 · · · | |||
| 50 | 1960 | 2045 | DPF-5040-NPN-NC |
40 mm optical-axis pitch models are available with beam quantities from 4 to 50. Protection height H = (Beam Quantity − 1) × 40 mm. Total height L = Top cap + Bottom cap + Blind zones + Protection height.
The DPF Series uses a 50 × 35 mm aluminum alloy housing with an internal vibration-resistant structure, designed for press machines and other vibration-heavy equipment.
Protection height and total height vary according to the beam quantity and optical-axis pitch of each model.
For complete mechanical dimensions, refer to the corresponding DPF model page and CAD drawing.
| Housing Cross Section | 50 × 35 mm |
| Top Cap (A1) | 20 mm |
| Bottom Cap (A2) | 20 mm |
| PCB Upper Blind Zone (B1) | 5 mm (D = 10 mm) / 10 mm (D = 20 / 40 mm) |
| PCB Lower Blind Zone (B2) | 30 mm (D = 10 mm) / 10 mm (4 beams @ 20 mm) / 35 mm (other models) |
| Optical-Axis Pitch (D) | 10 / 20 / 40 mm |
| Protection Height (H) | (Beam Quantity − 1) × Pitch |
| Total Height (L) | Caps + Blind Zones + Protection Height |
The DPF Series supports multiple mounting configurations for different press machine structures. Standard side mounting brackets are included, with cantilever brackets and integrated tube brackets available as options.

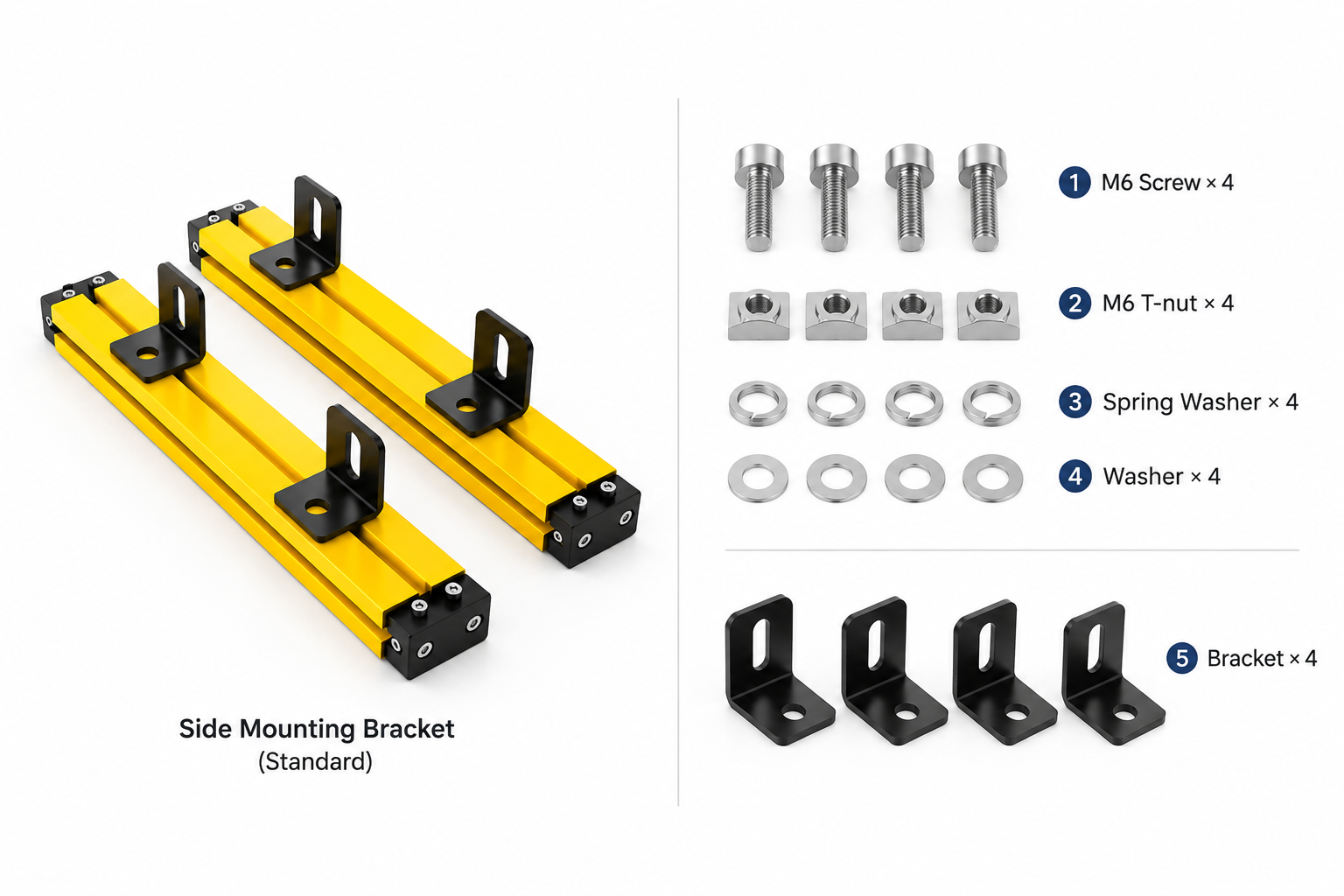

Standard side mounting brackets with M6 long screws, M6 short screws, spring washers, flat washers, nuts and sliding blocks for conventional press machine installation.
Cantilever mounting support with rotary arm, cantilever support rod, standard sliding blocks and M5 / M6 / M18 screws, suitable for extended mounting positions.

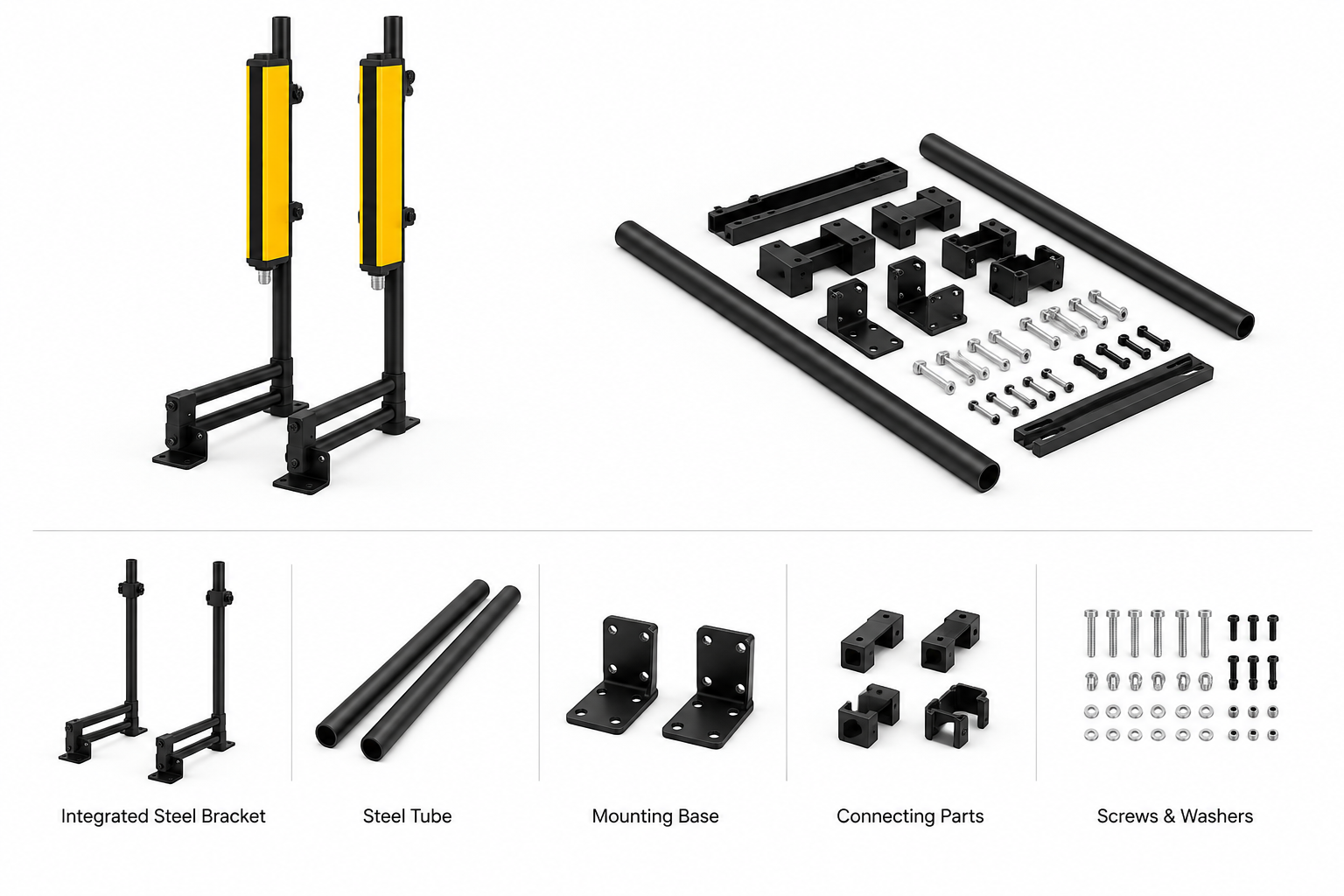

Integrated tube bracket system with φ27 tubes, brackets and controller support, suitable for large press machines requiring a complete mounting structure.
The DPF Series supports direct NPN and PNP output wiring. When a controller is used, select the wiring method according to the controller model.
The NPN output switches the signal line to 0 V (GND) when the optical beam is interrupted. Connect the receiver output to the PLC or controller input configured for NPN (sinking) input. Connect the emitter and receiver to DC24V according to the wiring diagram below.

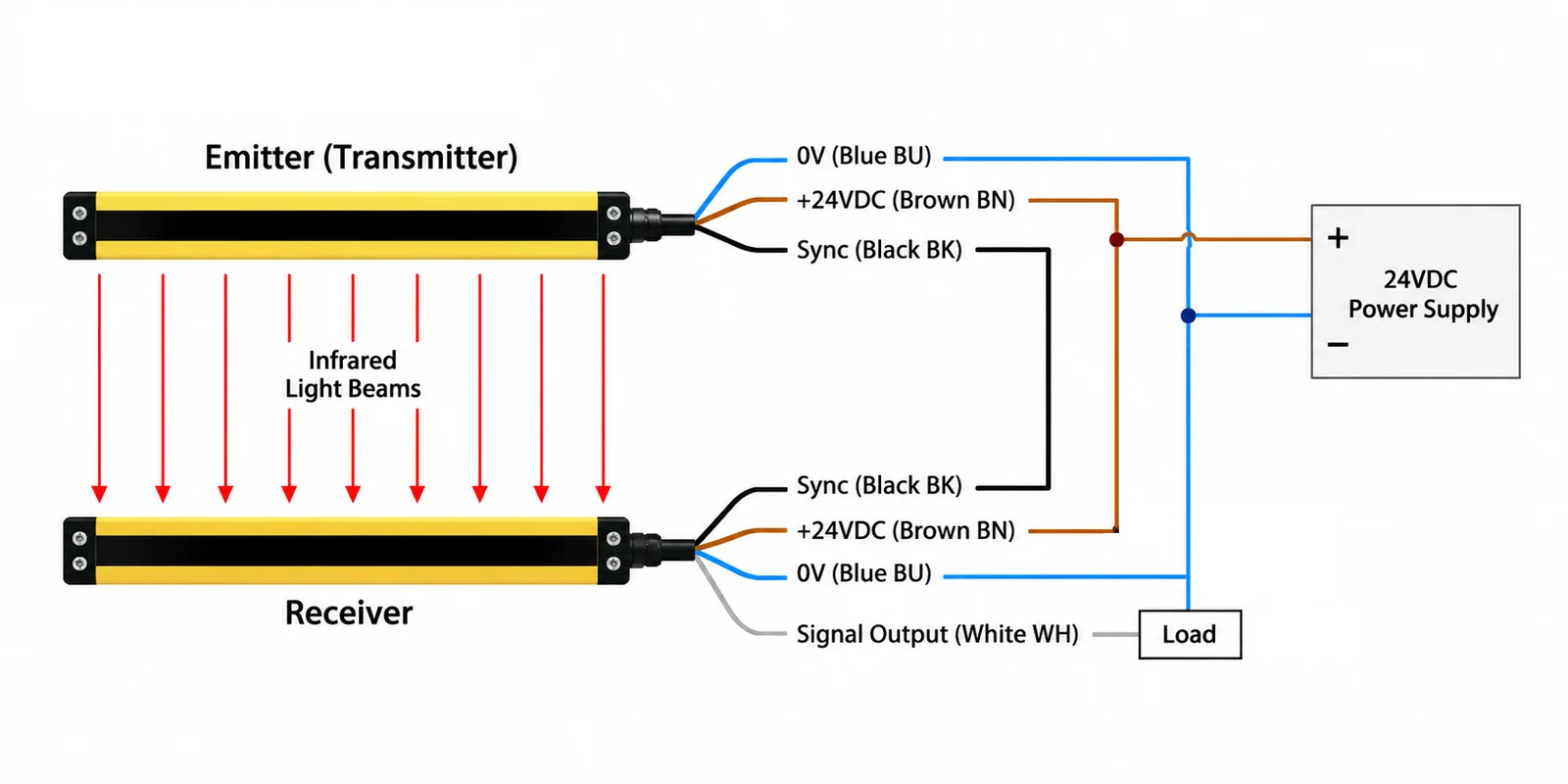

The PNP output switches the signal line to +24 V when the optical beam is interrupted. Connect the receiver output to the PLC or controller input configured for PNP (sourcing) input. Connect the emitter and receiver to DC24V according to the wiring diagram below.
A controller is an optional accessory. If a controller is used for signal detection and relay output, refer to the corresponding wiring diagram below according to the controller model.

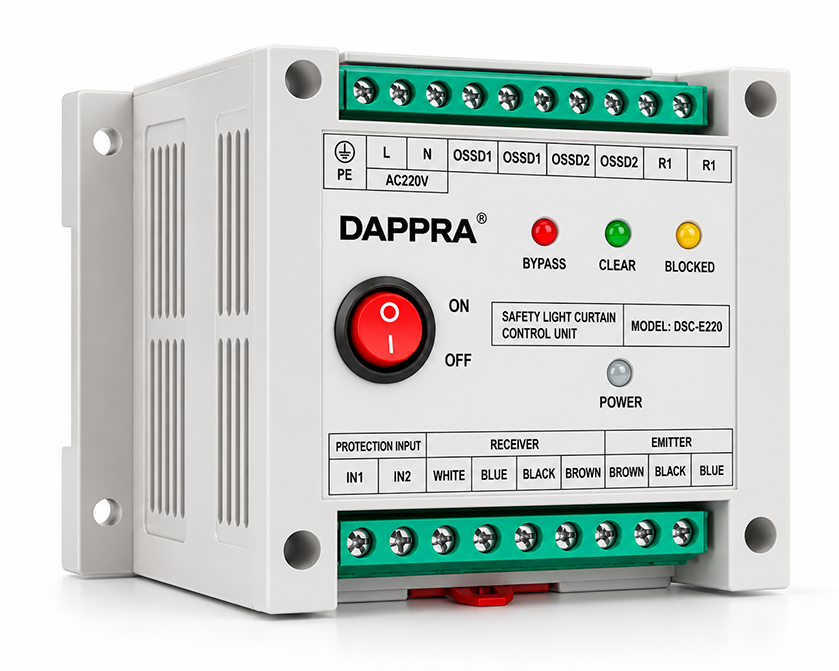

The built-in controller DSC-E220 is installed inside the machine cabinet and connected to the emitter and receiver through the controller terminals. The controller handles signal detection and provides relay output to the machine control circuit. Suitable for AC110–220V environments.

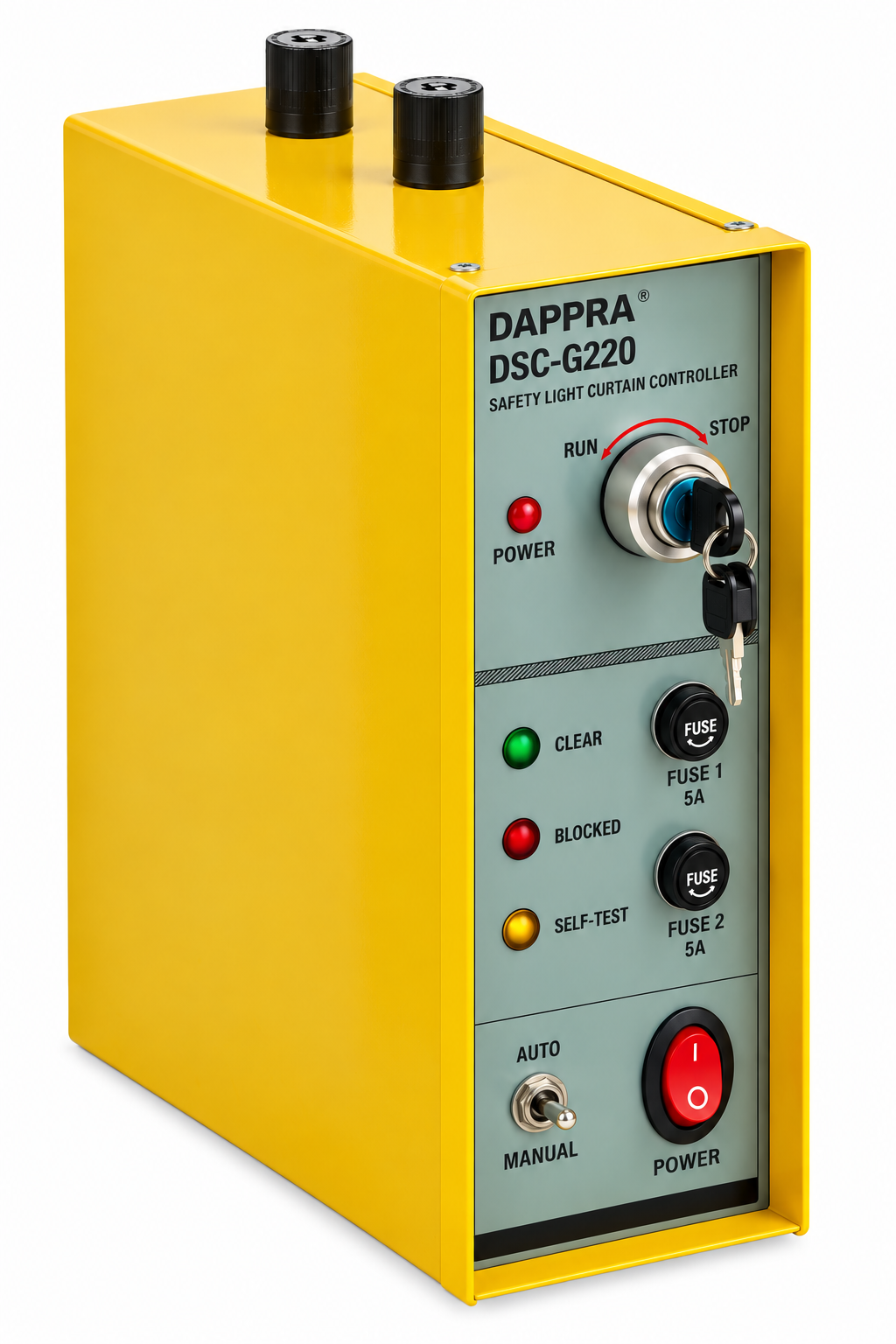

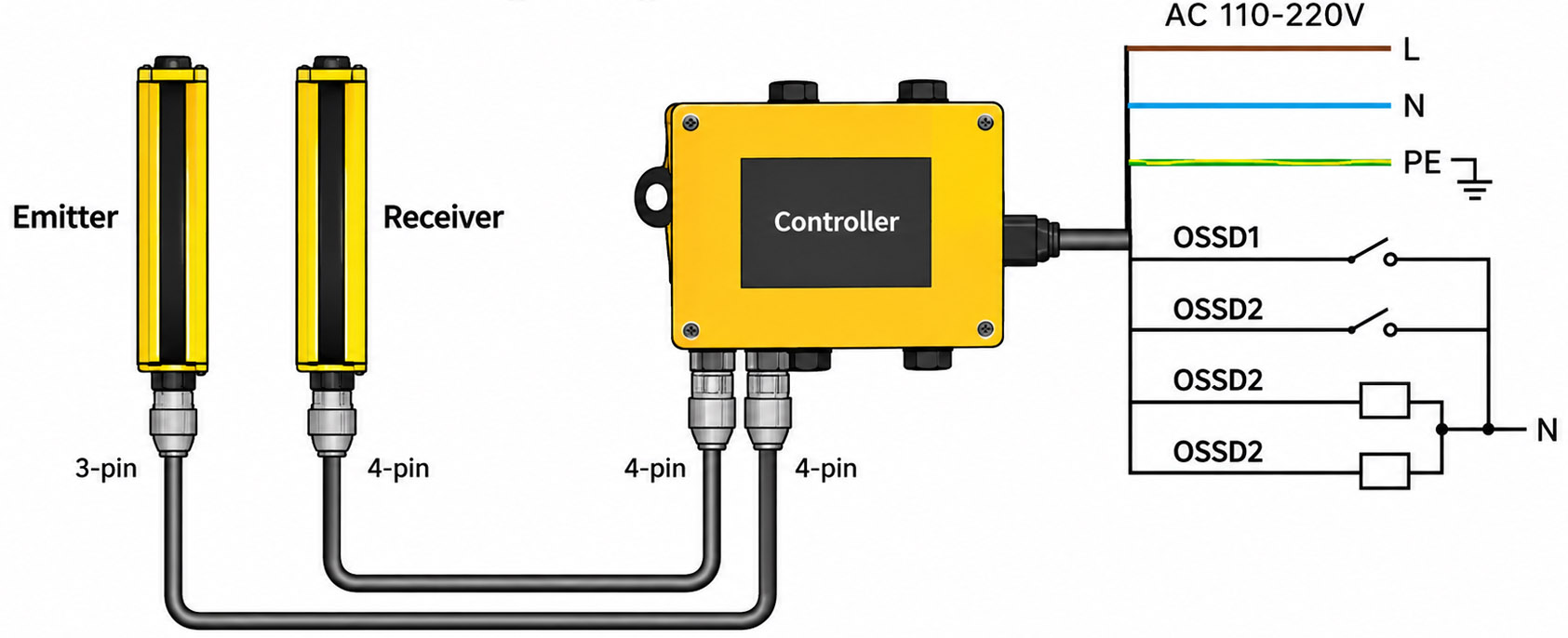

The external controller DSC-G220 is mounted outside the machine cabinet with an enhanced enclosure and improved functions. It handles signal detection and provides relay output. Working voltage AC220V, with 380V available on request.
The actual wiring should follow the wiring diagram provided for the selected DPF model and controller configuration. Controllers are optional accessories and are not required for direct NPN / PNP sensor wiring.
The DPF Series includes the emitter and receiver as the main sensing components. Signal cables, mounting brackets and documentation are provided for installation and system connection.
One set of emitter and receiver units as the main sensing components of the DPF Series.
Two signal connection cables, approximately 3 m each. Custom lengths are available on request.
Standard side mounting brackets with M6 long screws, M6 short screws, spring washers, flat washers, nuts and sliding blocks.
Wiring instructions, installation instructions and operation instructions are included.
Cantilever brackets and integrated tube brackets are available as optional accessories for different press machine structures. Controllers are also available as optional accessories for signal detection and relay output. The exact accessory configuration may vary according to the selected DPF model and mounting requirements.
The DPF Series is primarily designed for press machine safety protection, and is also suitable for cutting, extrusion and other vibration-heavy industrial equipment.
Browse all DPF Series press machine safety light curtain products, or return to the Industrial Area Sensor & Safety Light Curtain category page.
The DAPPRA DPF Series is a press machine safety light curtain series designed for stamping, cutting, extrusion and other vibration-heavy industrial equipment, using a controller for signal detection.
The DPF Series provides 10 mm, 20 mm and 40 mm optical-axis pitch configurations for different resolution and protection requirements.
The DPF Series uses a 50 × 35 mm aluminum alloy housing with an internal vibration-resistant structure.
The DPF Series response time is ≤5 ms.
The DPF Series supports a protection distance from 0.1 m up to 3 m as standard, with customized versions reaching up to 20 m.
The DPF Series supports two controller options: the built-in controller DSC-E220 (AC110–220V) and the external controller DSC-G220 (AC220V, 380V available on request).
Yes. One controller can manage multiple DPF sensor sets, forming multi-face protection such as one-to-two or one-to-three configurations.
Yes. DAPPRA DPF NPN NC models are available within the DPF Series, together with NPN NO, PNP NC and PNP NO output options.
