DRM-0620-R Relay Safety Light Curtain Industrial Area Sensor

Product Overview

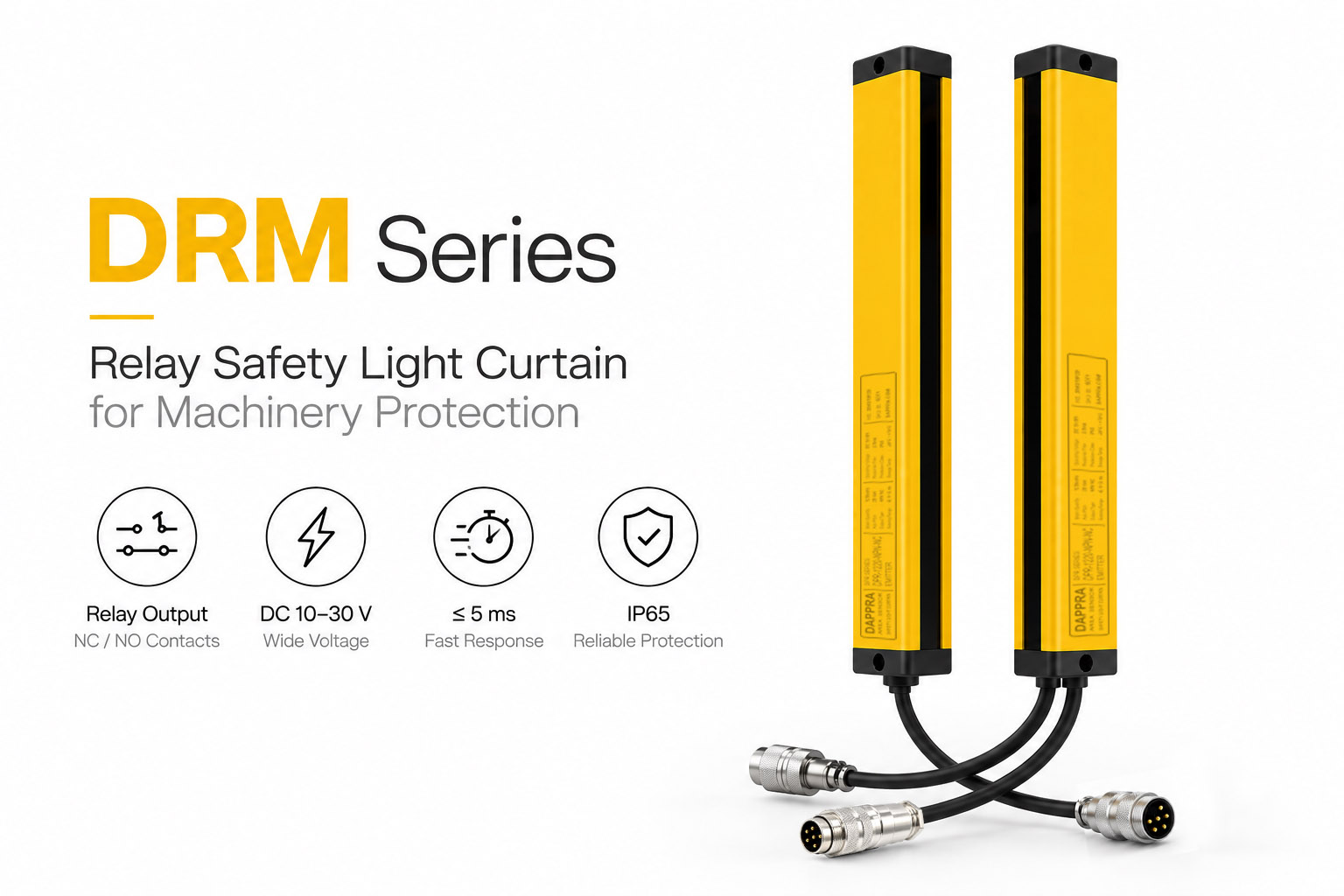

DAPPRA DRM-0620-R is a six-beam Relay Safety Light Curtain designed for machinery safety protection, automation equipment and small to medium-sized machinery. It uses separate EMITTER and RECEIVER units to provide a 100 mm protection height, with a 30 × 35 mm aluminium alloy housing, relay output and a ≤5 ms response time.

The DRM Series uses Multiple Parallel Beam Through-Beam Detection Technology and adopts relay output with isolated common, normally-closed and normally-open contacts for direct switching of machine control circuits. It supports 20 mm and 40 mm optical-axis pitch configurations for machinery protection applications.

The DRM-0620-R is suitable for machine protection, personnel protection, pressing equipment, cutting equipment, extrusion equipment and general industrial automation applications.

DRM-0620-R Key Features

• Relay Output (Common / NC / NO)
• 30 × 35 mm Aluminium Alloy Housing
• 6 Optical Beams
• 20 mm Optical-Axis Pitch
• 100 mm Protection Height
• 170 mm Total Height
• Vibration-Resistant Internal Structure
• ≤5 ms Response Time
• 0.1–3 m Standard Detection Distance
• DC 10–30 V Wide Working Voltage
• ≤200 mA Output Current · <5 W Power Consumption
• IP65 Protection Rating
• Line Synchronization
• Complete Self-Checking Function
• Integrated Protection Circuitry
• Side Mounting / Cantilever Mounting Options

Relay Output Design with Vibration Resistance

The DRM Series adopts a relay output architecture with isolated common, normally-closed and normally-open contacts. This allows the light curtain to switch the machine control circuit directly without an additional interface, which simplifies wiring and improves reliability in industrial environments. The operating voltage is DC 10–30 V with an output current of ≤200 mA and power consumption of <5 W.

The product uses a 30 × 35 mm aluminium alloy housing with an internal vibration-resistant structure. Combined with complete self-checking functions and integrated protection circuitry (power over-voltage protection, reverse-polarity protection, output over-current protection), this design supports stable detection on pressing, cutting and extrusion machines where vibration is continuous.

The DRM Series focuses on achieving a balance between relay output simplicity, vibration resistance and machinery safety.

Product Specifications

Optical Detection Structure

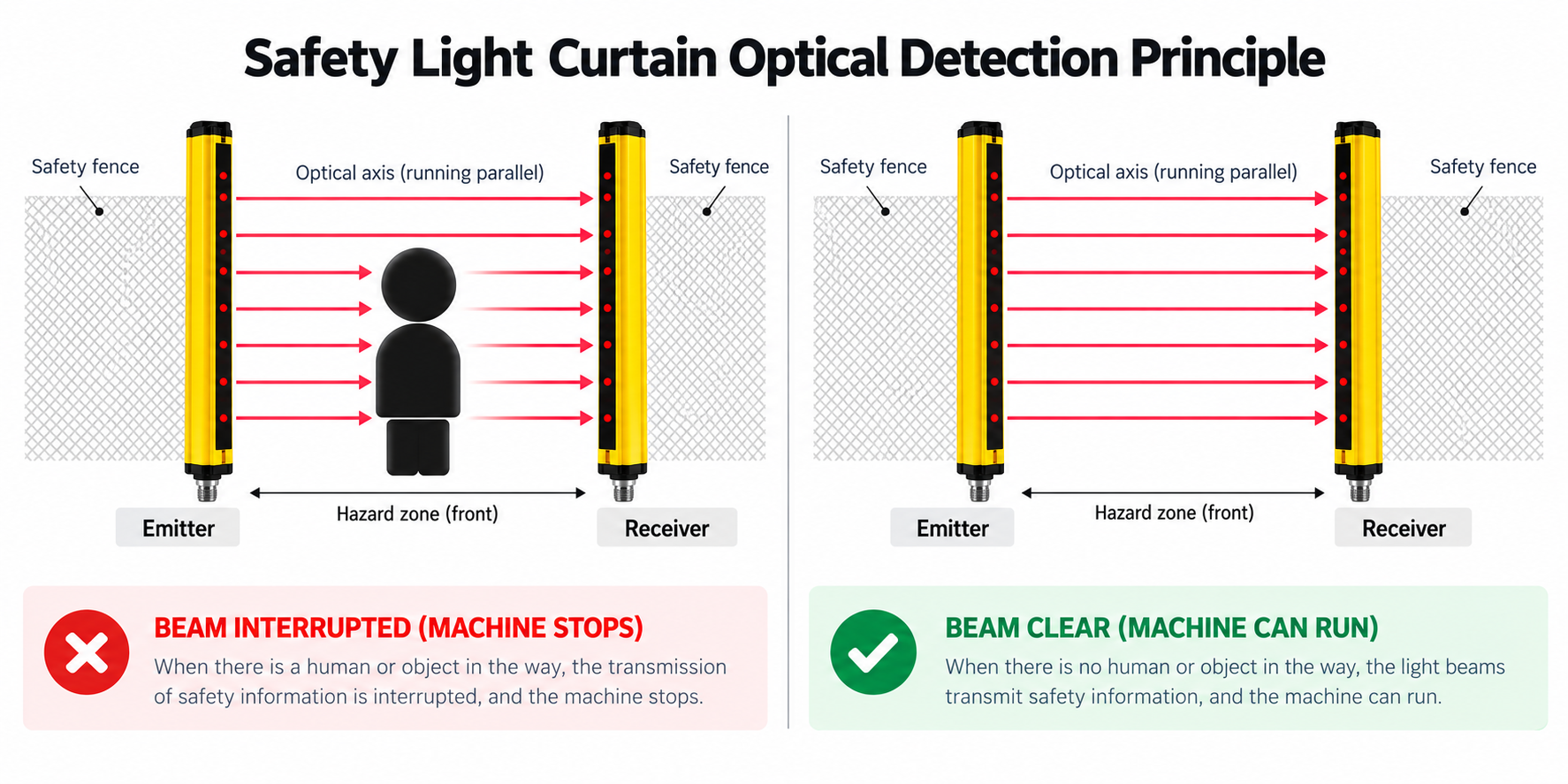

The DRM-0620-R uses separate EMITTER and RECEIVER units to create a parallel infrared detection field.

The 6 optical beams are arranged with a 20 mm optical-axis pitch, providing a 100 mm protection height.

When an object or person interrupts the infrared beam path, the receiver detects the change in the optical field and switches the corresponding relay output (common, normally-closed, normally-open contacts) to control the machine stop circuit.

Area Sensor vs Safety Light Curtain

Fast ≤5 ms Response

With a response time of ≤5 ms, the DRM-0620-R provides fast detection for machinery safety applications, supporting rapid response to objects or personnel entering or passing through the sensing area.

Combined with line synchronization between the emitter and receiver and the complete self-checking function, the DRM Series supports reliable machine protection in vibration-heavy industrial environments.

IP65 Protection for Industrial Environments

The DRM-0620-R features an IP65 protection rating with an aluminium alloy housing, making it suitable for industrial automation environments where protection against dust and water jets is required.

The operating temperature range is −10 ~ +55 °C with an operating humidity of <85 % RH at 20 °C, and light interference resistance of 10,000 Lux (incident angle > 5°).

Relay Output

The DRM-0620-R uses relay output with isolated common, normally-closed and normally-open contacts for direct switching of machine control circuits. This eliminates the need for an additional output interface and simplifies integration with machine control systems.

The relay contacts are rated for ≤200 mA output current, with an operating voltage of DC 10–30 V and power consumption of <5 W.

DRM-0620-R Model Information

The model number identifies the DRM Series configuration, beam quantity, optical-axis pitch and output type.

Dimensions

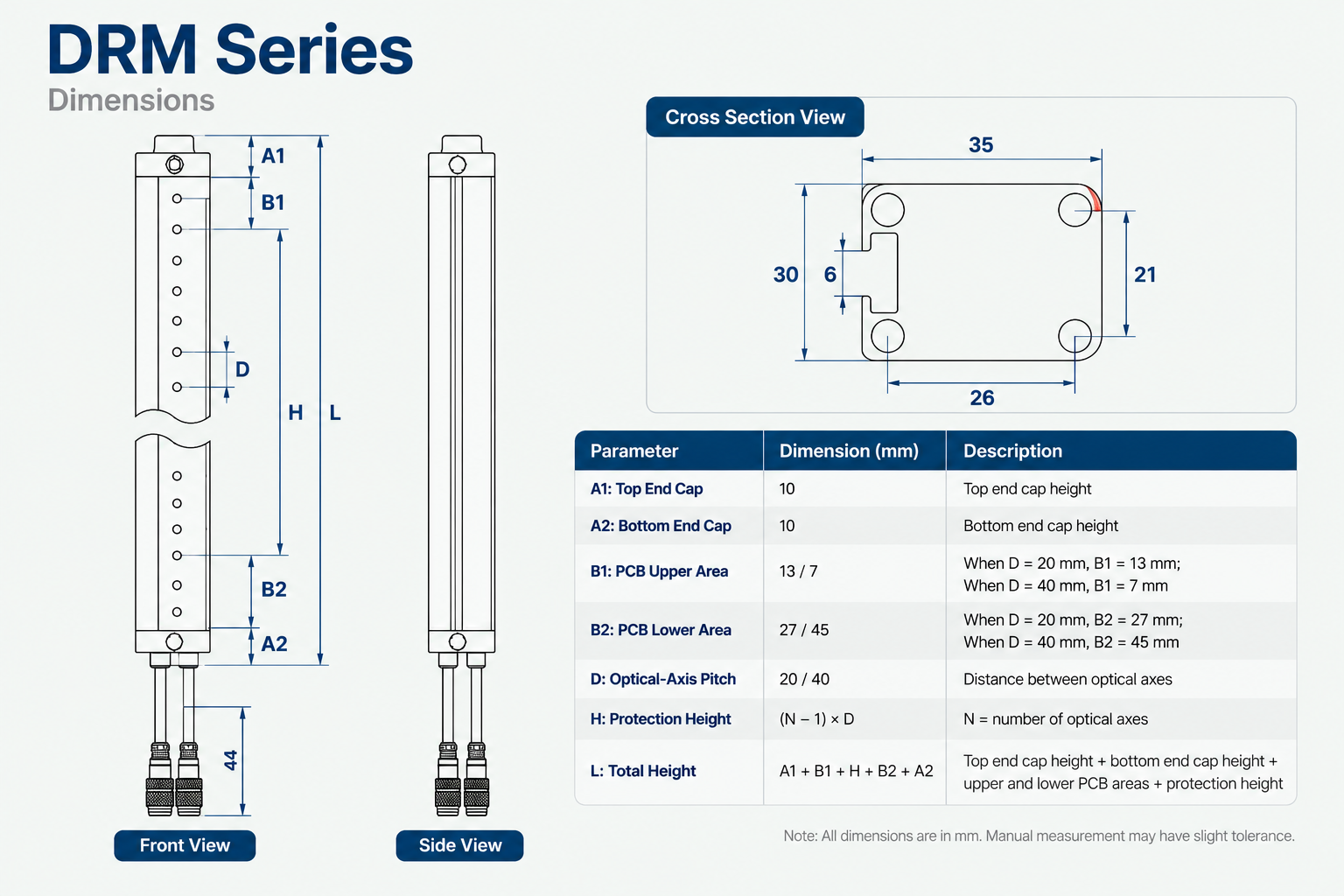

The DRM-0620-R features a 30 × 35 mm aluminium alloy housing with a 100 mm protection height and 170 mm total height.

Key dimensions:

• Housing Cross Section: 30 × 35 mm
• Optical-Axis Pitch: 20 mm
• Protection Height: 100 mm
• Total Height: 170 mm

Installation Method

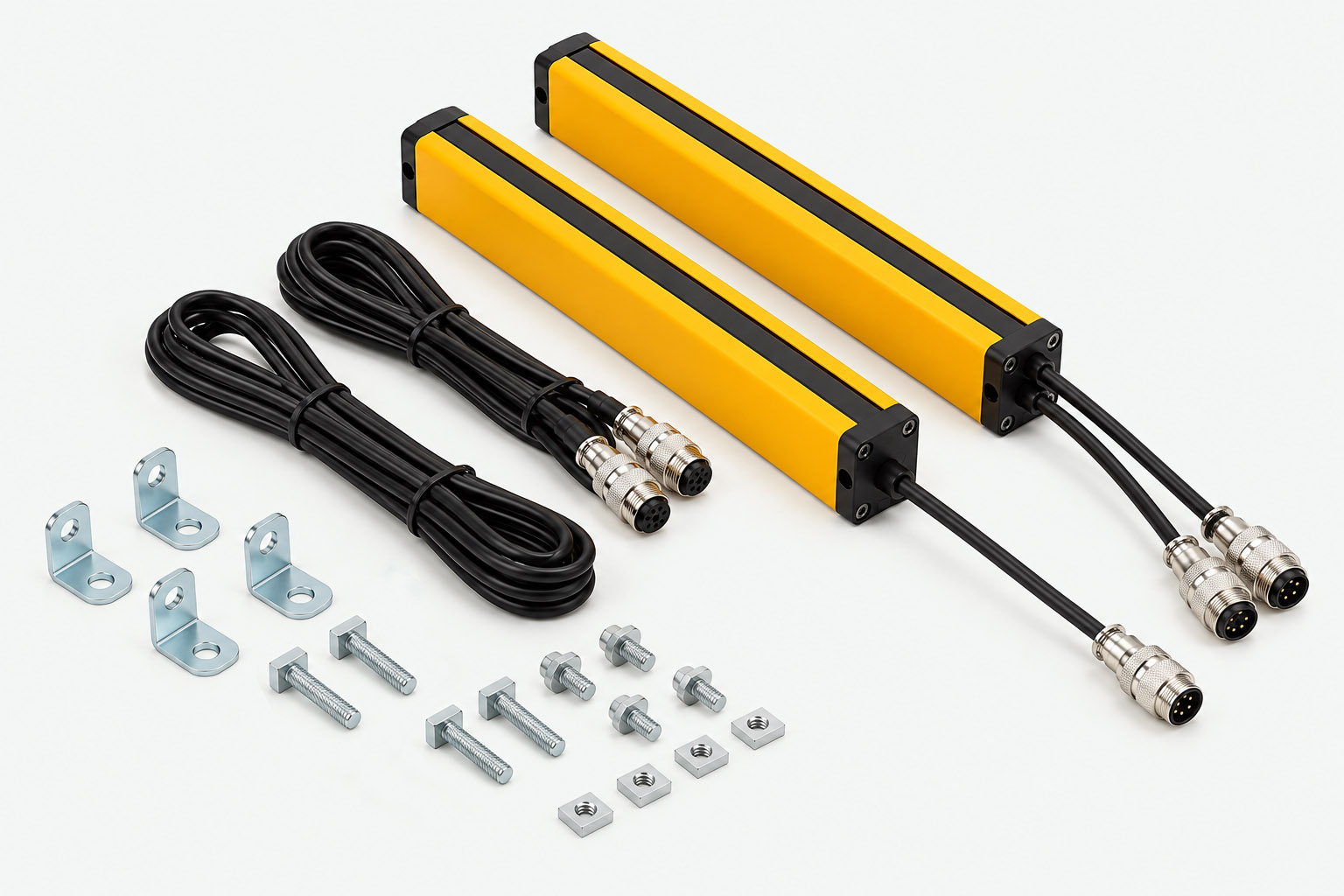

The DRM Series supports multiple mounting configurations for different machinery structures. Standard side mounting brackets are included, with cantilever brackets available as options.

The 30 × 35 mm aluminium alloy housing provides a stable mounting base while maintaining the internal vibration-resistant structure required for machinery protection environments.

The EMITTER and RECEIVER should be securely installed and accurately aligned to ensure reliable infrared detection.

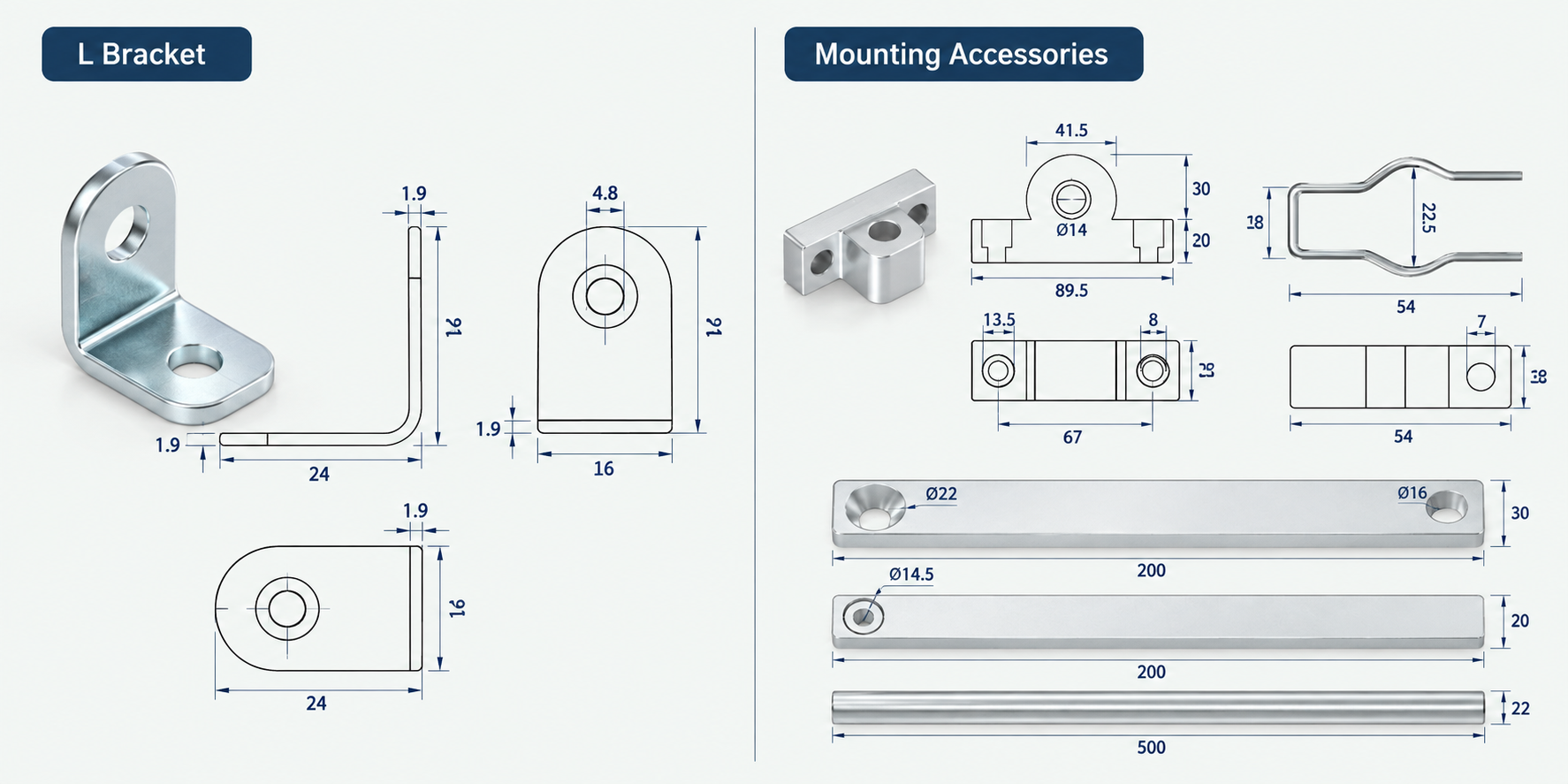

• Side Mounting Brackets — Standard side mounting with side-fixing brackets and M5 sliding blocks
• Cantilever Brackets — Extended mounting positions with rotary arm and cantilever support rod

DRM Series Model Selection

The DRM Series provides different beam quantities, optical-axis pitches and protection heights for different machinery protection requirements.

For the DRM-0620-R:

For the complete DRM Series model selection table, including different beam quantities, optical-axis pitches and protection heights, please visit the DRM Series page. [VIEW DRM SERIES MODEL SELECTION →]

Wiring & Relay Contacts

The DRM-0620-R uses relay output at DC 10–30 V. The receiver provides a sync port and a 5-wire output port for connection to the machine control circuit. The relay contacts (common, normally-closed, normally-open) switch the machine control circuit directly.

Before connection, verify the relay contact wiring and the input configuration of the machine control system.

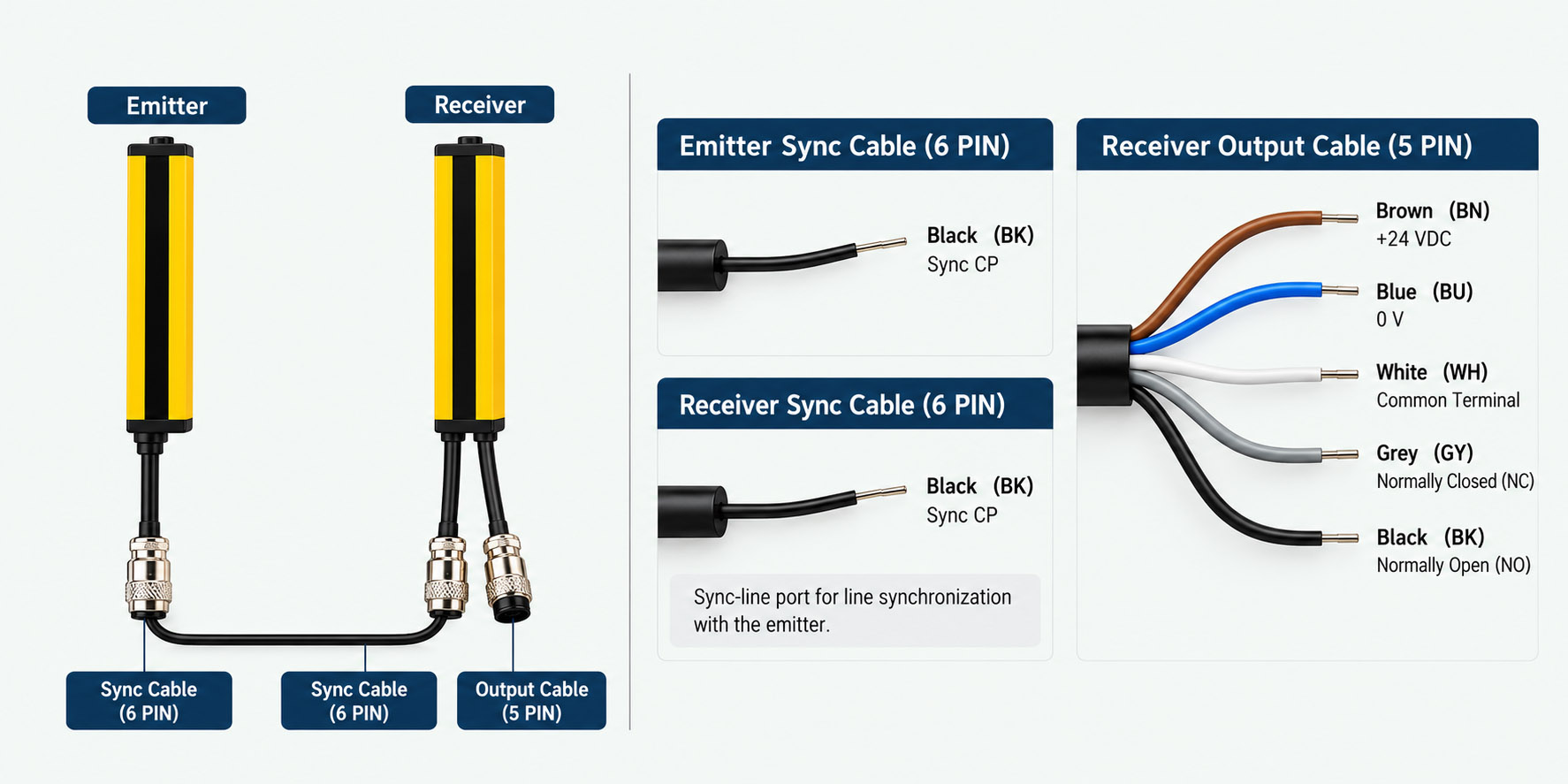

Wire Colour Reference

Port	Function	Wire Colour
Emitter	Sync CP	Black (BK)
Receiver — Port 1	Sync CP	Black (BK)
Receiver — Port 2 (5-wire output port)	+24 VDC	Brown (BN)
	0 V	Blue (BU)
	Common Terminal	White (WH)
	Normally Closed	Grey (GY)
	Normally Open	Black (BK)

Controller Options

The DRM Series can be integrated with dedicated controllers for different machine installation and control requirements.

Two controller configurations are available:

One controller can manage multiple DRM sensor sets, forming multi-face protection such as one-to-two or one-to-three configurations for larger press machines.

Applications

FAQ

Technical information about the DAPPRA DRM-0620-R Relay Safety Light Curtain.
