DAPPRA Industrial Area Sensor & Safety Light Curtain

DPR Series — General-Purpose
Industrial Area Sensor & Safety Light Curtain

The DAPPRA DPR Series is a general-purpose Industrial Area Sensor and Safety Light Curtain series designed for industrial automation, machine detection, machine protection, personnel protection and area detection applications.

The DPR Series uses Multiple Parallel Beam Through-Beam Detection Technology with separate emitter and receiver units. Multiple optical-axis pitch and beam-count configurations are available for different sensing and protection-height requirements.

10 / 20 / 40 mm

Optical-Axis Pitch

<5 ms

Response Time

0.2–3 m

Detection Distance

IP65

Protection Rating

Overview

DPR Series Overview

Key Features

DPR Series Key Features

Engineered for general-purpose industrial detection and machine protection applications.

10 mm / 20 mm / 40 mm Optical-Axis Pitch The DPR Series provides 10 mm, 20 mm and 40 mm optical-axis pitch options for different sensing and protection requirements.
Multiple Beam Configurations Different beam quantities provide different protection heights, allowing users to select the appropriate DPR model for their application.
Fast Response Time Response time is less than 5 ms.
0.2–3 m Detection Distance The DPR Series provides a 0.2–3 m detection distance for industrial equipment applications.
IP65 Protection The DPR Series is designed with IP65 protection for industrial environments.
Line Synchronization The emitter and receiver use line synchronization for coordinated optical-beam operation.

Model Selection

DPR Series Model Selection

Select the appropriate DPR model according to the optical-axis pitch, beam quantity and protection height.

The DPR Series is available in 10 mm, 20 mm and 40 mm optical-axis pitch configurations, with multiple beam quantities, protection heights and total heights for different industrial sensing and protection requirements.

Model Code

DPR – 08 10 – NPN – NC

DPR Series prefix — DAPPRA DPR Series Industrial Area Sensor & Safety Light Curtain.

08 — Beam Quantity Number of optical beams, from 04 to 70 depending on the model.

10 — Optical-Axis Pitch Optical-axis pitch in mm: 10 / 20 / 40.

NPN — Output Type Output transistor type: NPN / PNP (relay output available on selected configurations).

NC — Output Logic NC = Normally Closed; NO = Normally Open.

Field

Meaning

Available Values

DPR

Series prefix

DPR

Beam Quantity

Number of optical beams

04 – 70

Optical-Axis Pitch

Distance between adjacent optical axes

10 / 20 / 40 mm

Output Type

Transistor output configuration

NPN / PNP

Output Logic

Signal logic state

NC / NO

        Example: DPR-0810-NPN-NC = DPR Series, 8 beams, 10 mm optical-axis pitch, NPN output, Normally Closed logic.


Optical Axis Pitch D = 10 mm

Beam Quantity	Protection Height (H) mm	Total Height (L) mm	Model
8	70	128	DPR-0810-NPN-NC
10	90	148	DPR-1010-NPN-NC
12	110	168	DPR-1210-NPN-NC
14	130	188	DPR-1410-NPN-NC
16	150	208	DPR-1610-NPN-NC
18	170	228	DPR-1810-NPN-NC
20	190	248	DPR-2010-NPN-NC
22	210	268	DPR-2210-NPN-NC
24	230	288	DPR-2410-NPN-NC
26	250	308	DPR-2610-NPN-NC
28	270	328	DPR-2810-NPN-NC
30	290	348	DPR-3010-NPN-NC
32	310	368	DPR-3210-NPN-NC
34	330	388	DPR-3410-NPN-NC
36	350	408	DPR-3610-NPN-NC
38	370	428	DPR-3810-NPN-NC
40	390	448	DPR-4010-NPN-NC
42	410	468	DPR-4210-NPN-NC
44	430	488	DPR-4410-NPN-NC
46	450	508	DPR-4610-NPN-NC
48	470	528	DPR-4810-NPN-NC
50	490	548	DPR-5010-NPN-NC
52	510	568	DPR-5210-NPN-NC
54	530	588	DPR-5410-NPN-NC
56	550	608	DPR-5610-NPN-NC
58	570	628	DPR-5810-NPN-NC
60	590	648	DPR-6010-NPN-NC
62	610	668	DPR-6210-NPN-NC
64	630	688	DPR-6410-NPN-NC
66	650	708	DPR-6610-NPN-NC
68	670	728	DPR-6810-NPN-NC
70	690	748	DPR-7010-NPN-NC

Optical Axis Pitch D = 20 mm

Beam Quantity	Protection Height (H) mm	Total Height (L) mm	Model
4	60	128	DPR-0420-NPN-NC
6	100	168	DPR-0620-NPN-NC
8	140	208	DPR-0820-NPN-NC
10	180	248	DPR-1020-NPN-NC
12	220	288	DPR-1220-NPN-NC
14	260	328	DPR-1420-NPN-NC
16	300	368	DPR-1620-NPN-NC
18	340	408	DPR-1820-NPN-NC
20	380	448	DPR-2020-NPN-NC
22	420	488	DPR-2220-NPN-NC
24	460	528	DPR-2420-NPN-NC
26	500	568	DPR-2620-NPN-NC
28	540	608	DPR-2820-NPN-NC
30	580	648	DPR-3020-NPN-NC
32	620	688	DPR-3220-NPN-NC
34	660	728	DPR-3420-NPN-NC
36	700	768	DPR-3620-NPN-NC
38	740	808	DPR-3820-NPN-NC
40	780	848	DPR-4020-NPN-NC
42	820	888	DPR-4220-NPN-NC
44	860	928	DPR-4420-NPN-NC
46	900	968	DPR-4620-NPN-NC
48	940	1008	DPR-4820-NPN-NC
50	980	1048	DPR-5020-NPN-NC
52	1020	1088	DPR-5220-NPN-NC
54	1060	1128	DPR-5420-NPN-NC
56	1100	1168	DPR-5620-NPN-NC
58	1140	1208	DPR-5820-NPN-NC
60	1180	1248	DPR-6020-NPN-NC
62	1220	1288	DPR-6220-NPN-NC
64	1260	1328	DPR-6420-NPN-NC
66	1300	1368	DPR-6620-NPN-NC

Optical Axis Pitch D = 40 mm

Beam Quantity	Protection Height (H) mm	Total Height (L) mm	Model
4	120	208	DPR-0440-NPN-NC
6	200	288	DPR-0640-NPN-NC
8	280	368	DPR-0840-NPN-NC
10	360	448	DPR-1040-NPN-NC
12	440	528	DPR-1240-NPN-NC
14	520	608	DPR-1440-NPN-NC
16	600	688	DPR-1640-NPN-NC
18	680	768	DPR-1840-NPN-NC
20	760	848	DPR-2040-NPN-NC
22	840	928	DPR-2240-NPN-NC
24	920	1008	DPR-2440-NPN-NC
26	1000	1088	DPR-2640-NPN-NC
28	1080	1168	DPR-2840-NPN-NC
30	1160	1248	DPR-3040-NPN-NC
32	1240	1328	DPR-3240-NPN-NC
34	1320	1408	DPR-3440-NPN-NC
36	1400	1488	DPR-3640-NPN-NC
38	1480	1568	DPR-3840-NPN-NC
40	1560	1648	DPR-4040-NPN-NC
42	1640	1728	DPR-4240-NPN-NC
44	1720	1808	DPR-4440-NPN-NC
46	1800	1888	DPR-4640-NPN-NC
48	1880	1968	DPR-4840-NPN-NC
50	1960	2048	DPR-5040-NPN-NC
52	2040	2128	DPR-5240-NPN-NC
54	2120	2208	DPR-5440-NPN-NC
56	2200	2288	DPR-5640-NPN-NC
58	2280	2368	DPR-5840-NPN-NC
60	2360	2448	DPR-6040-NPN-NC
62	2440	2528	DPR-6240-NPN-NC
64	2520	2608	DPR-6440-NPN-NC
66	2600	2688	DPR-6640-NPN-NC

Dimensions

DPR Series Dimensions

The DPR Series uses a compact industrial housing with a confirmed cross section of 29 × 30 mm.

Protection height and total height vary according to the beam quantity and optical-axis pitch of each model.

For complete mechanical dimensions, refer to the corresponding DPR model page and CAD drawing.

Housing Cross Section	29 × 30 mm
Optical-Axis Pitch	10 / 20 / 40 mm
Protection Height	Varies by beam quantity and pitch
Total Height	Varies by beam quantity and pitch
Mounting	Standard / Side / Cantilever
Reference	DPR model page and CAD drawing

Installation

DPR Series Installation

The DPR Series supports multiple installation configurations for different industrial equipment structures.

01 / 03

Standard Mounting

Standard mounting for conventional machine and automation equipment.

02 / 03

Side Mounting

Side mounting for installations where lateral mounting is required.

03 / 03

Cantilever Mounting

Cantilever mounting for applications requiring extended mounting support.

The appropriate mounting configuration should be selected according to the machine structure and available installation space.

Wiring Principle

DPR Series Wiring Principle

The DPR Series supports both NPN and PNP output wiring configurations. Select the wiring method according to the output type of the selected model.

NPN Output Wiring

The NPN output switches the signal line to 0 V (GND) when the optical beam is interrupted. Connect the receiver output to the PLC or controller input configured for NPN (sinking) input, and connect the emitter and receiver to 24 VDC according to the wiring diagram below.

PNP Output Wiring

The PNP output switches the signal line to +24 V when the optical beam is interrupted. Connect the receiver output to the PLC or controller input configured for PNP (sourcing) input, and connect the emitter and receiver to 24 VDC according to the wiring diagram below.

The actual wiring should follow the wiring diagram provided for the selected DPR model.

Accessories

DPR Series Accessories & Mounting Brackets

The DPR Series includes the emitter and receiver as the main sensing components. Connection cables and mounting accessories are used for installation and system connection.

Standard Top & Bottom Mounting Brackets

Used for conventional vertical installation of the emitter and receiver.

Side Mounting Brackets

Used when the sensor needs to be mounted from the side of the machine structure.

Cantilever Brackets

Used for installation configurations requiring extended mounting support.

The exact accessory configuration may vary according to the selected DPR model and mounting requirements.

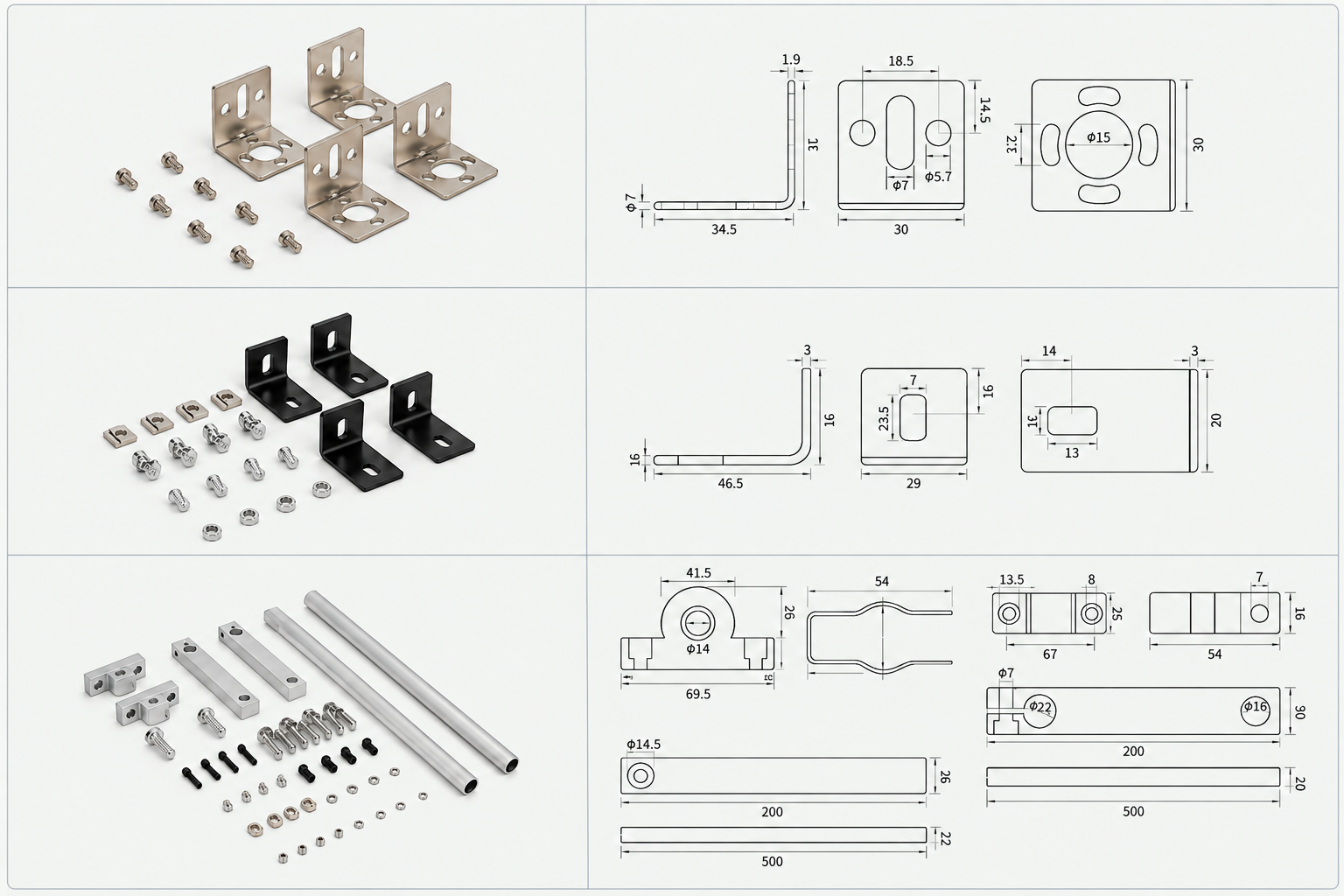

Bracket Dimensions

Mounting Bracket Dimensions

The mounting bracket dimensions and mounting-hole positions should be selected according to the corresponding DPR Series mounting configuration.

For detailed bracket dimensions, refer to the DPR Series mounting drawing or the CAD drawing of the selected model.

Applications

DPR Series Industrial Applications

The DPR Series is suitable for industrial automation, machine area detection, machine protection, personnel protection, object detection, conveyor monitoring, packaging equipment and other automated machinery.

Machine Protection

Personnel Protection

Machine Area Detection

Object Detection

Material Detection

Conveyor Monitoring

Automated Equipment

Packaging Machinery

Cutting Equipment

Hydraulic Machinery

Robotic Equipment

Next Step

Explore the DPR Series

Browse all DPR Series industrial area sensor and safety light curtain products, or return to the Industrial Area Sensor & Safety Light Curtain category page.

View Products Back to Safety Light Curtain

Support

DPR Series FAQ

What is the DAPPRA DPR Series?

The DAPPRA DPR Series is a general-purpose Industrial Area Sensor and Safety Light Curtain series for industrial automation, machine detection, machine protection, personnel protection and area detection applications.

What optical-axis pitches are available in the DPR Series?

The DPR Series provides 10 mm, 20 mm and 40 mm optical-axis pitch configurations.

How do I select a DPR Series model?

Select the appropriate model according to the required optical-axis pitch, beam quantity and protection height.

What is the response time of the DPR Series?

The confirmed DPR Series response time is less than 5 ms.

What is the protection rating of the DPR Series?

The DPR Series uses an IP65 protection configuration.

Does the DPR Series support NPN NC output?

Yes. DAPPRA DPR NPN NC models are available within the DPR Series.

What safety certification does the DPR Series have?

The DPR Series is supported by CE, FCC and RoHS compliance.
