Industrial Area Sensor & Safety Light Curtain — DPB Series
DAPPRA Industrial Area Sensor & Safety Light Curtain
DPB Series — Front Ultra-Thin
Industrial Area Sensor & Safety Light Curtain
The DAPPRA DPB Series is a front ultra-thin Industrial Area Sensor and Safety Light Curtain series designed for applications where installation space is limited.
The DPB Series uses Multiple Parallel Beam Through-Beam Detection Technology with separate emitter and receiver units. Its 14.5 × 28 mm ultra-thin housing makes it suitable for compact machines and space-constrained automation equipment.
20 / 40 mm
Optical-Axis Pitch
≤5 ms
Response Time
0.1–3 m
Detection Distance
IP65
Protection Rating
Overview
DPB Series Overview
The DAPPRA DPB Series is a front ultra-thin Industrial Area Sensor and Safety Light Curtain series designed for applications where installation space is limited.
The DPB Series uses Multiple Parallel Beam Through-Beam Detection Technology with separate emitter and receiver units. Its front ultra-thin housing is only 14.5 mm thick, saving installation space for compact machines and automation equipment.
The series provides 20 mm and 40 mm optical-axis pitch configurations, with beam quantities from 4 up to 200, offering multiple protection heights and total heights for different industrial sensing and protection requirements.
Key Features
DPB Series Key Features
Engineered for space-constrained industrial detection and machine protection applications.
-
Front Ultra-Thin Design The DPB Series features a front ultra-thin housing design for applications where installation space is limited.
-
20 / 40 mm Optical-Axis Pitch The DPB Series provides 20 mm and 40 mm optical-axis pitch options for different sensing and protection requirements.
-
14.5 × 28 mm Compact Housing The DPB Series uses a 14.5 × 28 mm compact aluminum alloy housing, saving installation space on compact machinery.
-
Fast Response Time Response time is ≤5 ms, providing fast and reliable detection for machine protection applications.
-
DC24V ±20% Working Voltage The DPB Series operates on a DC24V ±20% power supply with protection against power overvoltage, reverse polarity and output overcurrent.
-
NPN / PNP Output Options Output transistor type: NPN / PNP, with NC / NO output logic.
-
Line Synchronization The emitter and receiver use line synchronization for coordinated optical-beam operation, improving resistance to optical interference.
-
TYPE 4 Safety Level Designed to meet TYPE 4 safety level requirements with complete self-checking diagnostics and strong electromagnetic interference resistance.
Model Selection
DPB Series Model Selection
Select the appropriate DPB model according to the optical-axis pitch, beam quantity and protection height.
The DPB Series is available in 20 mm and 40 mm optical-axis pitch configurations, with beam quantities from 4 up to 200 and multiple protection heights and total heights for different industrial sensing and protection requirements.
Model Code
DPB
–
04
20
–
NPN
–
NC
DPB
Series prefix — DAPPRA DPB Series Front Ultra-Thin Industrial Area Sensor & Safety Light Curtain.
04 — Beam Quantity
Number of optical beams, from 04 to 200 depending on the model.
20 — Optical-Axis Pitch
Optical-axis pitch in mm: 20 / 40.
NPN — Output Type
Output transistor type: NPN / PNP.
NC — Output Logic
NC = Normally Closed; NO = Normally Open.
Field
Meaning
Available Values
DPB
Series prefix
DPB
Beam Quantity
Number of optical beams
04 – 200
Optical-Axis Pitch
Distance between adjacent optical axes
20 / 40 mm
Output Type
Transistor output configuration
NPN / PNP
Output Logic
Signal logic state
NC / NO
Example: DPB-0420-NPN-NC = DPB Series, 4 beams, 20 mm optical-axis pitch, NPN output, Normally Closed logic.
Optical Axis Pitch D = 20 mm
| Beam Quantity | Protection Height (H) mm | Total Height (L) mm | Model |
|---|---|---|---|
| 4 | 60 | 100 | DPB-0420-NPN-NC |
| 6 | 100 | 165 | DPB-0620-NPN-NC |
| 8 | 140 | 205 | DPB-0820-NPN-NC |
| 10 | 180 | 245 | DPB-1020-NPN-NC |
| 12 | 220 | 285 | DPB-1220-NPN-NC |
| 14 | 260 | 325 | DPB-1420-NPN-NC |
| 16 | 300 | 365 | DPB-1620-NPN-NC |
| 18 | 340 | 405 | DPB-1820-NPN-NC |
| 20 | 380 | 445 | DPB-2020-NPN-NC |
| 22 | 420 | 485 | DPB-2220-NPN-NC |
| 24 | 460 | 525 | DPB-2420-NPN-NC |
| · · · Intermediate beam quantities available from 26 to 198 · · · | |||
| 200 | 3980 | 4045 | DPB-20020-NPN-NC |
20 mm optical-axis pitch models are available with beam quantities from 4 to 200. Intermediate beam quantities from 26 to 198 are available on request. Protection height H = (Beam Quantity − 1) × 20 mm. Total height L = H + 65 mm (for 4-beam models, L = H + 40 mm).
Optical Axis Pitch D = 40 mm
| Beam Quantity | Protection Height (H) mm | Total Height (L) mm | Model |
|---|---|---|---|
| 4 | 120 | 185 | DPB-0440-NPN-NC |
| 6 | 200 | 265 | DPB-0640-NPN-NC |
| 8 | 280 | 345 | DPB-0840-NPN-NC |
| 10 | 360 | 425 | DPB-1040-NPN-NC |
| 12 | 440 | 505 | DPB-1240-NPN-NC |
| 14 | 520 | 585 | DPB-1440-NPN-NC |
| 16 | 600 | 665 | DPB-1640-NPN-NC |
| 18 | 680 | 745 | DPB-1840-NPN-NC |
| 20 | 760 | 825 | DPB-2040-NPN-NC |
| 22 | 840 | 905 | DPB-2240-NPN-NC |
| 24 | 920 | 985 | DPB-2440-NPN-NC |
| · · · Intermediate beam quantities available from 26 to 198 · · · | |||
| 200 | 7960 | 8025 | DPB-20040-NPN-NC |
40 mm optical-axis pitch models are available with beam quantities from 4 to 200. Intermediate beam quantities from 26 to 198 are available on request. Protection height H = (Beam Quantity − 1) × 40 mm. Total height L = H + 65 mm.
Dimensions
DPB Series Dimensions
The DPB Series uses a front ultra-thin industrial housing with a confirmed cross section of 14.5 × 28 mm.
Protection height and total height vary according to the beam quantity and optical-axis pitch of each model.
For complete mechanical dimensions, refer to the corresponding DPB model page and CAD drawing.
| Housing Cross Section | 14.5 × 28 mm |
| Top Cap (A1) | 10 mm |
| Bottom Cap (A2) | 10 mm |
| PCB Upper Blind Zone (B1) | 10 mm |
| PCB Lower Blind Zone (B2) | 10 mm (4 beams @ 20 mm) / 35 mm (other models) |
| Optical-Axis Pitch (D) | 20 / 40 mm |
| Protection Height (H) | (Beam Quantity − 1) × Pitch |
| Total Height (L) | Caps + Blind Zones + Protection Height |
Installation
DPB Series Installation
The DPB Series uses a top and bottom bracket mounting configuration. The emitter and receiver are fixed to the machine frame through the mounting brackets at both ends of the housing.
The DPB Series uses a single mounting configuration: the emitter and receiver are secured by the top and bottom mounting brackets at both ends of the aluminum alloy housing.
Each unit is fixed with the standard bracket set — M4 screws, nuts, washers and spring washers — so the sensor pair can be mounted directly onto compact machines and space-constrained automation equipment.
-
Mounting Position Top and bottom ends of the emitter and receiver housing.
-
Bracket Set Standard top and bottom mounting brackets with M4 screws, nuts, washers and spring washers.
-
Alignment The emitter and receiver must be mounted parallel with the optical axes facing each other, so the beams stay aligned across the detection distance.
-
Installation Space The 14.5 × 28 mm front ultra-thin housing allows mounting where installation space is limited.
Wiring Principle
DPB Series Wiring Principle
The DPB Series supports both NPN and PNP output wiring configurations. Select the wiring method according to the output type of the selected model.
NPN Output Wiring
The NPN output switches the signal line to 0 V (GND) when the optical beam is interrupted. Connect the receiver output to the PLC or controller input configured for NPN (sinking) input. Connect the emitter and receiver to DC24V according to the wiring diagram below.

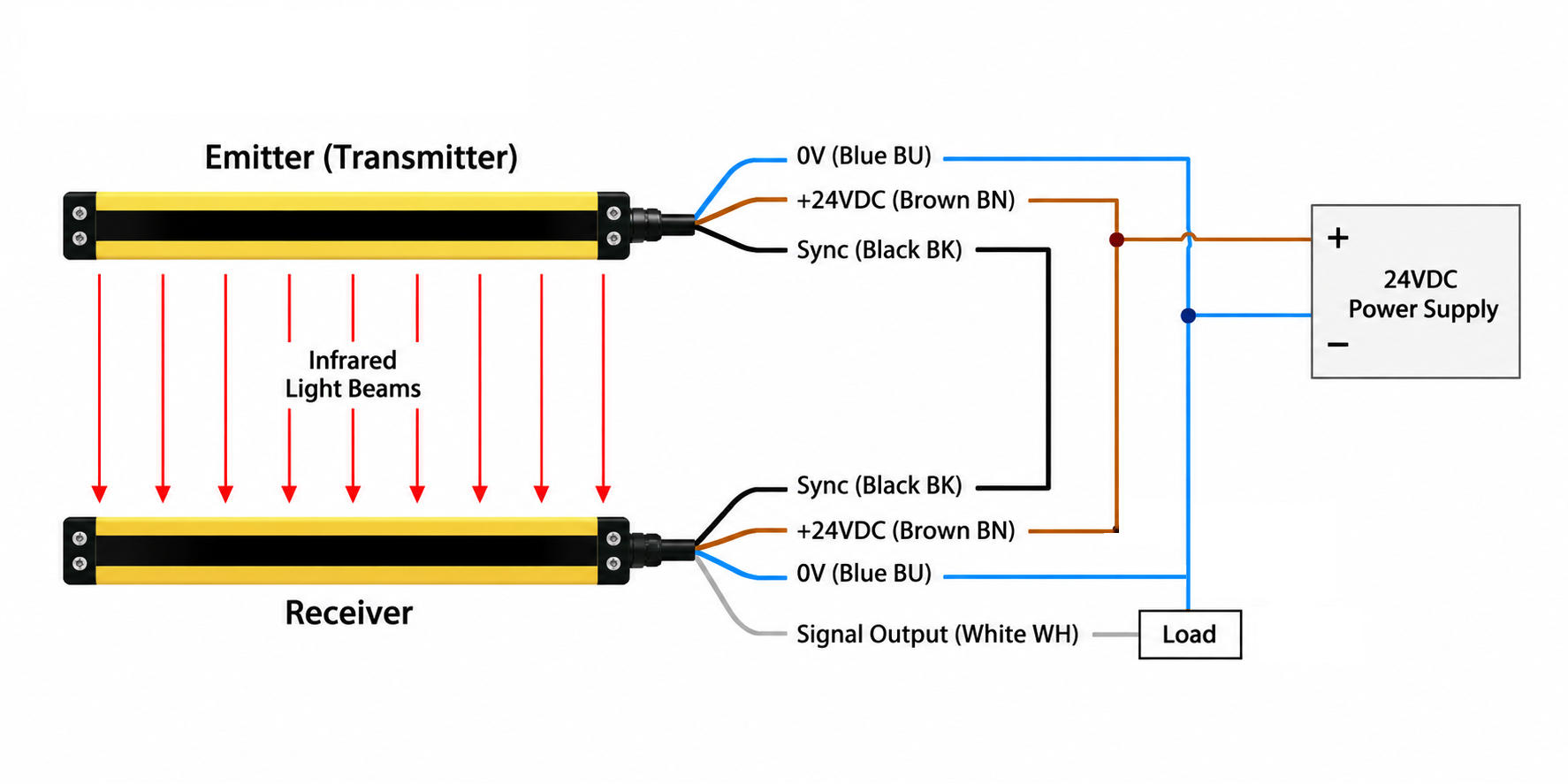

PNP Output Wiring
The PNP output switches the signal line to +24 V when the optical beam is interrupted. Connect the receiver output to the PLC or controller input configured for PNP (sourcing) input. Connect the emitter and receiver to DC24V according to the wiring diagram below.
The actual wiring should follow the wiring diagram provided for the selected DPB model.
Accessories
DPB Series Accessories & Mounting Brackets
The DPB Series includes the emitter and receiver as the main sensing components. Connection cables and mounting accessories are used for installation and system connection.
Emitter & Receiver Set
One set of emitter and receiver units is included as the main sensing components of the DPB Series.
Signal Connection Cables
Two signal connection cables, approximately 2 m each. Custom lengths are available on request.
Top & Bottom Mounting Brackets
Standard mounting brackets with M4 screws, nuts, washers and spring washers for conventional installation.
The exact accessory configuration may vary according to the selected DPB model and mounting requirements.
Applications
DPB Series Industrial Applications
The DPB Series is suitable for industrial automation, machine area detection, machine protection, personnel protection, object detection, conveyor monitoring, packaging equipment and other automated machinery.
Machine Protection
Personnel Protection
Machine Area Detection
Object Detection
Material Detection
Conveyor Monitoring
Automated Equipment
Packaging Machinery
Cutting Equipment
Hydraulic Machinery
Robotic Equipment
Next Step
Explore the DPB Series
Browse all DPB Series front ultra-thin industrial area sensor and safety light curtain products, or return to the Industrial Area Sensor & Safety Light Curtain category page.
Support
DPB Series FAQ
What is the DAPPRA DPB Series?
The DAPPRA DPB Series is a front ultra-thin Industrial Area Sensor and Safety Light Curtain series designed for applications where installation space is limited.
What optical-axis pitches are available in the DPB Series?
The DPB Series provides 20 mm and 40 mm optical-axis pitch configurations.
What is the housing thickness of the DPB Series?
The DPB Series uses a front ultra-thin housing with a confirmed cross section of 14.5 × 28 mm, saving installation space for compact machines.
What is the response time of the DPB Series?
The confirmed DPB Series response time is ≤5 ms.
What is the protection rating of the DPB Series?
The DPB Series uses an IP65 protection configuration with an aluminum alloy housing.
What is the maximum beam quantity of the DPB Series?
The DPB Series supports up to 200 optical beams for both 20 mm and 40 mm optical-axis pitch configurations.
Does the DPB Series support NPN NC output?
Yes. DAPPRA DPB NPN NC models are available within the DPB Series, together with PNP output options.
