DPR-1040-NPN-NC Dimension & Installation Guide: Mounting and Alignment
DAPPRA Automation
Dimension & Installation Guide
DPR-1040-NPN-NC
Safety Light Curtain Area Sensor — Dimension & Installation Guide
1. Dimension and Optical Structure
The DPR-1040-NPN-NC combines a compact mechanical design with a multi-beam infrared detection structure.
The sensor configuration includes:
- 10 optical beams
- 40 mm optical axis pitch
- 10 mm resolution
- 360 mm protection height
- 448 mm total height
- 29 × 30 mm housing cross-section

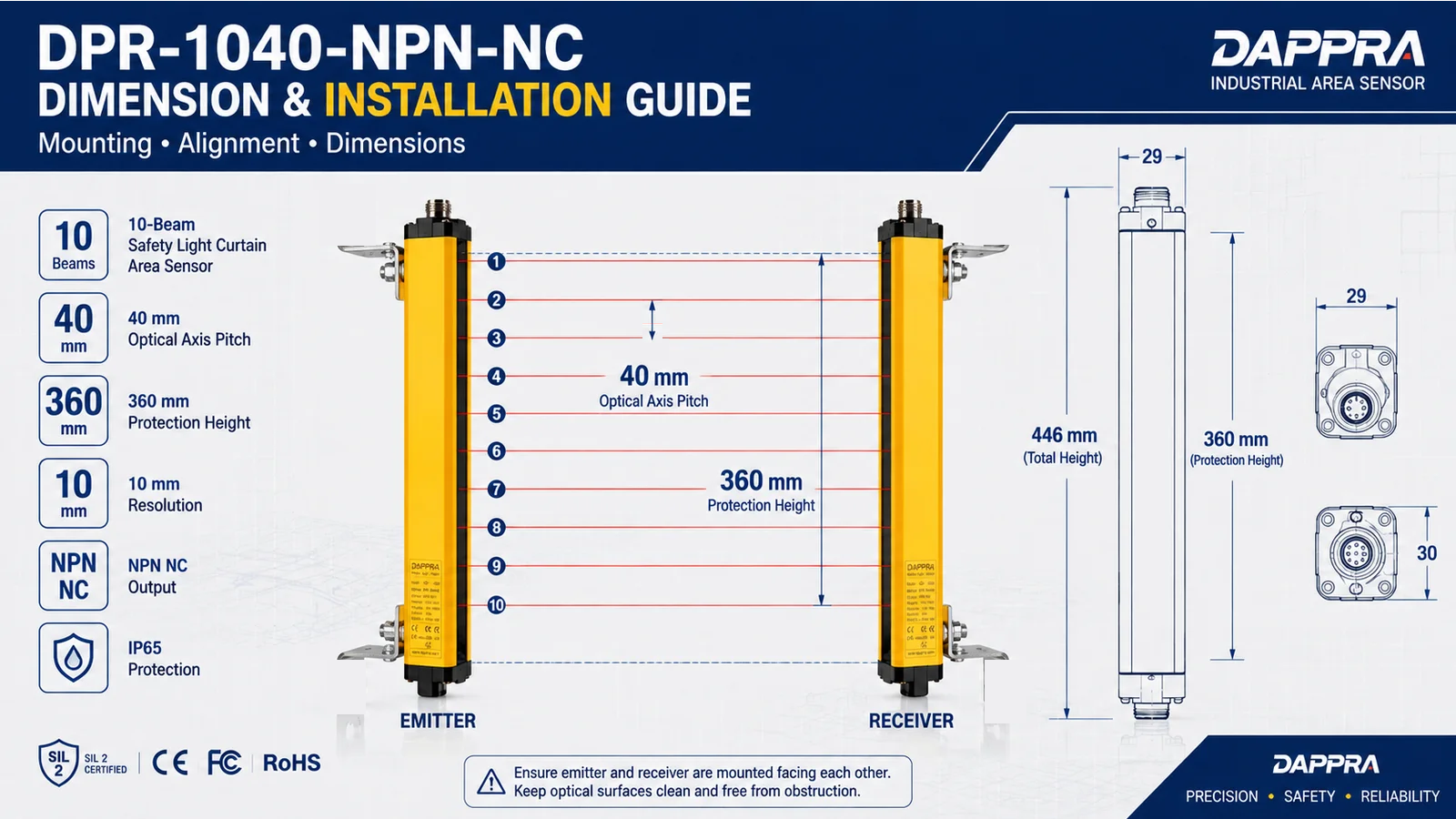

Dimension Drawing
Mechanical Dimensions
| Dimension Parameter | Value (mm) |
|---|---|
| Protection Height | 360 |
| Total Height | 448 |
| Cross Section | 29 × 30 |
| Optical Axis Quantity | 10 |
| Optical Axis Pitch | 40 |
Protection Height Calculation
Protection Height = (Optical Axis Quantity – 1) × Optical Axis Pitch
For DPR-1040-NPN-NC:
(10 – 1) × 40mm = 360mm
NOTE: Protection height is defined as the distance from the center of the first beam to the center of the last beam.
DPR-1040-NPN-NC — Safety Light Curtain Area Sensor
10 beams · 360 mm protection height · 40 mm pitch · 10 mm resolution · NPN NC · IP65 · SIL 2
View Product →2. Installation Methods
The DPR-1040-NPN-NC supports flexible installation methods to adapt to different industrial machine structures.
Installation options include:
- Top and bottom mounting
- Side mounting
- Cantilever installation
2.1 Installation Method 1 — Top and Bottom Mounting
Mounting brackets are fixed to the top and
