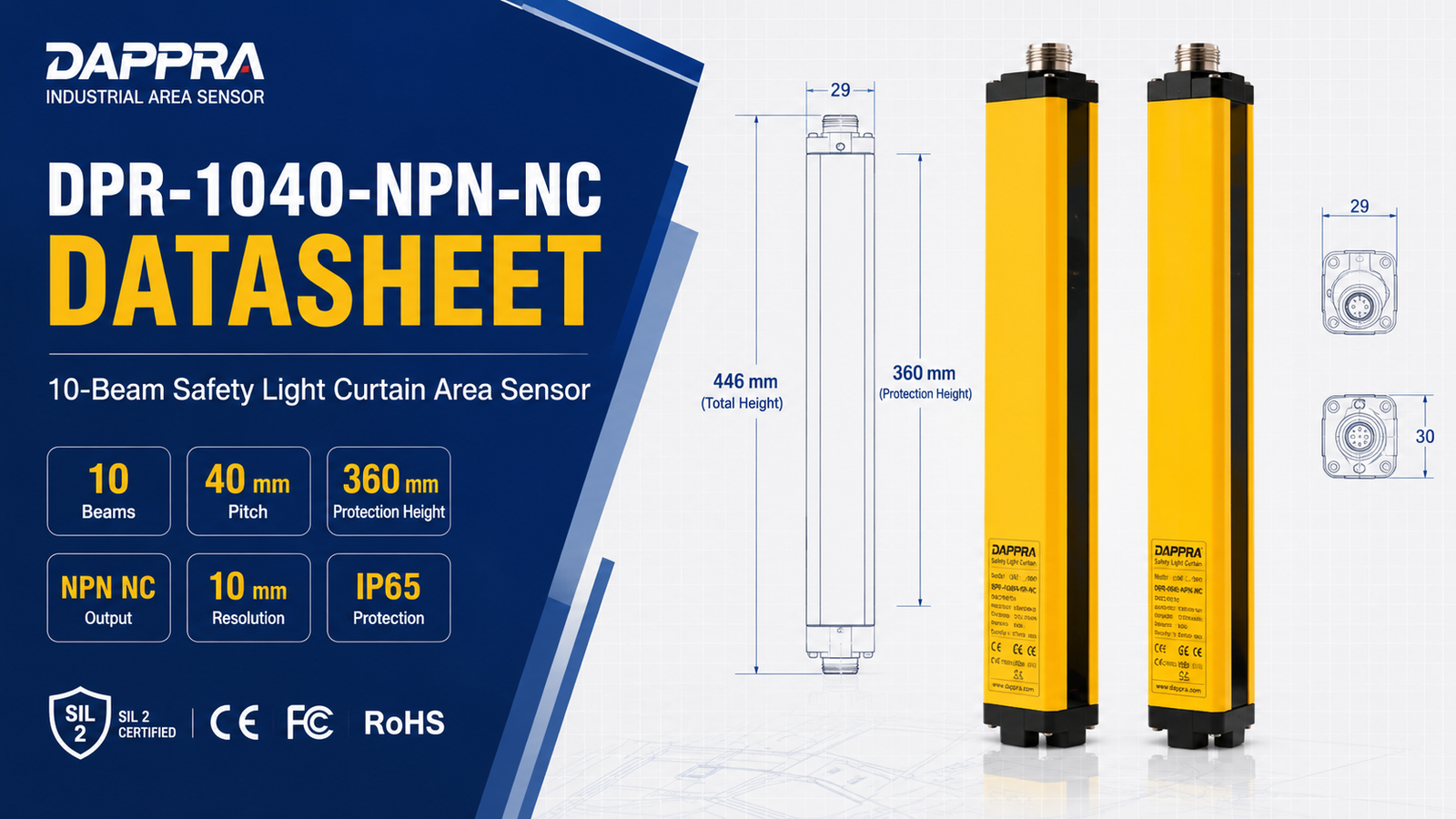

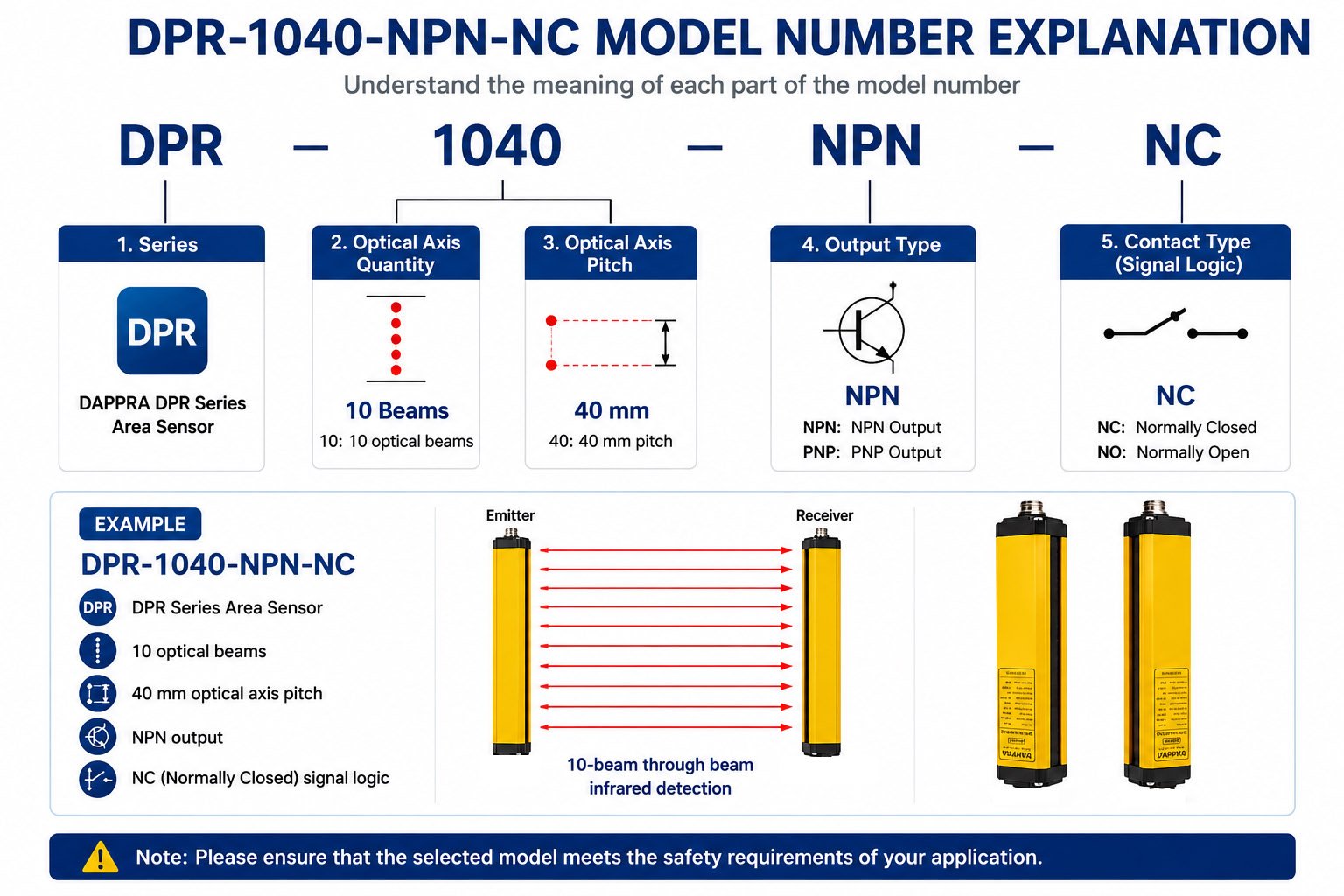

DPR-1040-NPN-NC

Safety Light Curtain Area Sensor — 10 Beams · 40 mm Pitch · 360 mm Protection Height

Product Overview

The DAPPRA DPR-1040-NPN-NC is a Safety Light Curtain Area Sensor with 10 optical beams, 40 mm optical axis pitch and 360 mm protection height. It uses through-beam infrared detection with NPN normally closed (NC) output logic for industrial machine protection and automation applications.

With a 0.5 ms response speed, DC24V ±20% operating voltage and IP65 protection, the DPR-1040-NPN-NC is designed for detecting objects or people entering a defined machine protection area.

Key Specifications

Specification	Value
Optical Beam Quantity	10 Beams
Optical Axis Pitch	40 mm
Protection Height	360 mm
Total Height	448 mm
Resolution	10 mm
Response Speed	0.5 ms
Detection Distance	0.1–3 m
Operating Voltage	DC24V ±20%
Output Type	NPN
Signal Logic	NC (Normally Closed)
Protection Rating	IP65
Housing Size	29 × 30 mm

Key Features

10-Beam Detection Field 10 infrared beams with 40mm optical axis pitch

Fast 0.5ms Response Rapid beam interruption detection

NPN NC Output NPN output with Normally Closed signal logic

IP65 Protection Designed for demanding industrial environments

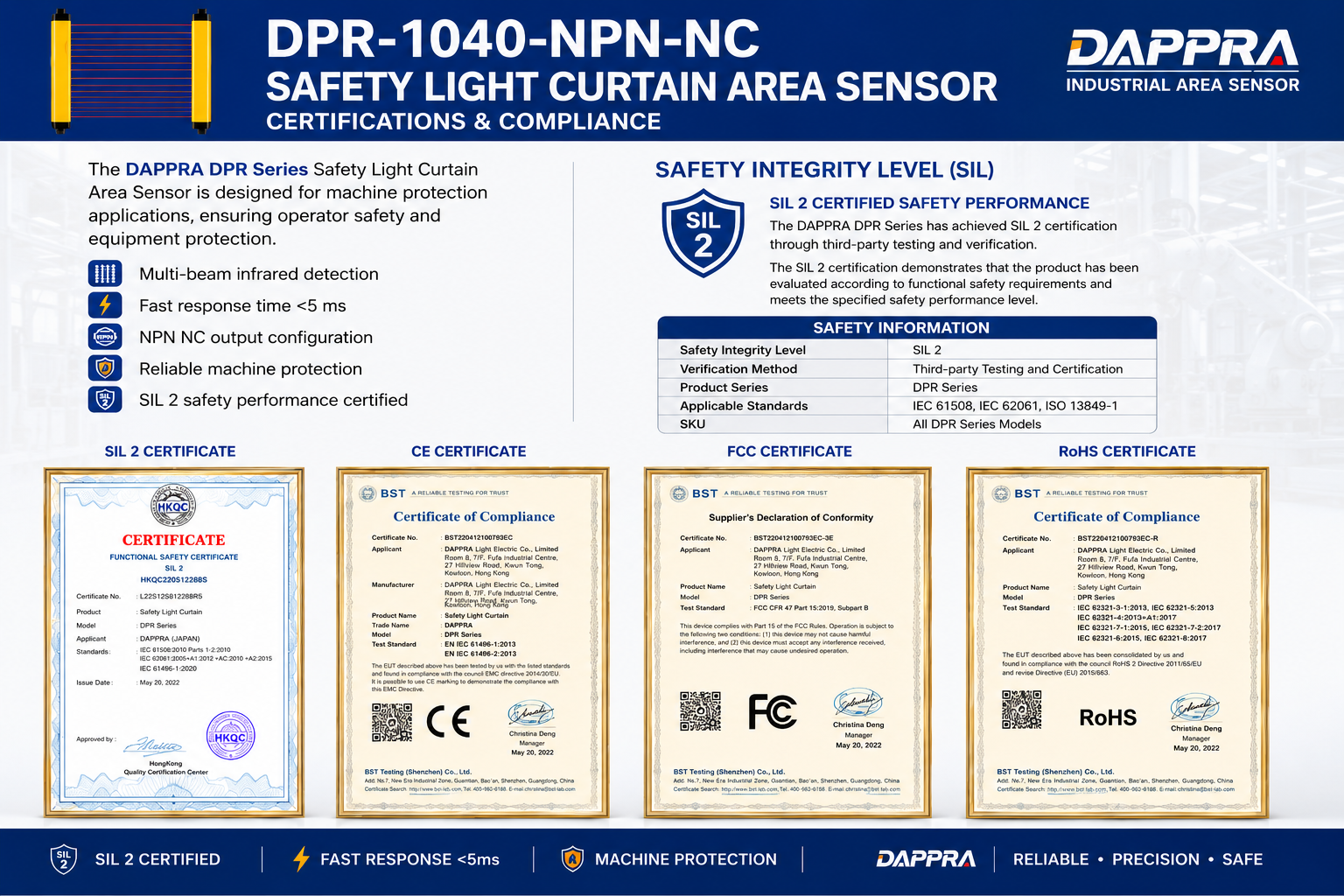

SIL 2 CE FCC RoHS IP65

Technical Specifications

General Specifications

Parameter	Specification
Brand	DAPPRA
Product Series	DPR Series
Product Type	Safety Light Curtain Area Sensor
Detection Type	Through Beam Infrared Detection
Light Source	Infrared LED

Optical & Electrical Specifications

Parameter	Specification
Optical Beam Quantity	10 Beams
Optical Axis Pitch	40 mm
Protection Height	360 mm
Total Height	448 mm
Resolution	10 mm
Detection Distance	0.1–3 m
Operating Voltage	DC24V
Response Speed	0.5 ms
Output Type	NPN
Signal Logic	NC (Normally Closed)
Output Current	≤200 mA
Power Consumption	<5 W

Mechanical & Environmental Specifications

Parameter	Specification
Housing Size	29 × 30 mm
Protection Rating	IP65
Operating Temperature	−10 to 55°C
Relative Humidity	<85% RH at 20°C
Anti-Light Interference	10,000 Lux, incidence angle >5°

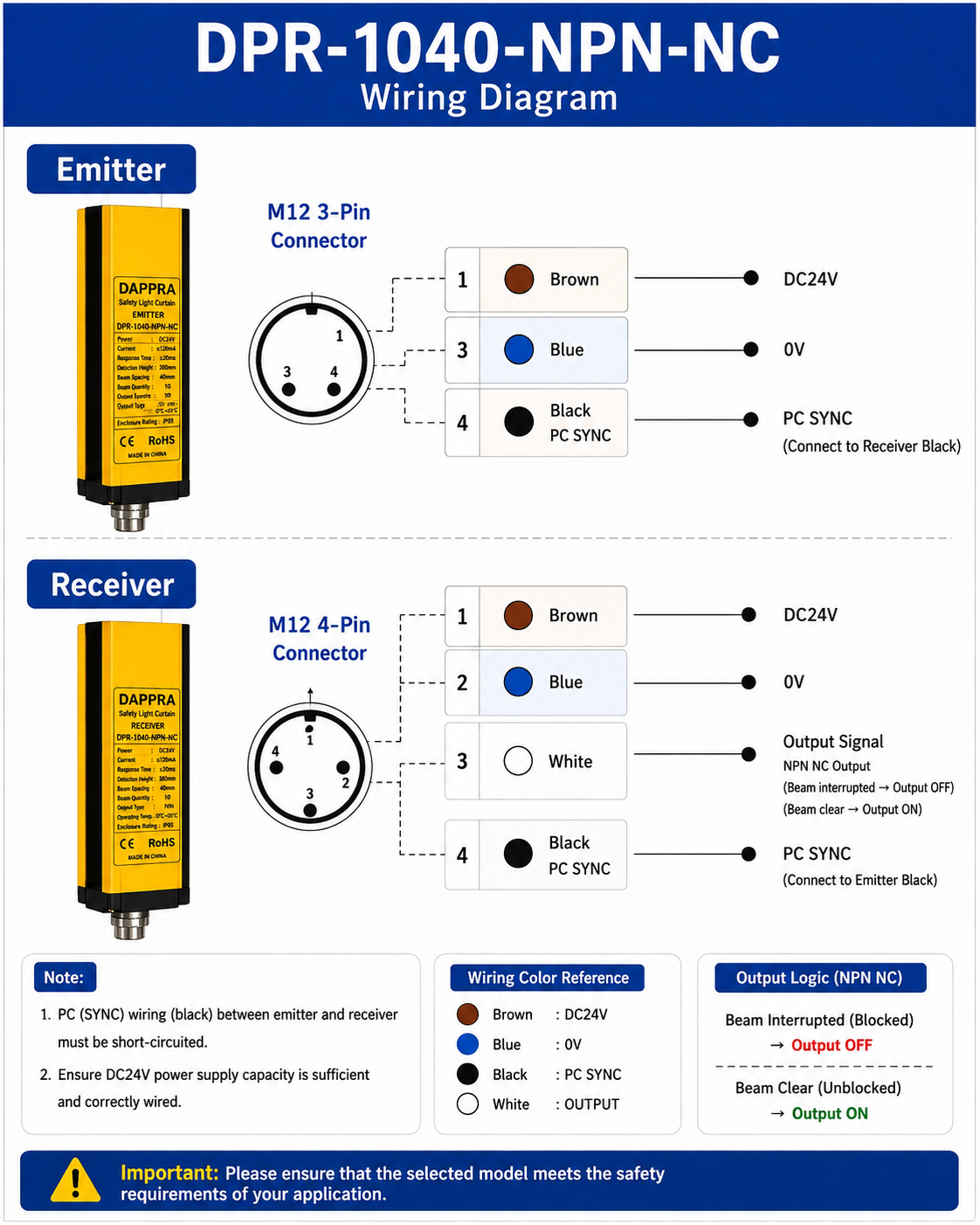

Emitter Connector	M12 3-Pin
Receiver Connector	M12 4-Pin
Cable Length	2 m
