DAPPRA DPR-1040-NPN-NC Safety Light Curtain Area Sensor
Rp1,550,000.00
Tanya dulu via WhatsApp
DAPPRA DPR-1040-NPN-NC is a 10-beam industrial area sensor with 40 mm optical axis pitch and 360 mm protection height. 10 mm resolution, fast response time 0.5 ms, IP65 protection, NPN NC output, ideal for machine protection and industrial automation.
Share:
DAPPRA DPR-1040-NPN-NC Safety Light Curtain Area Sensor
10-Beam Through-Beam Infrared Detection for Industrial Machine Protection

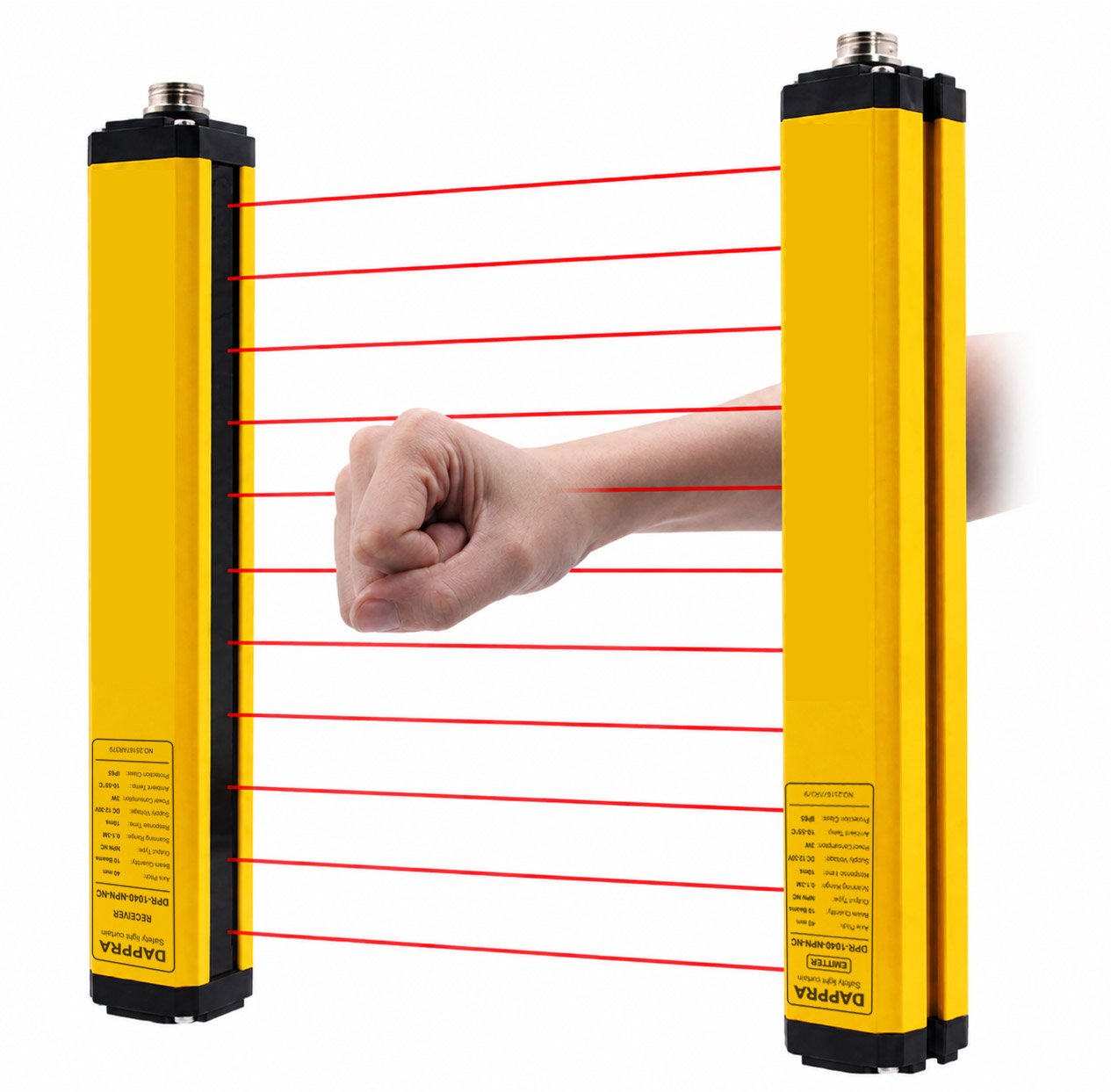

The DAPPRA DPR-1040-NPN-NC is a Safety Light Curtain Area Sensor with 10 optical beams, 40 mm optical axis pitch and 360 mm protection height. It uses through-beam infrared detection with NPN normally closed (NC) output logic for industrial machine protection and automation applications.
With a 0.5 ms response speed, DC24V ±20% operating voltage and IP65 protection, the DPR-1040-NPN-NC is designed for detecting objects or people entering a defined machine protection area.
Key Specifications
| Specification | Value |
|---|---|
| Optical Beam Quantity | 10 Beams |
| Optical Axis Pitch | 40 mm |
| Protection Height | 360 mm |
| Total Height | 446 mm |
| Resolution | 10 mm |
| Response Speed | 0.5 ms |
| Detection Distance | 0.1–3 m |
| Operating Voltage | DC24V ±20% |
| Output Type | NPN |
| Signal Logic | NC (Normally Closed) |
| Protection Rating | IP65 |
| Housing Size | 29 × 30 mm |
What Is a Safety Light Curtain?
A safety light curtain is a non-contact machine protection device that uses multiple infrared beams to create a defined detection area. When an object or person interrupts the beams, the sensor detects the interruption and sends an output signal to the machine control system.
Unlike a single-point photoelectric sensor, a safety light curtain creates multiple detection points across a defined protection height, allowing it to monitor a larger access area around industrial machinery.
The DAPPRA DPR Series uses through-beam infrared detection with a separate emitter and receiver to create the detection area.
What Is a Safety Light Curtain Used For?
A safety light curtain is used to monitor access to hazardous areas around industrial machinery without requiring physical contact.
Typical applications include:
- Automated production lines
- Conveyor systems
- CNC machines
- Press machines
- Press brake equipment
- Injection molding machinery
- Cutting equipment
- Welding lines
- Automated assembly equipment
- Material handling equipment
- Industrial machinery protection

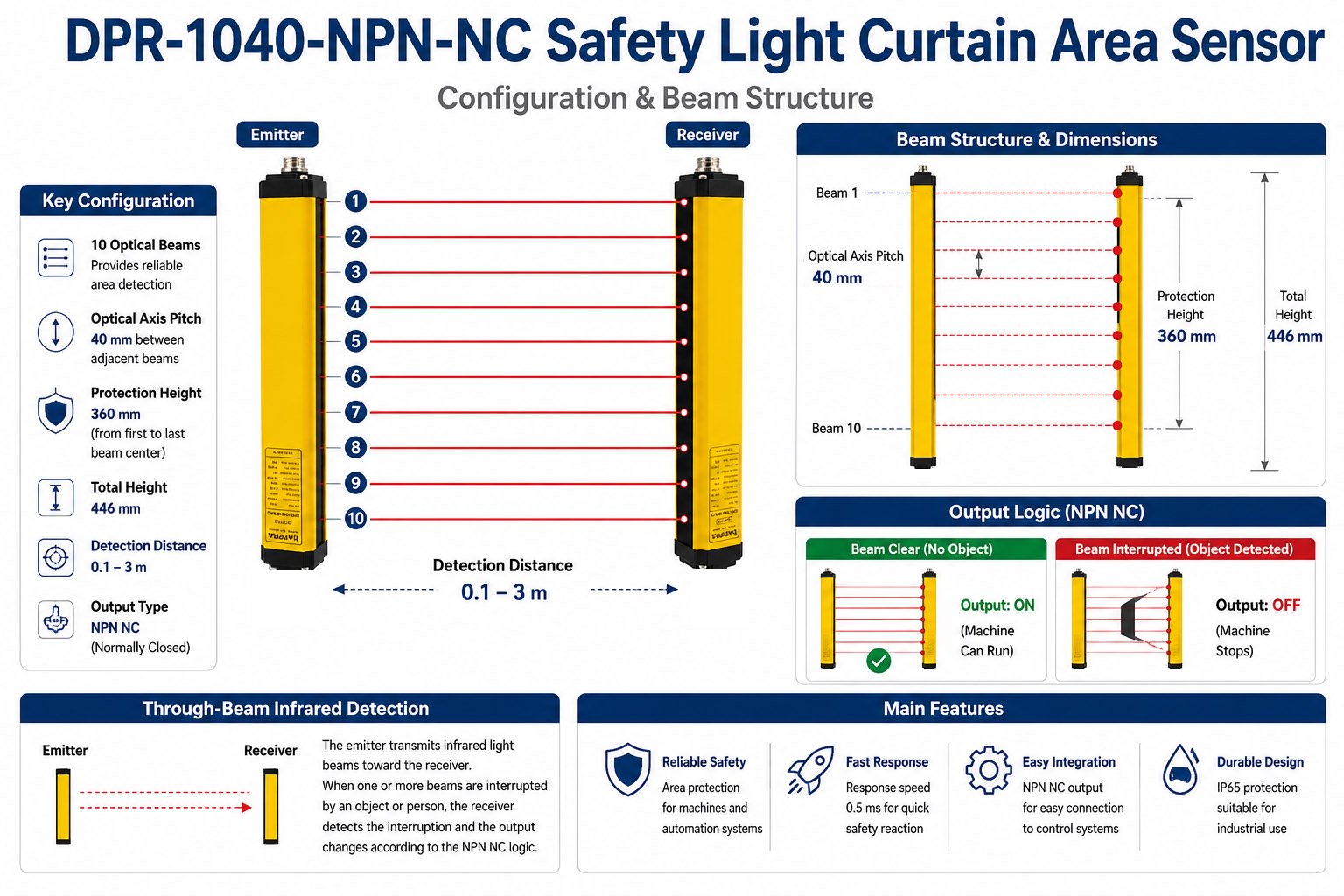

The DPR-1040-NPN-NC provides a 360 mm protection height using 10 infrared optical beams with a 40 mm optical axis pitch.
What Is a Safety Light Curtain Safety Sensor?
A safety light curtain is a non-contact safety sensor that uses multiple infrared beams to detect objects or people entering a protected area.
The DPR-1040-NPN-NC consists of an emitter and receiver. The emitter generates parallel infrared beams, while the receiver monitors whether the beams are continuously received.
When one or more beams are interrupted, the receiver detects the interruption and changes the output state according to the NPN NC signal logic.
Safety Light Curtain vs Standard Photoelectric Sensor
A standard photoelectric sensor generally detects an object at a defined sensing point or sensing area. A safety light curtain uses multiple infrared beams arranged across a defined protection height to monitor access to a larger machine area.
The DPR-1040-NPN-NC uses a separate emitter and receiver to create a multi-beam infrared detection field with 10 optical beams and a 360 mm protection height.

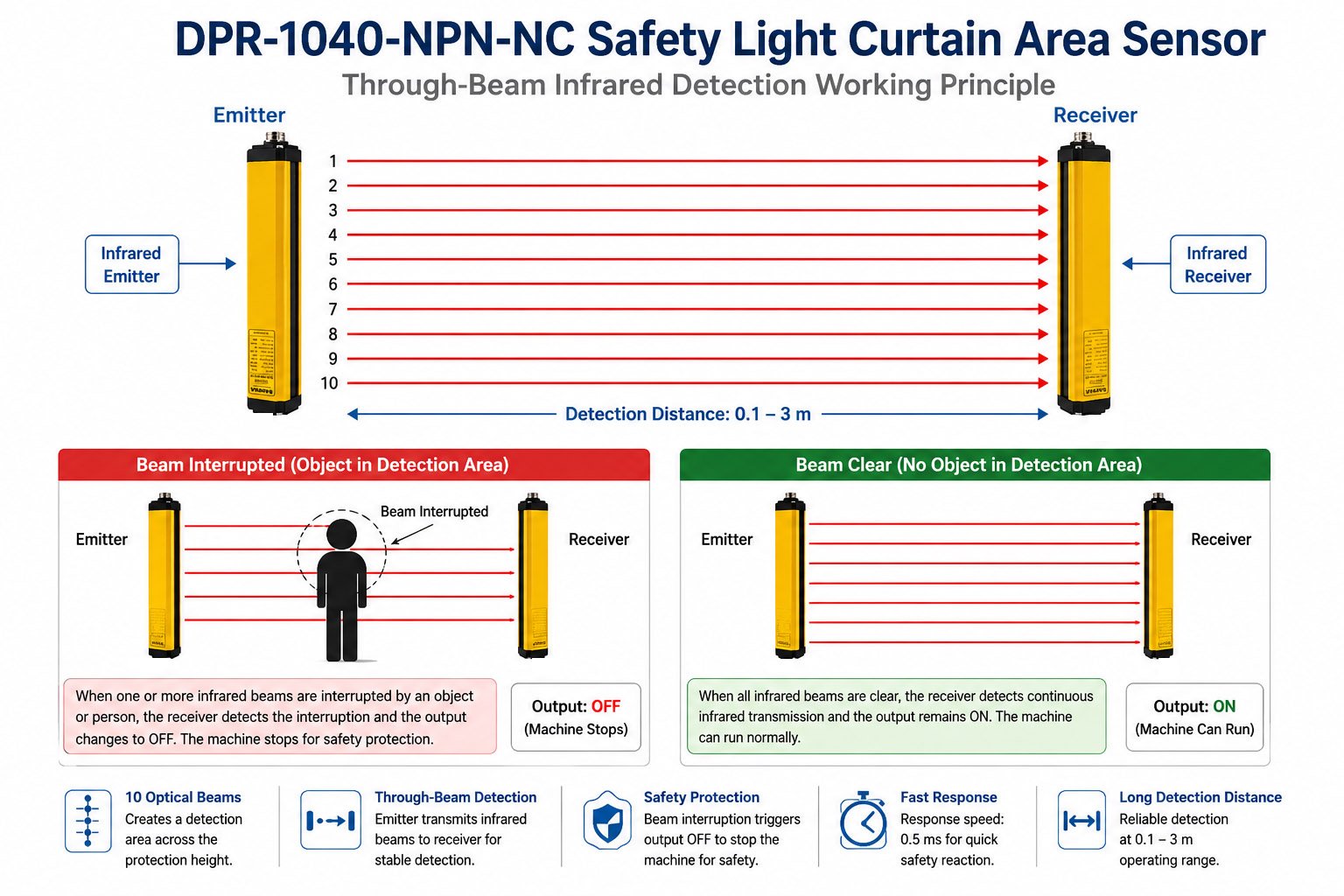

How Does a Safety Light Curtain Work?
Through-Beam Infrared Detection
The DPR-1040-NPN-NC uses an infrared LED emitter and receiver to form 10 parallel infrared beams.
The emitter transmits infrared light toward the receiver. When an object or person enters the detection area and interrupts one or more beams, the receiver detects the interruption and switches the output state.
When all beams are clear, the receiver detects continuous infrared transmission and maintains the normal output condition.
Detection Logic
- Beam Clear → Output ON
- Beam Interrupted → Output OFF
Safety Light Curtain Types
Safety light curtains can be configured according to optical axis pitch, protection height, output configuration and signal logic.
Common configurations include:
- Different optical axis pitch configurations
- Different optical beam quantities
- Different protection height configurations
- NPN or PNP output configurations
- Normally Closed (NC) or Normally Open (NO) signal logic
- Different installation configurations
The DAPPRA DPR Series uses a through-beam infrared detection structure with a separate emitter and receiver.
DPR-1040-NPN-NC Product Overview
The DPR-1040-NPN-NC is an industrial Safety Light Curtain Area Sensor using an emitter and receiver to create multiple parallel infrared detection beams.
With 10 optical beams distributed at a 40 mm optical axis pitch, the sensor provides a 360 mm protection height within a 446 mm total sensor height.
The DPR-1040-NPN-NC uses NPN NC output logic and is designed for integration into industrial automation and machine protection systems.
DPR-1040-NPN-NC Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | DAPPRA |
| Product Series | DPR Series |
| Product Type | Safety Light Curtain Area Sensor |
| Detection Type | Through Beam Infrared Detection |
| Light Source | Infrared LED |
| Optical Beam Quantity | 10 Beams |
| Optical Axis Pitch | 40 mm |
| Protection Height | 360 mm |
| Total Height | 446 mm |
| Resolution | 10 mm |
| Detection Distance | 0.1–3 m |
| Operating Voltage | DC24V |
| Response Speed | 0.5 ms |
| Output Type | NPN |
| Signal Logic | NC (Normally Closed) |
| Output Current | ≤200 mA |
| Power Consumption | <5 W |
| Housing Size | 29 × 30 mm |
| Protection Rating | IP65 |
| Operating Temperature | −10 to 55°C |
| Relative Humidity | <85% RH at 20°C |
| Anti-Light Interference | 10,000 Lux, incidence angle >5° |
| Dielectric Strength | AC1500V, 60s, no breakdown or flashover |
| Insulation Resistance | ≥100 MΩ |
| Emitter Connector | M12 3-Pin |
| Receiver Connector | M12 4-Pin |
| Cable Length | 2 m |
| Safety Standard | IEC 61508 |
| Safety Integrity Level | SIL 2 |
| Certifications | SIL 2, CE, FCC, RoHS |
Protection Height vs Total Height
Protection height and total height describe different physical dimensions of the DPR-1040-NPN-NC.
Protection height is the effective height of the optical detection field, measured from the center of the first optical beam to the center of the last optical beam.
Total height is the complete physical height of the sensor.
For the DPR-1040-NPN-NC:
| Dimension | Value |
|---|---|
| Protection Height | 360 mm |
| Total Height | 446 mm |
The difference between these dimensions accounts for the physical sections of the sensor outside the effective optical beam field.
Optical Axis Pitch vs Resolution
Optical axis pitch and resolution describe different characteristics of the sensor.
Optical axis pitch is the distance between the centers of adjacent optical beams.
Resolution is the specified detection capability of the sensor.
For the DPR-1040-NPN-NC:
| Parameter | Value |
|---|---|
| Optical Axis Pitch | 40 mm |
| Resolution | 10 mm |
The DPR-1040-NPN-NC therefore combines a 40 mm optical axis pitch with a specified 10 mm resolution.
What Does NPN NC Mean?
NPN refers to the transistor output configuration of the sensor.
NC means Normally Closed signal logic.
For the DPR-1040-NPN-NC, the output is ON when the infrared detection field is clear. When a detection beam is interrupted, the output changes to OFF.
NPN NC Signal Logic
- Beam Clear → Output ON
- Beam Interrupted → Output OFF
DPR-1040-NPN-NC Mechanical Dimensions
The DPR-1040-NPN-NC has:
- 360 mm protection height
- 446 mm total height
- 40 mm optical axis pitch
- 29 × 30 mm housing size
Protection Height Calculation
How to Select a Safety Light Curtain?
Selecting a safety light curtain requires considering the required detection area, protection height, optical axis pitch, detection distance, resolution, output configuration and installation requirements.
1. Determine Protection Height
Protection height defines the effective height of the infrared detection area.
The DPR-1040-NPN-NC provides a 360 mm protection height.
2. Select Optical Axis Pitch
Optical axis pitch determines the spacing between adjacent infrared beam centers.
The DPR-1040-NPN-NC uses a 40 mm optical axis pitch.
3. Determine Detection Distance
The required distance between the emitter and receiver should be within the specified detection distance.
The DPR-1040-NPN-NC has a detection distance of 0.1–3 m.
4. Check Resolution
Resolution defines the specified detection capability of the sensor.
The DPR-1040-NPN-NC has 10 mm resolution.
5. Select Output Type
The DPR Series includes NPN and PNP output configurations.
The DPR-1040-NPN-NC uses NPN output.
6. Select Signal Logic
The DPR Series supports different signal logic configurations.
The DPR-1040-NPN-NC uses NC (Normally Closed) signal logic.
7. Confirm Operating Voltage
The DPR-1040-NPN-NC operates at DC24V.
8. Confirm Installation Requirements
Select the appropriate mounting configuration according to the machine structure and available installation space.
The DPR Series supports top and bottom mounting, side mounting and cantilever mounting.
How to Choose a DPR Series Model?
DAPPRA DPR Series models can be selected according to the required optical beam quantity, optical axis pitch, protection height, output type and signal logic.
For DPR Series selection, engineers should first determine the required protection height and optical axis pitch, then confirm the required output configuration and signal logic.
The DPR-1040-NPN-NC provides:
- 10 optical beams
- 40 mm optical axis pitch
- 360 mm protection height
- NPN output
- NC signal logic
The DPR Series Model Selection Table provides a direct comparison of available configurations.
DAPPRA DPR Series Area Sensor Model Selection Table
The DAPPRA DPR Series includes multiple Industrial Area Sensor configurations with different beam quantities, optical axis pitches, protection heights, output types and signal logic options.
The following table helps engineers select the appropriate DPR Series model according to application requirements.
| Model | Beam Quantity | Optical Axis Pitch | Protection Height | Total Height | Output Type | Signal Logic |
|---|---|---|---|---|---|---|
| DPR-0440-NPN-NC | 4 Beams | 40mm | 120mm | 208mm | NPN | NC |
| DPR-0640-NPN-NC | 6 Beams | 40mm | 200mm | 288mm | NPN | NC |
| DPR-0840-NPN-NC | 8 Beams | 40mm | 280mm | 368mm | NPN | NC |
| DPR-1040-NPN-NC | 10 Beams | 40mm | 360mm | 448mm | NPN | NC |
| DPR-1240-NPN-NC | 12 Beams | 40mm | 440mm | 528mm | NPN | NC |
| DPR-1440-NPN-NC | 14 Beams | 40mm | 520mm | 608mm | NPN | NC |
| DPR-1640-NPN-NC | 16 Beams | 40mm | 600mm | 688mm | NPN | NC |
DPR-1040-NPN-NC Model Number Description
| Model Element | Meaning |
|---|---|
| DPR | DAPPRA DPR Series Area Sensor |
| 10 | 10 optical beams |
| 40 | 40 mm optical axis pitch |
| NPN | NPN output |
| NC | Normally Closed signal logic |
DPR-1040-NPN-NC — 10 optical beams + 40 mm optical axis pitch + NPN output + NC signal logic
DPR-1040-NPN-NC Safety Light Curtain Wiring
The DPR-1040-NPN-NC uses an M12 3-pin connector for the emitter and an M12 4-pin connector for the receiver.
Emitter Wiring
| Pin | Wire Color | Function |
|---|---|---|
| Pin 1 | Brown | DC24V |
| Pin 3 | Blue | 0V |
| Pin 4 | Black | PC SYNC |
Receiver Wiring
| Pin | Wire Color | Function |
|---|---|---|
| Pin 1 | Brown | DC24V |
| Pin 2 | Blue | 0V |
| Pin 3 | White | NPN NC Output |
| Pin 4 | Black | PC SYNC |
PC SYNC Connection
Emitter Black → Receiver Black
The PC SYNC wiring between the emitter and receiver must be connected according to the wiring diagram.
NPN NC Output Logic
- Beam Clear → Output ON
- Beam Interrupted → Output OFF
DPR-1040-NPN-NC Installation Guide
The DPR Series supports multiple installation methods to meet different application requirements.
Top and Bottom Mounting
Mounting brackets are fixed to the top and bottom ends of the sensor.
Side Mounting
Mounting brackets are fixed to both sides of the sensor.
Cantilever Mounting
Cantilever brackets provide adjustable and flexible installation and are sold separately.
Emitter and Receiver Mounting
Emitter Mounting: Fix the emitter securely using the mounting brackets.
Receiver Mounting: Fix the receiver securely using the mounting brackets.
The emitter and receiver should be securely mounted and positioned facing each other.
Emitter and Receiver Alignment
The emitter and receiver must be correctly aligned so that the infrared beams are received by the receiver.
After mounting, verify the complete detection area before connecting the sensor to the machine control system.
- All beams clear → Output ON
- Beam interrupted → Output OFF
Safety Light Curtain Installation Reference
The protection height and detection distance should be selected according to the machine structure and required protection area.
The emitter and receiver should be installed at the required protection height and aligned across the protected area.

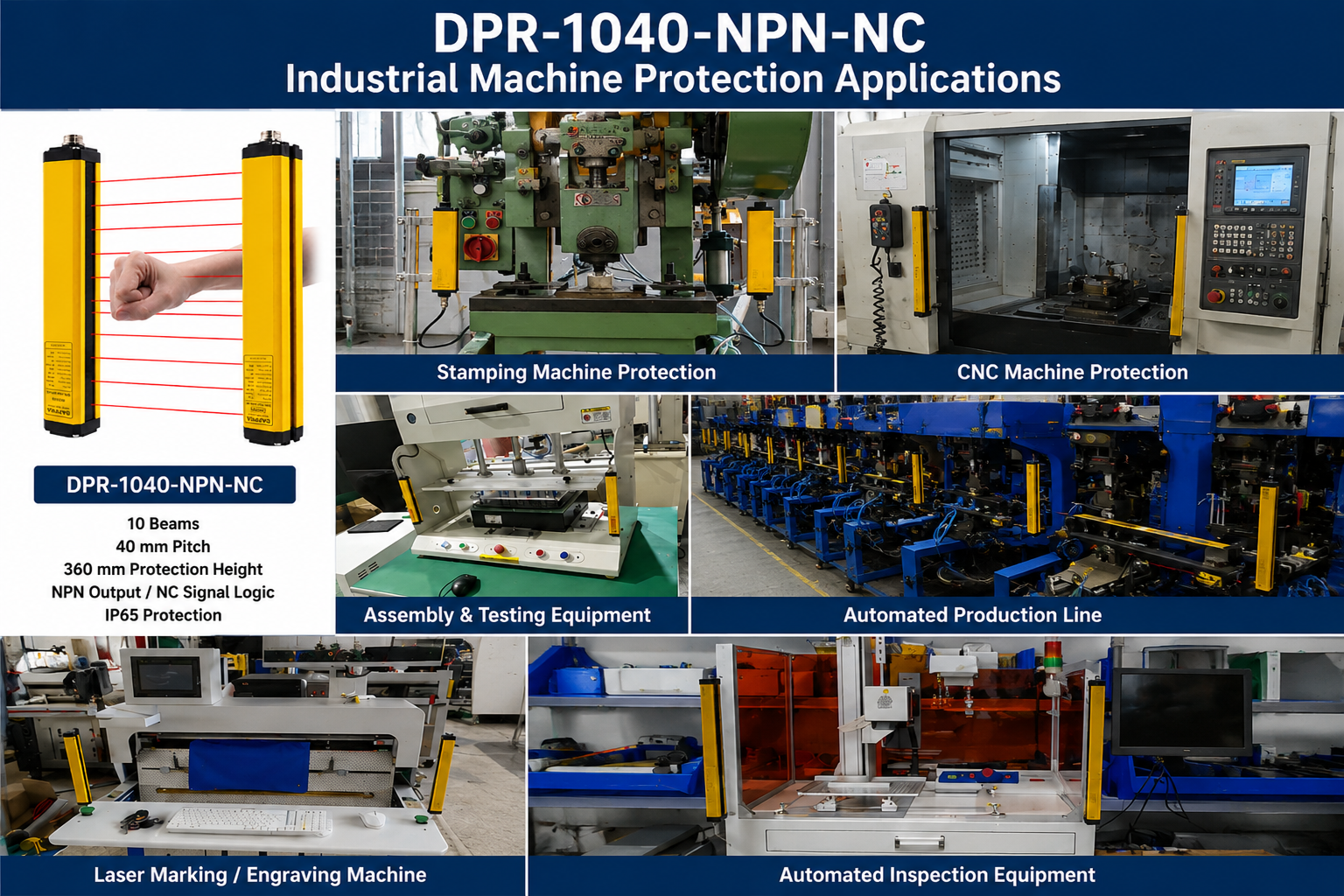

Safety Light Curtain Applications
The DPR-1040-NPN-NC is designed for industrial machine protection and automation applications requiring non-contact infrared area detection.
Typical applications include:
- CNC machine protection
- Press machine protection
- Conveyor systems
- Automated production lines
- Injection molding equipment
- Cutting machinery
- Welding equipment
- Automated assembly equipment
- Material handling systems
- Industrial machinery
Safety and Certifications
The DPR-1040-NPN-NC is supplied with SIL 2, CE, FCC and RoHS certification.
The safety specification references IEC 61508.
Certifications
- SIL 2
- IEC 61508
- CE
- FCC
- RoHS
DAPPRA Automation Manufacturing and Quality Assurance
The DPR Series is produced by DAPPRA Automation's own manufacturing facility.
DAPPRA provides industrial automation products with production control and quality inspection processes.
Quality Assurance Process
- Factory Quality Control
- 100% Product Inspection
- Functional Testing
- Incoming Material Inspection
- Aging Test
- Final Inspection

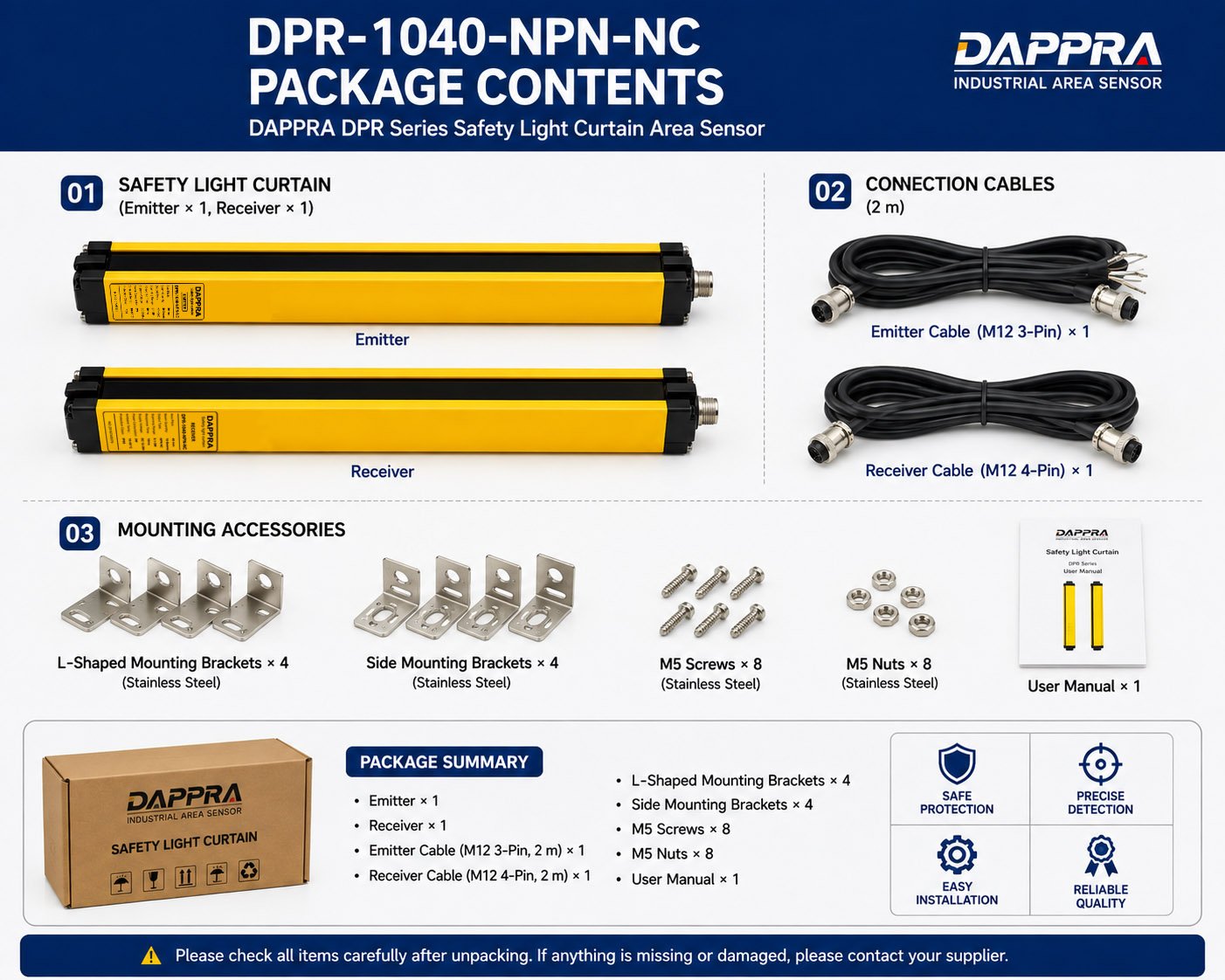

DPR-1040-NPN-NC Package Contents
The DPR-1040-NPN-NC standard package includes the emitter and receiver pair, connection cables and mounting accessories.
Standard Configuration
- 1 × Emitter
- 1 × Receiver
- 2 m connection cables
- M12 connection
- Mounting accessories
DPR-1040-NPN-NC Technical Resources
DAPPRA provides technical documents to support product selection, installation and engineering integration.
DPR-1040-NPN-NC Datasheet
Complete technical specifications, electrical parameters, dimensions and product information.
DPR-1040-NPN-NC Light Curtain Manual
Installation reference information including mounting, alignment and wiring guidance.
DPR-1040-NPN-NC CAD Drawing
Engineering drawing information for mechanical integration, mounting design and equipment layout.
FAQ
The DPR-1040-NPN-NC is a DAPPRA Safety Light Curtain Area Sensor with 10 optical beams, 40 mm optical axis pitch and 360 mm protection height. It uses NPN normally closed (NC) signal logic for industrial machine protection and automation applications.
The DPR-1040-NPN-NC has 10 optical beams.
The optical axis pitch of the DPR-1040-NPN-NC is 40 mm.
The protection height of the DPR-1040-NPN-NC is 360 mm, measured from the center of the first optical beam to the center of the last optical beam.
The total height of the DPR-1040-NPN-NC is 446 mm.
The specified detection distance of the DPR-1040-NPN-NC is 0.1–3 m.
The DPR-1040-NPN-NC uses NPN output with NC (Normally Closed) signal logic.
The specified response speed of the DPR-1040-NPN-NC is 0.5 ms.
The DPR-1040-NPN-NC operates at DC24V.
The DPR-1040-NPN-NC has an IP65 protection rating.
The emitter uses an M12 3-pin connector, and the receiver uses an M12 4-pin connector.
The supplied connection cable length is 2 m.
The DPR-1040-NPN-NC is supplied with SIL 2, CE, FCC and RoHS certification. The safety specification references IEC 61508.
The DPR Series supports top and bottom mounting, side mounting and cantilever mounting.
When an infrared beam is interrupted, the receiver detects the interruption and the NPN NC output changes to OFF. When all beams are clear, the output is ON.
Need Technical Support or a Quote?
Contact DAPPRA Automation for engineering assistance, pricing, or OEM/ODM inquiries.
Related Technical Articles
2 reviews for DAPPRA DPR-1040-NPN-NC Safety Light Curtain Area Sensor
Only logged in customers who have purchased this product may leave a review.
Mungkin Anda suka
Related Technical Articles
DAPPRA DPR-1040-NPN-NC Safety Light Curtain Area Sensor
10-Beam Through-Beam Infrared Detection for Industrial Machine Protection
The DAPPRA DPR-1040-NPN-NC is a Safety Light Curtain Area Sensor with 10 optical beams, 40 mm optical axis pitch and 360 mm protection height. It uses through-beam infrared detection with NPN normally closed (NC) output logic for industrial machine protection and automation applications.
With a 0.5 ms response speed, DC24V ±20% operating voltage and IP65 protection, the DPR-1040-NPN-NC is designed for detecting objects or people entering a defined machine protection area.
Key Specifications
| Specification | Value |
|---|---|
| Optical Beam Quantity | 10 Beams |
| Optical Axis Pitch | 40 mm |
| Protection Height | 360 mm |
| Total Height | 446 mm |
| Resolution | 10 mm |
| Response Speed | 0.5 ms |
| Detection Distance | 0.1–3 m |
| Operating Voltage | DC24V ±20% |
| Output Type | NPN |
| Signal Logic | NC (Normally Closed) |
| Protection Rating | IP65 |
| Housing Size | 29 × 30 mm |
What Is a Safety Light Curtain?
A safety light curtain is a non-contact machine protection device that uses multiple infrared beams to create a defined detection area. When an object or person interrupts the beams, the sensor detects the interruption and sends an output signal to the machine control system.
Unlike a single-point photoelectric sensor, a safety light curtain creates multiple detection points across a defined protection height, allowing it to monitor a larger access area around industrial machinery.
The DAPPRA DPR Series uses through-beam infrared detection with a separate emitter and receiver to create the detection area.
What Is a Safety Light Curtain Used For?
A safety light curtain is used to monitor access to hazardous areas around industrial machinery without requiring physical contact.
Typical applications include:
- Automated production lines
- Conveyor systems
- CNC machines
- Press machines
- Press brake equipment
- Injection molding machinery
- Cutting equipment
- Welding lines
- Automated assembly equipment
- Material handling equipment
- Industrial machinery protection
The DPR-1040-NPN-NC provides a 360 mm protection height using 10 infrared optical beams with a 40 mm optical axis pitch.
What Is a Safety Light Curtain Safety Sensor?
A safety light curtain is a non-contact safety sensor that uses multiple infrared beams to detect objects or people entering a protected area.
The DPR-1040-NPN-NC consists of an emitter and receiver. The emitter generates parallel infrared beams, while the receiver monitors whether the beams are continuously received.
When one or more beams are interrupted, the receiver detects the interruption and changes the output state according to the NPN NC signal logic.
Safety Light Curtain vs Standard Photoelectric Sensor
A standard photoelectric sensor generally detects an object at a defined sensing point or sensing area. A safety light curtain uses multiple infrared beams arranged across a defined protection height to monitor access to a larger machine area.
The DPR-1040-NPN-NC uses a separate emitter and receiver to create a multi-beam infrared detection field with 10 optical beams and a 360 mm protection height.
How Does a Safety Light Curtain Work?
Through-Beam Infrared Detection
The DPR-1040-NPN-NC uses an infrared LED emitter and receiver to form 10 parallel infrared beams.
The emitter transmits infrared light toward the receiver. When an object or person enters the detection area and interrupts one or more beams, the receiver detects the interruption and switches the output state.
When all beams are clear, the receiver detects continuous infrared transmission and maintains the normal output condition.
Detection Logic
- Beam Clear → Output ON
- Beam Interrupted → Output OFF
Safety Light Curtain Types
Safety light curtains can be configured according to optical axis pitch, protection height, output configuration and signal logic.
Common configurations include:
- Different optical axis pitch configurations
- Different optical beam quantities
- Different protection height configurations
- NPN or PNP output configurations
- Normally Closed (NC) or Normally Open (NO) signal logic
- Different installation configurations
The DAPPRA DPR Series uses a through-beam infrared detection structure with a separate emitter and receiver.
DPR-1040-NPN-NC Product Overview
The DPR-1040-NPN-NC is an industrial Safety Light Curtain Area Sensor using an emitter and receiver to create multiple parallel infrared detection beams.
With 10 optical beams distributed at a 40 mm optical axis pitch, the sensor provides a 360 mm protection height within a 446 mm total sensor height.
The DPR-1040-NPN-NC uses NPN NC output logic and is designed for integration into industrial automation and machine protection systems.
DPR-1040-NPN-NC Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | DAPPRA |
| Product Series | DPR Series |
| Product Type | Safety Light Curtain Area Sensor |
| Detection Type | Through Beam Infrared Detection |
| Light Source | Infrared LED |
| Optical Beam Quantity | 10 Beams |
| Optical Axis Pitch | 40 mm |
| Protection Height | 360 mm |
| Total Height | 446 mm |
| Resolution | 10 mm |
| Detection Distance | 0.1–3 m |
| Operating Voltage | DC24V |
| Response Speed | 0.5 ms |
| Output Type | NPN |
| Signal Logic | NC (Normally Closed) |
| Output Current | ≤200 mA |
| Power Consumption | <5 W |
| Housing Size | 29 × 30 mm |
| Protection Rating | IP65 |
| Operating Temperature | −10 to 55°C |
| Relative Humidity | <85% RH at 20°C |
| Anti-Light Interference | 10,000 Lux, incidence angle >5° |
| Dielectric Strength | AC1500V, 60s, no breakdown or flashover |
| Insulation Resistance | ≥100 MΩ |
| Emitter Connector | M12 3-Pin |
| Receiver Connector | M12 4-Pin |
| Cable Length | 2 m |
| Safety Standard | IEC 61508 |
| Safety Integrity Level | SIL 2 |
| Certifications | SIL 2, CE, FCC, RoHS |
Protection Height vs Total Height
Protection height and total height describe different physical dimensions of the DPR-1040-NPN-NC.
Protection height is the effective height of the optical detection field, measured from the center of the first optical beam to the center of the last optical beam.
Total height is the complete physical height of the sensor.
For the DPR-1040-NPN-NC:
| Dimension | Value |
|---|---|
| Protection Height | 360 mm |
| Total Height | 446 mm |
The difference between these dimensions accounts for the physical sections of the sensor outside the effective optical beam field.
Optical Axis Pitch vs Resolution
Optical axis pitch and resolution describe different characteristics of the sensor.
Optical axis pitch is the distance between the centers of adjacent optical beams.
Resolution is the specified detection capability of the sensor.
For the DPR-1040-NPN-NC:
| Parameter | Value |
|---|---|
| Optical Axis Pitch | 40 mm |
| Resolution | 10 mm |
The DPR-1040-NPN-NC therefore combines a 40 mm optical axis pitch with a specified 10 mm resolution.
What Does NPN NC Mean?
NPN refers to the transistor output configuration of the sensor.
NC means Normally Closed signal logic.
For the DPR-1040-NPN-NC, the output is ON when the infrared detection field is clear. When a detection beam is interrupted, the output changes to OFF.
NPN NC Signal Logic
- Beam Clear → Output ON
- Beam Interrupted → Output OFF
DPR-1040-NPN-NC Mechanical Dimensions
The DPR-1040-NPN-NC has:
- 360 mm protection height
- 446 mm total height
- 40 mm optical axis pitch
- 29 × 30 mm housing size
Protection Height Calculation
How to Select a Safety Light Curtain?
Selecting a safety light curtain requires considering the required detection area, protection height, optical axis pitch, detection distance, resolution, output configuration and installation requirements.
1. Determine Protection Height
Protection height defines the effective height of the infrared detection area.
The DPR-1040-NPN-NC provides a 360 mm protection height.
2. Select Optical Axis Pitch
Optical axis pitch determines the spacing between adjacent infrared beam centers.
The DPR-1040-NPN-NC uses a 40 mm optical axis pitch.
3. Determine Detection Distance
The required distance between the emitter and receiver should be within the specified detection distance.
The DPR-1040-NPN-NC has a detection distance of 0.1–3 m.
4. Check Resolution
Resolution defines the specified detection capability of the sensor.
The DPR-1040-NPN-NC has 10 mm resolution.
5. Select Output Type
The DPR Series includes NPN and PNP output configurations.
The DPR-1040-NPN-NC uses NPN output.
6. Select Signal Logic
The DPR Series supports different signal logic configurations.
The DPR-1040-NPN-NC uses NC (Normally Closed) signal logic.
7. Confirm Operating Voltage
The DPR-1040-NPN-NC operates at DC24V.
8. Confirm Installation Requirements
Select the appropriate mounting configuration according to the machine structure and available installation space.
The DPR Series supports top and bottom mounting, side mounting and cantilever mounting.
How to Choose a DPR Series Model?
DAPPRA DPR Series models can be selected according to the required optical beam quantity, optical axis pitch, protection height, output type and signal logic.
For DPR Series selection, engineers should first determine the required protection height and optical axis pitch, then confirm the required output configuration and signal logic.
The DPR-1040-NPN-NC provides:
- 10 optical beams
- 40 mm optical axis pitch
- 360 mm protection height
- NPN output
- NC signal logic
The DPR Series Model Selection Table provides a direct comparison of available configurations.
DAPPRA DPR Series Area Sensor Model Selection Table
The DAPPRA DPR Series includes multiple Industrial Area Sensor configurations with different beam quantities, optical axis pitches, protection heights, output types and signal logic options.
The following table helps engineers select the appropriate DPR Series model according to application requirements.
| Model | Beam Quantity | Optical Axis Pitch | Protection Height | Total Height | Output Type | Signal Logic |
|---|---|---|---|---|---|---|
| DPR-0440-NPN-NC | 4 Beams | 40mm | 120mm | 208mm | NPN | NC |
| DPR-0640-NPN-NC | 6 Beams | 40mm | 200mm | 288mm | NPN | NC |
| DPR-0840-NPN-NC | 8 Beams | 40mm | 280mm | 368mm | NPN | NC |
| DPR-1040-NPN-NC | 10 Beams | 40mm | 360mm | 448mm | NPN | NC |
| DPR-1240-NPN-NC | 12 Beams | 40mm | 440mm | 528mm | NPN | NC |
| DPR-1440-NPN-NC | 14 Beams | 40mm | 520mm | 608mm | NPN | NC |
| DPR-1640-NPN-NC | 16 Beams | 40mm | 600mm | 688mm | NPN | NC |
DPR-1040-NPN-NC Model Number Description
| Model Element | Meaning |
|---|---|
| DPR | DAPPRA DPR Series Area Sensor |
| 10 | 10 optical beams |
| 40 | 40 mm optical axis pitch |
| NPN | NPN output |
| NC | Normally Closed signal logic |
DPR-1040-NPN-NC — 10 optical beams + 40 mm optical axis pitch + NPN output + NC signal logic
DPR-1040-NPN-NC Safety Light Curtain Wiring
The DPR-1040-NPN-NC uses an M12 3-pin connector for the emitter and an M12 4-pin connector for the receiver.
Emitter Wiring
| Pin | Wire Color | Function |
|---|---|---|
| Pin 1 | Brown | DC24V |
| Pin 3 | Blue | 0V |
| Pin 4 | Black | PC SYNC |
Receiver Wiring
| Pin | Wire Color | Function |
|---|---|---|
| Pin 1 | Brown | DC24V |
| Pin 2 | Blue | 0V |
| Pin 3 | White | NPN NC Output |
| Pin 4 | Black | PC SYNC |
PC SYNC Connection
Emitter Black → Receiver Black
The PC SYNC wiring between the emitter and receiver must be connected according to the wiring diagram.
NPN NC Output Logic
- Beam Clear → Output ON
- Beam Interrupted → Output OFF
DPR-1040-NPN-NC Installation Guide
The DPR Series supports multiple installation methods to meet different application requirements.
Top and Bottom Mounting
Mounting brackets are fixed to the top and bottom ends of the sensor.
Side Mounting
Mounting brackets are fixed to both sides of the sensor.
Cantilever Mounting
Cantilever brackets provide adjustable and flexible installation and are sold separately.
Emitter and Receiver Mounting
Emitter Mounting: Fix the emitter securely using the mounting brackets.
Receiver Mounting: Fix the receiver securely using the mounting brackets.
The emitter and receiver should be securely mounted and positioned facing each other.
Emitter and Receiver Alignment
The emitter and receiver must be correctly aligned so that the infrared beams are received by the receiver.
After mounting, verify the complete detection area before connecting the sensor to the machine control system.
- All beams clear → Output ON
- Beam interrupted → Output OFF
Safety Light Curtain Installation Reference
The protection height and detection distance should be selected according to the machine structure and required protection area.
The emitter and receiver should be installed at the required protection height and aligned across the protected area.
Safety Light Curtain Applications
The DPR-1040-NPN-NC is designed for industrial machine protection and automation applications requiring non-contact infrared area detection.
Typical applications include:
- CNC machine protection
- Press machine protection
- Conveyor systems
- Automated production lines
- Injection molding equipment
- Cutting machinery
- Welding equipment
- Automated assembly equipment
- Material handling systems
- Industrial machinery
Safety and Certifications
The DPR-1040-NPN-NC is supplied with SIL 2, CE, FCC and RoHS certification.
The safety specification references IEC 61508.
Certifications
- SIL 2
- IEC 61508
- CE
- FCC
- RoHS
DAPPRA Automation Manufacturing and Quality Assurance
The DPR Series is produced by DAPPRA Automation's own manufacturing facility.
DAPPRA provides industrial automation products with production control and quality inspection processes.
Quality Assurance Process
- Factory Quality Control
- 100% Product Inspection
- Functional Testing
- Incoming Material Inspection
- Aging Test
- Final Inspection
DPR-1040-NPN-NC Package Contents
The DPR-1040-NPN-NC standard package includes the emitter and receiver pair, connection cables and mounting accessories.
Standard Configuration
- 1 × Emitter
- 1 × Receiver
- 2 m connection cables
- M12 connection
- Mounting accessories
DPR-1040-NPN-NC Technical Resources
DAPPRA provides technical documents to support product selection, installation and engineering integration.
DPR-1040-NPN-NC Datasheet
Complete technical specifications, electrical parameters, dimensions and product information.
DPR-1040-NPN-NC Light Curtain Manual
Installation reference information including mounting, alignment and wiring guidance.
DPR-1040-NPN-NC CAD Drawing
Engineering drawing information for mechanical integration, mounting design and equipment layout.
FAQ
The DPR-1040-NPN-NC is a DAPPRA Safety Light Curtain Area Sensor with 10 optical beams, 40 mm optical axis pitch and 360 mm protection height. It uses NPN normally closed (NC) signal logic for industrial machine protection and automation applications.
The DPR-1040-NPN-NC has 10 optical beams.
The optical axis pitch of the DPR-1040-NPN-NC is 40 mm.
The protection height of the DPR-1040-NPN-NC is 360 mm, measured from the center of the first optical beam to the center of the last optical beam.
The total height of the DPR-1040-NPN-NC is 446 mm.
The specified detection distance of the DPR-1040-NPN-NC is 0.1–3 m.
The DPR-1040-NPN-NC uses NPN output with NC (Normally Closed) signal logic.
The specified response speed of the DPR-1040-NPN-NC is 0.5 ms.
The DPR-1040-NPN-NC operates at DC24V.
The DPR-1040-NPN-NC has an IP65 protection rating.
The emitter uses an M12 3-pin connector, and the receiver uses an M12 4-pin connector.
The supplied connection cable length is 2 m.
The DPR-1040-NPN-NC is supplied with SIL 2, CE, FCC and RoHS certification. The safety specification references IEC 61508.
The DPR Series supports top and bottom mounting, side mounting and cantilever mounting.
When an infrared beam is interrupted, the receiver detects the interruption and the NPN NC output changes to OFF. When all beams are clear, the output is ON.
Need Technical Support or a Quote?
Contact DAPPRA Automation for engineering assistance, pricing, or OEM/ODM inquiries.
2 reviews for DAPPRA DPR-1040-NPN-NC Safety Light Curtain Area Sensor
-
barang sesuai diskripsi. pengiriman cepat. namun belom sempat coba Packaging aman dan bagus
-
barang sesuai diskripsi. pengiriman cepat. namun belom sempat coba Packaging aman dan bagus
Only logged in customers who have purchased this product may leave a review.
Pilihan lainnya untukmu
Lihat produk terkait
Triy**** (verified owner) –
barang sesuai diskripsi. pengiriman cepat. namun belom sempat coba Packaging aman dan bagus
Triy**** (verified owner) –
barang sesuai diskripsi. pengiriman cepat. namun belom sempat coba Packaging aman dan bagus
