DAPPRA Automation

DPR-1640-NPN-NC

10 mm Resolution · Parallel Beam Area Sensor · 600 mm Protection Height

Version 1.0 September 2023 SKU: SH64 NPN NC

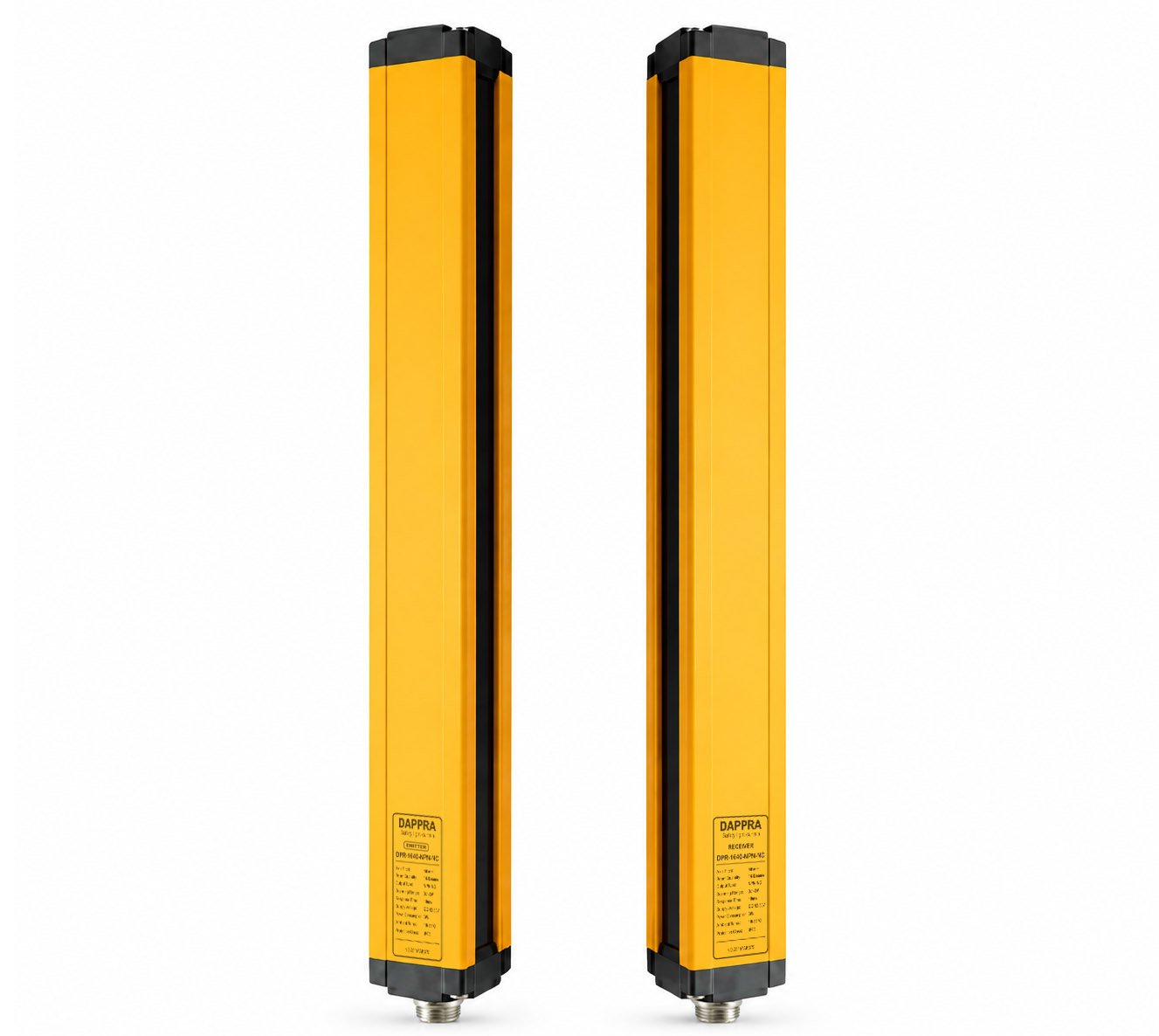

DAPPRA DPR-1640-NPN-NC Industrial Area Sensor

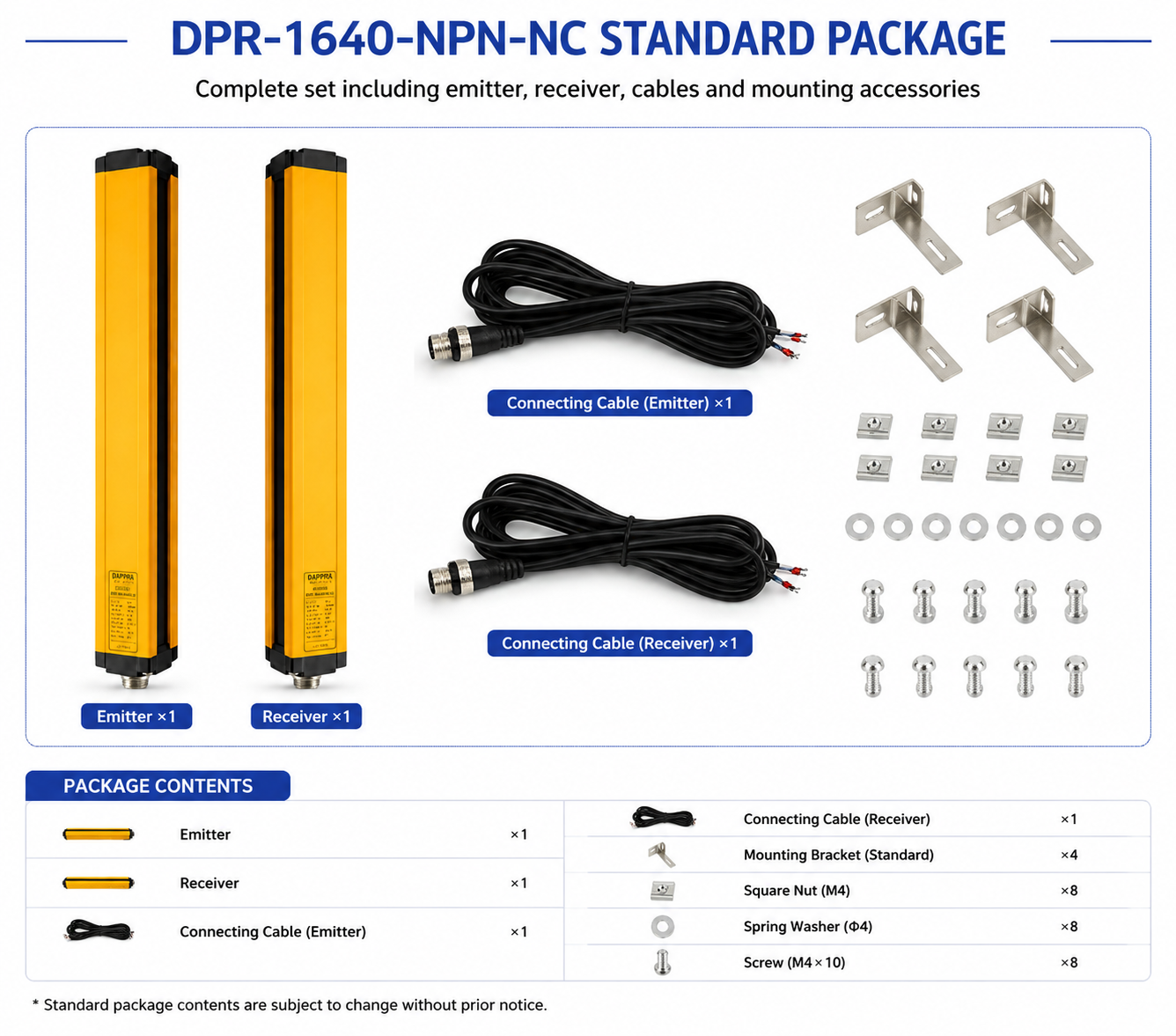

Product Description
The DAPPRA DPR-1640-NPN-NC is an industrial area sensor from the DPR Series, designed for industrial automation equipment requiring reliable multi-beam object detection and machine protection.

The DPR-1640-NPN-NC uses through-beam infrared detection technology with a separate emitter and receiver. With 16 optical beams, a 40 mm optical axis pitch, and a 600 mm protection height, it provides stable detection performance for industrial applications.

Key Features

16 parallel infrared beams
10 mm resolution
5–10 mm minimum detectable object capability
NPN NC output configuration
DC24V power supply
Maximum detection distance up to 3 m
IP65 protection rating
Oil-resistant fluorosilicone surface coating
Wire synchronization technology
Dual-circuit signal output with self-test technology

Product Identity

Parameter	Specification
Brand	DAPPRA
Manufacturer	DAPPRA Automation
Product Series	DPR Series
Model	DPR-1640-NPN-NC
SKU	SH64
Product Category	Industrial Area Sensor
Detection Method	Through Beam Infrared Detection
Beam Configuration	Parallel Beam
Optical Axis Quantity	16 Beams
Optical Axis Pitch	40 mm
Output Type	NPN
Signal Logic	NC (Normally Closed)

Technical Specifications

Specification	Value
Model	DPR-1640-NPN-NC
SKU	SH64
Series	DPR Series
Detection Method	Through Beam Infrared Detection
Beam Configuration	Parallel Beam
Optical Axis Quantity	16 beams
Optical Axis Pitch	40 mm
Resolution	10 mm
Minimum Detectable Object	5–10 mm
Protection Height	600 mm
Total Height	686 mm
Maximum Detection Distance	3 m
Power Supply	DC24V ±20%
Response Time	0.5 ms
Output Type	NPN
Signal Logic	NC (Normally Closed)
Connector	M12 Cable
Output Current	≤200 mA
Power Consumption	<5 W
Cross Section Size	29 × 30 mm
Protection Rating	IP65
Housing Material	Aluminum Alloy
Synchronization Method	Wire Synchronization
Operating Temperature	-10°C to 55°C
Operating Humidity	Relative Humidity <85% at 20°C
Ambient Light Resistance	10000 Lux (incident angle >5°)

Model Number Explanation

Code	Meaning
DPR	DAPPRA DPR Series
16	16 Optical Beams
40	40 mm Optical Axis Pitch
NPN	NPN Output Type
NC	Normally Closed Signal Logic

DPR-1640-NPN-NC represents a DPR Series Area Sensor with 16 beams, 40 mm optical axis pitch, NPN output and Normally Closed signal logic.

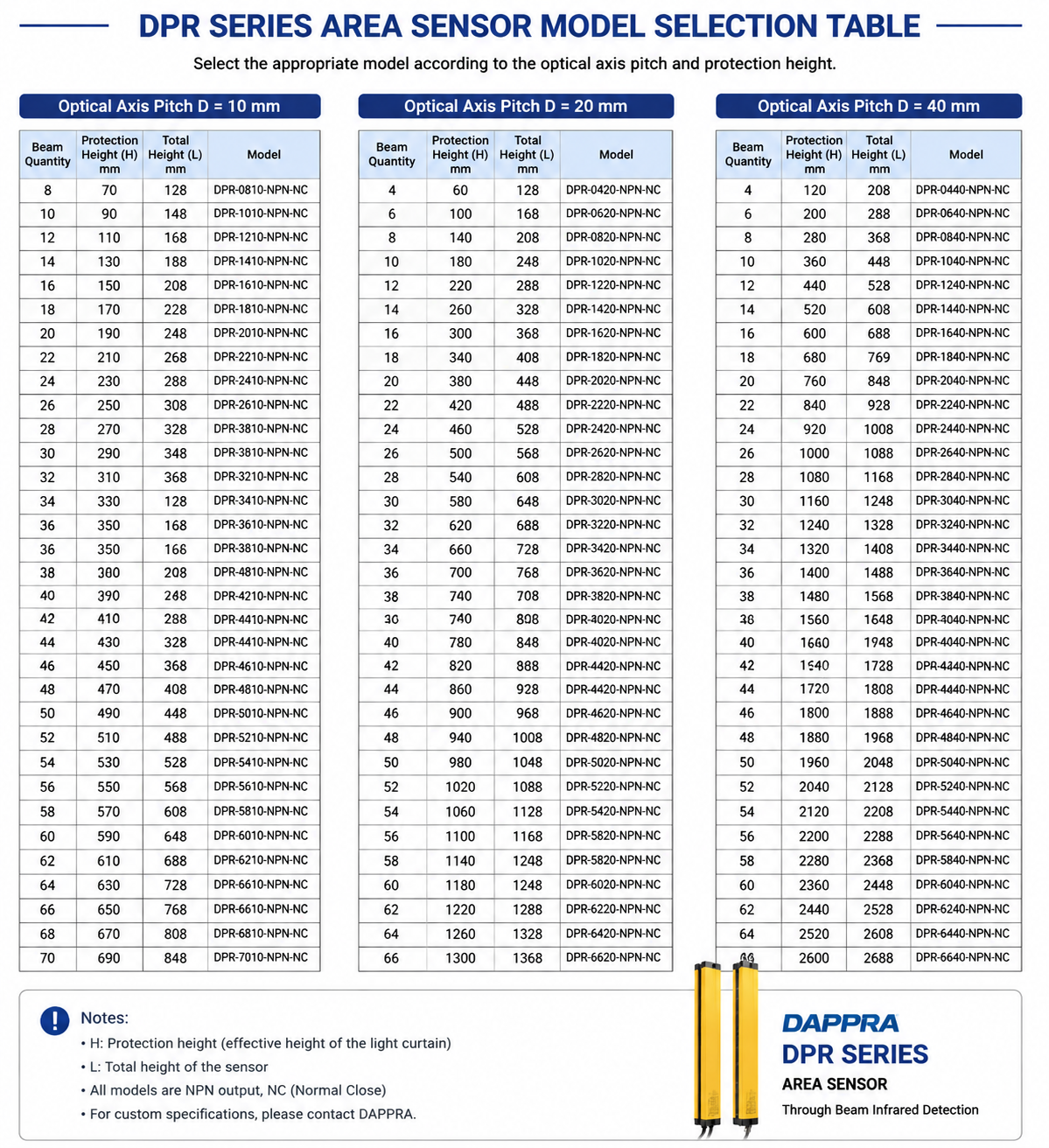

DPR Series Area Sensor Model Selection Table

DPR Series Area Sensor Complete Model Selection Table

Protection Height Calculation

For DPR Series Area Sensors, protection height is calculated as:

Protection Height = (Beam Quantity − 1) × Optical Axis Pitch

For DPR-1640-NPN-NC:

(16 − 1) × 40 mm = 600 mm

NPN NC Signal Logic

The DPR-1640-NPN-NC uses an NPN output with NC (Normally Closed) signal logic.

Detection Condition	Output Status
Normal beam condition	Output follows NC signal logic.
Beam interruption	Output changes according to NC switching state.

NPN NC Output Configuration

Output Type: NPN
Signal Logic: NC (Normally Closed)
Power Supply: DC24V
Connector: M12 Cable

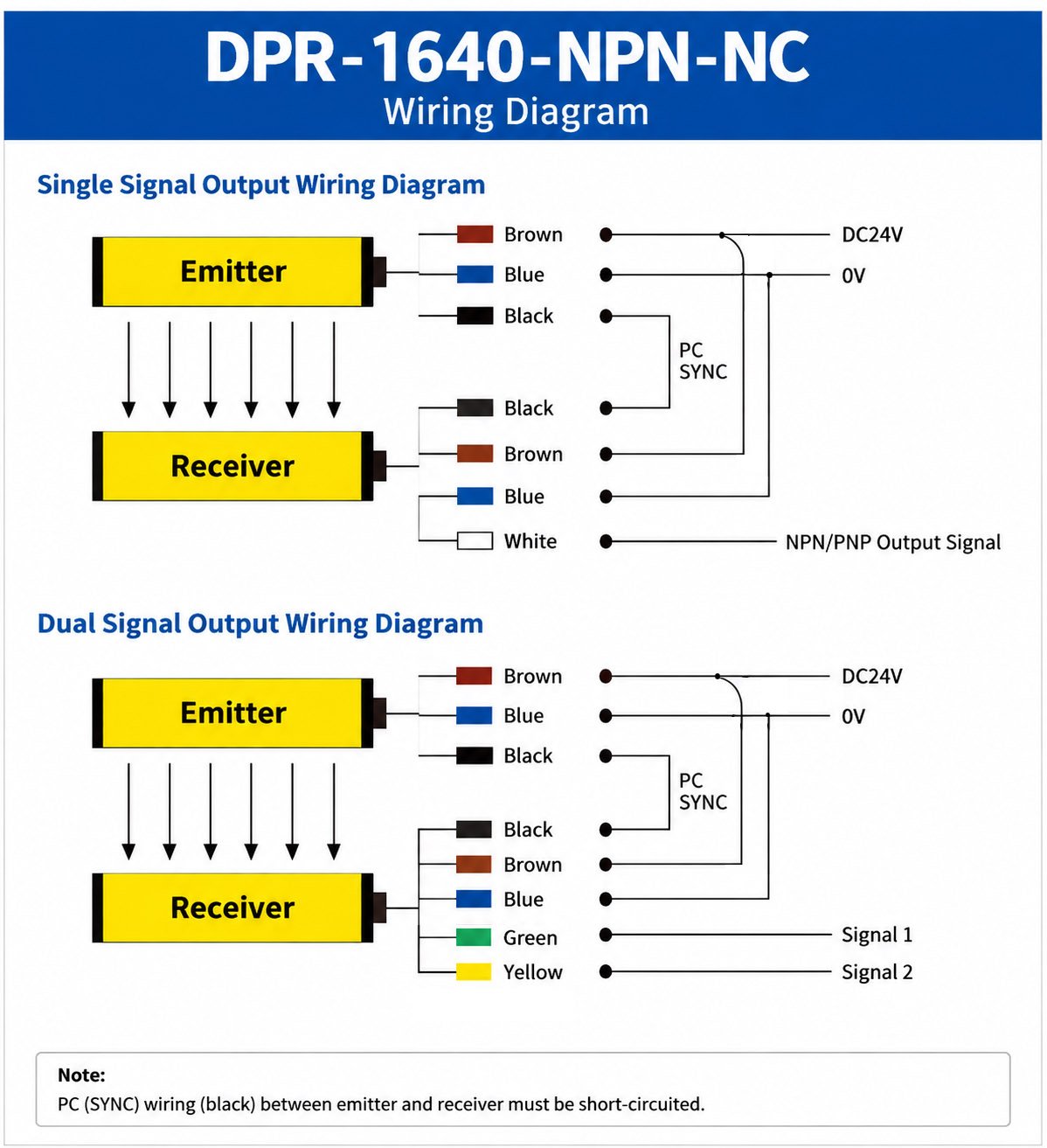

DPR-1640-NPN-NC NPN NC Wiring Diagram

Industrial Applications

The DPR-1640-NPN-NC Industrial Area Sensor is designed for industrial automation applications requiring multi-beam object detection and machine protection.

Typical application areas include:

Press Machinery
Injection Molding Machinery
Press Brake Machinery
Automated Assembly and Wiring Equipment
Shearing Machinery
Cutting Machinery
Pressing Machinery
Automated Storage Equipment
Woodworking Machinery
Stamping Machinery
Lifting Control Machinery
Welding Production Lines
Vertical Parking Systems
Hazardous Machine Applications
Falling Object Detection Applications

The sensor can establish a defined infrared detection area around industrial equipment where object detection or machine protection is required.

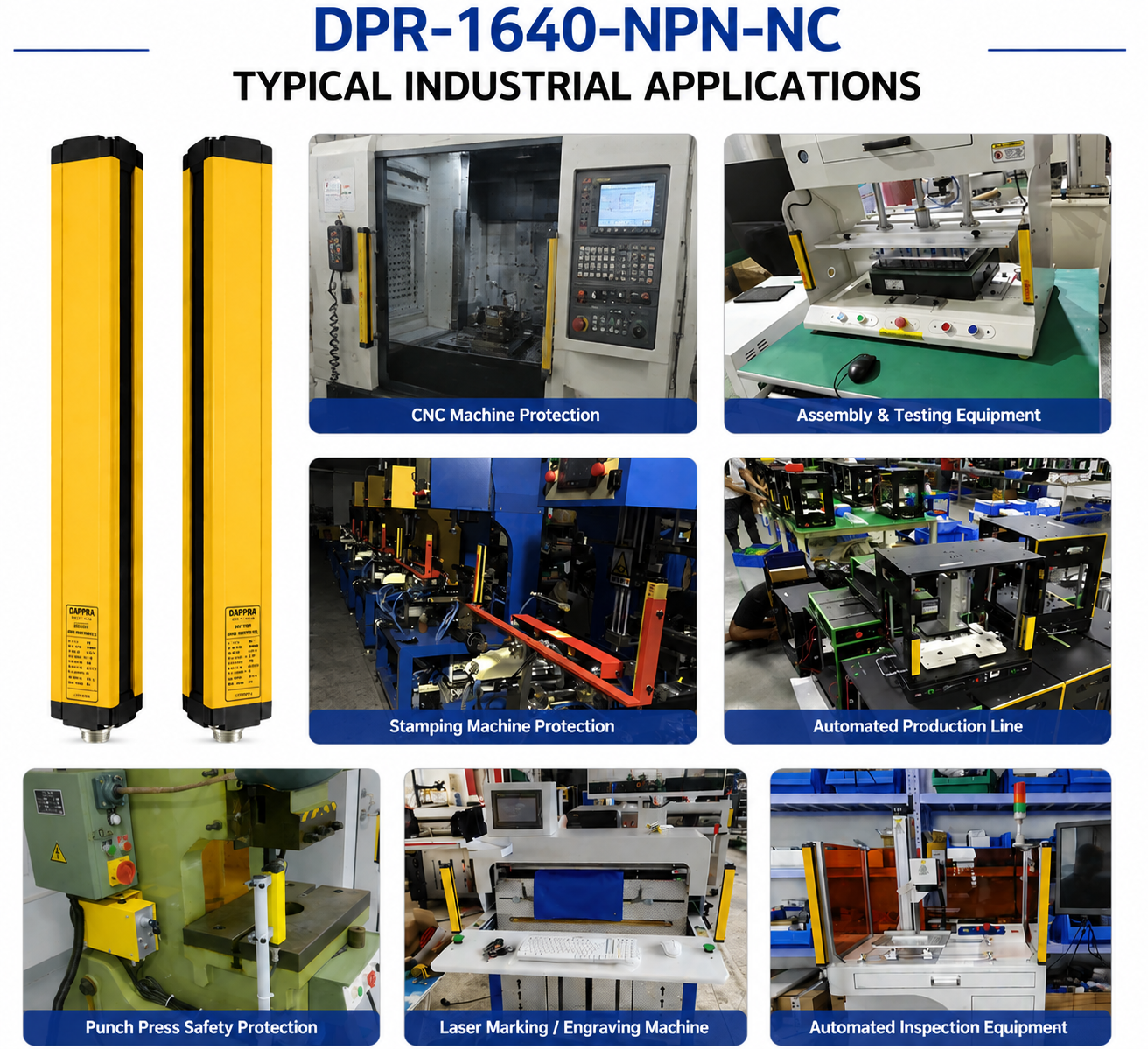

DPR-1640-NPN-NC Industrial Applications

Environmental Protection

The DPR-1640-NPN-NC is designed for industrial automation environments where equipment may experience humidity, water exposure, oil contamination, mechanical vibration and electromagnetic interference.

Feature	Description
IP65 Protection	Protection design for industrial environments requiring resistance to dust and water exposure.
Oil Resistance	Surface protection using fluorosilicone coating for oil-resistant performance.
Anti-Vibration Design	Designed for stable operation in industrial machinery environments.
Anti-Interference Design	Uses wire synchronization technology to improve resistance against electromagnetic interference.
Ambient Light Resistance	10000 Lux (incident angle >5°)
Operating Temperature	-10°C to 55°C
Operating Humidity	Relative humidity <85% at 20°C
