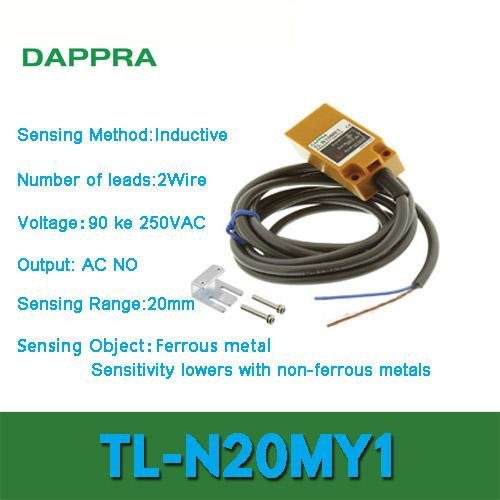

TL-N20MY1 TL – N20MY1 20mm AC 2wire NO Inductive proximity sensor oa73

TL-N20MY1 TL – N20MY1 20mm AC 2wire NO Inductive proximity sensor oa73

Description:
Unshielded, Square type, AC 2-wire models, Sensing distance 20 mm ±10%, NO, Pre-wired models

Feature:
Sensing head size 40 mm x 41 mm x 53 mm
Type Square type, Unshielded
Power source AC 2-wire models
Sensing distance 20 mm ±10%
Setting distance 0 to 16 mm
Differential distance 15% max. of sensing distance
Sensing object Ferrous metal (Sensitivity lowers with non-ferrous metals.)
Standard sensing object Iron 50 x 50 x 1 mm
Response frequency 10 Hz (Average value)
Power supply voltage 100 to 220 VAC
Operating voltage range 90 to 250 VAC
Control output (Switching capacity) 10 to 200 mA
Indicator Operation indicator (red)
Operation mode NO
Protective circuit Surge suppressor
Ambient temperature (Operating) -25 to 70 ℃
Ambient temperature (Storage) -25 to 70 ℃
Ambient humidity (Operating) 35 to 95% RH
Ambient humidity (Storage) 35 to 95% RH
Temperature influence ±10% max. of sensing distance at 23 ℃ in the temperature range of -25 to 70 ℃
Voltage influence ±1% max. of sensing distance at rated voltage in the rated voltage ±10% range
Insulation resistance Between charged parts and the case: 5 MΩ min. at 500 VDC
Dielectric strength Between charged parts and the case: 2,000 VAC 50/60 Hz 1 min
Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistance Destruction: 500 m/s2 10 times each in X, Y, and Z directions
