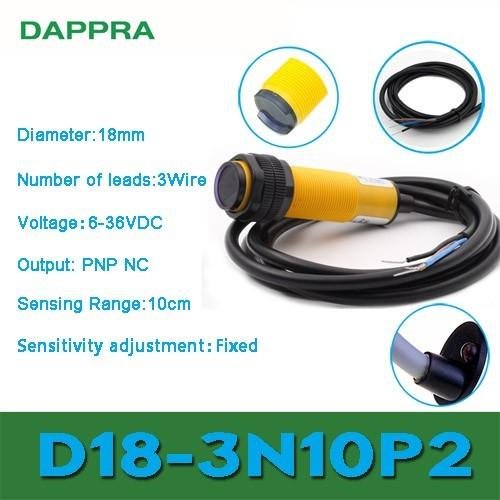

D18-3N10P2 M18 10CM DC6V ke 36V 3Wire PNP NC Photoelectric Sensor OA04

D18-3N10P2 M18 10CM DC6V ke 36V 3Wire PNP NC Photoelectric Sensor OA04

Feature:
D18-3N10P2 M18 3Wire 6 ke 36VDC PNP NC Diffuse reflective
Model number：D18-3N10P1
Sensing method：Diffuse reflective
Switch Appearance Type: Cylinder Type
Electrical Design: PNP
Switching Output: Normally Clouse
Diameter, Housing Length: 18, 60 mm
Wire Type: 3 Wire Type (Black, Brown, Blue)
Detection distance：10cm±10%
Sensitivity adjustment：Fixed
Supply voltage：6-36Vdc; 5Vdc; 90-250Vac
Rated output current：N.P Type: 300mA max;
Sensing object：Opaque object
note:Objects are not limited to metal, and all objects that reflect light (or block light) can be detected.
Response frequency：300Hz
Response time：1.5ms max
Light source：Infrared LED (660 nm)
