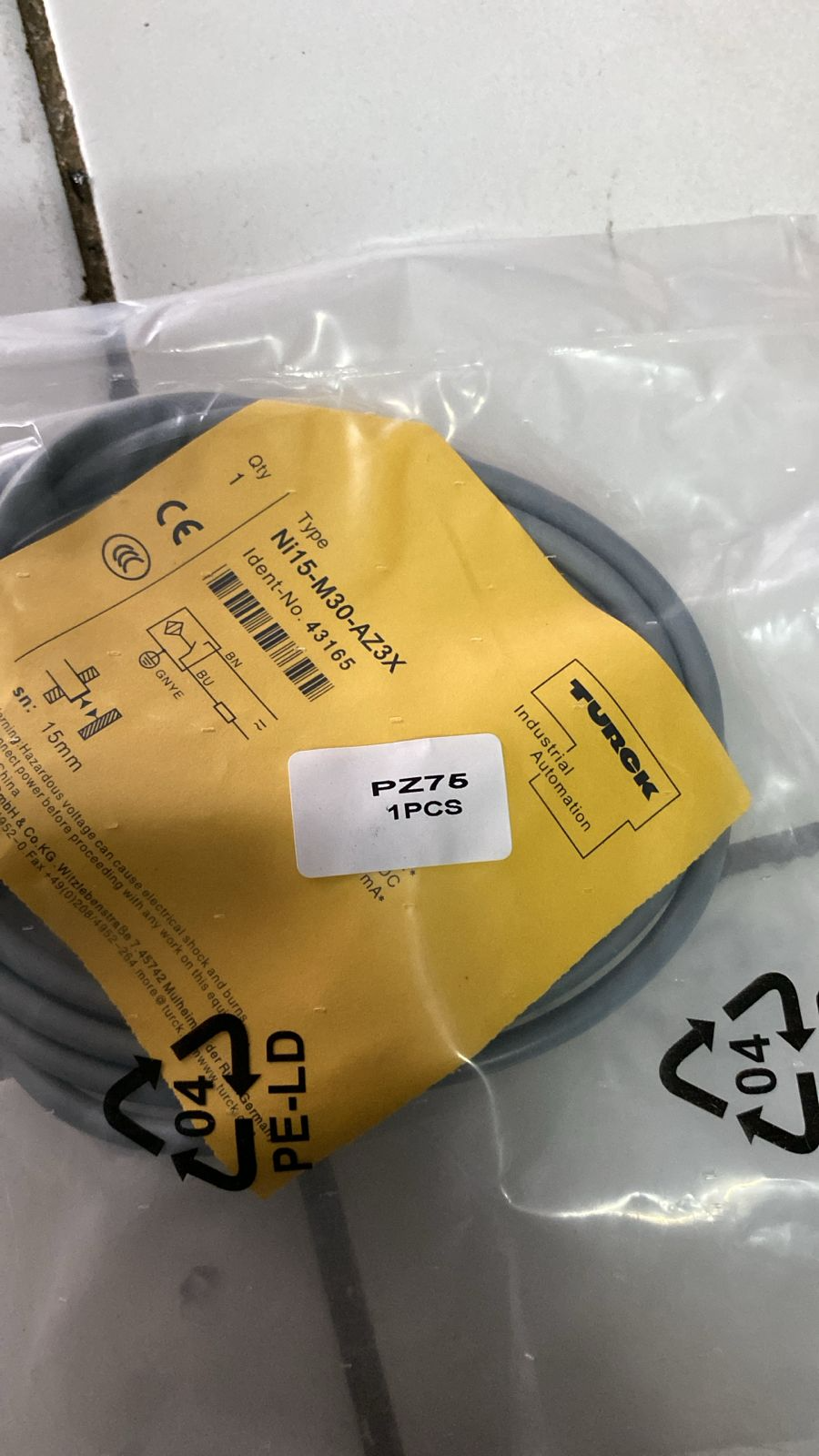

Ni15-M30-AZ3X Ni15 M30 AZ3X Inductive Proximity Sensor PZ75

Ni15-M30-AZ3X Ni15 M30 AZ3X Inductive Proximity Sensor PZ75

Feature:
Type NI15-M30-AZ3X
ID no. 43165
Rated switching distance 15 mm
Mounting conditions Non-flush
Secured operating distance ≤ (0.81 × Sn) mm
Correction factors St37 = 1; Al = 0.3; stainless steel = 0.7;
Ms = 0.4
Repeat accuracy ≤ 2 % of full scale
Temperature drift ≤ ± 10 %
Hysteresis 3…15 %
Ambient temperature -25…+70 °C
Operating voltage 20…250 VAC
Operating voltage 10…300 VDC
AC rated operational current ≤ 400 mA
DC rated operational current ≤ 300 mA
Frequency ≥ 50…≤ 60 Hz
Residual current ≤ 1.7 mA
Isolation test voltage ≤ 1.5 kV
Surge current ≤ 8 A (≤ 10 ms max. 5 Hz)
Voltage drop at Ie ≤ 6 V
Output function 2-wire, NO contact, 2-wire
Smallest operating current ≥ 3 mA
Switching frequency 0.02 kHz
