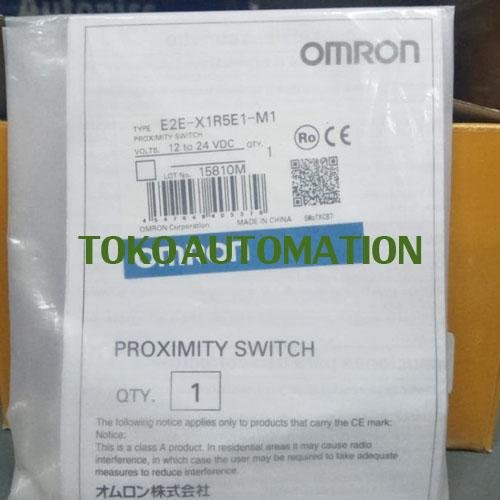

E2E-X1R5E1-M1 E2E X1R5E1 M1 NPN 24VDC 1.5mm Proximity Sensor PS19

E2E-X1R5E1-M1 E2E X1R5E1 M1 NPN 24VDC M12 1.5mm Proximity Sensor PS19

Description:
E2E Series 1.5 mm Sensing Distance Proximity Sensor with M12 4-Pin Connector

Feature:
Body Material Stainless Steel
Housing Material Stainless Steel
Mount Brackets, DIN Rail, Panel
Number of Pins 4
Technical
Max Operating Temperature 85 °C
Max Supply Voltage 40 V
Max Supply Voltage (DC) 40 V
Min Operating Temperature -40 °C
Min Supply Voltage 10 V
Min Supply Voltage (DC) 10 V
Nominal Supply Current 13 mA
Operating Supply Voltage 30 V
Response Frequency 2 kHz
Sensing Distance 1.5 mm
Sensing Method Inductive
Shielding Shielded
Switching Frequency 2 kHz
Termination Connector
Dimensions
Height 15 mm
Length 37 mm
Width 15 mm
