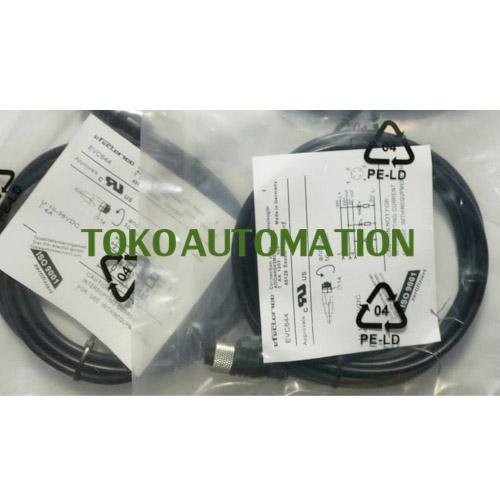

DOL-1208-G02MC DOL1208G02MC DOL 1208 G02MC Plug connector Cable PW62

DOL-1208-G02MC DOL1208G02MC DOL 1208 G02MC Plug connector Cable PW62

Feature:
Accessory group Plug connectors and cables
Accessory family Connecting cables
Connection type head A Female connector, M12, 8-pin, straight
Connection type head B Flying leads
Connector material TPU
Connector color Black
Locking nut material Zinc die-cast, nickel-plated
Tightening torque 0.4 Nm
Cable 2 m, 8-wire, PUR, halogen-free
Jacket material PUR, halogen-free
Jacket color Black
Cable diameter 5.9 mm
Conductor cross-section 0.25 mm?
Shielding Unshielded
Bending radius
Flexible use > 10 x cable diameter
Stationary position > 5 x cable diameter
Bending cycles ≥ 4,000,000
Reference voltage ≤ 30 V
Current loading 4 A

Please note: For 8-pin sensor-actuator cables, the wire colors are not standardized. Therefore, please observe the pin assignment of the sensor and the cable in the respective data sheet.
