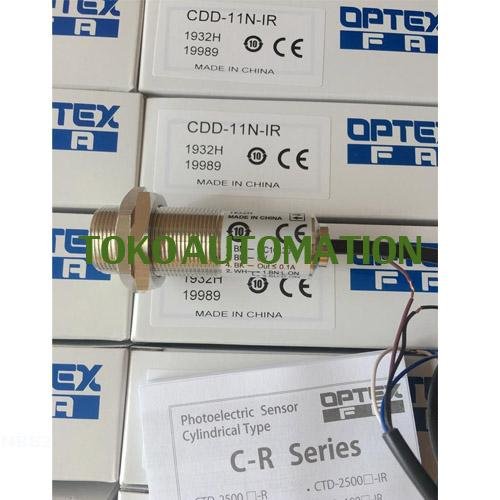

CDD-11N-IR 110mm M18 NPN Infrared Limit Distance Diffuse Photoelectric Sensor SW88

CDD-11N-IR 110mm M18 NPN Infrared Limit Distance Diffuse Photoelectric Sensor SW88

Feature:
Infrared Light Source Features Sharp Cut-Off at 110mm
Nickel-Plated Brass Housing Provides Improved Corrosion Resistance and Durability
Interior Features Hot-melt Molding for High Vibration Resistance and IP67 Protection
Heavy-Duty Oversized 1-turn Sensitivity Potentiometer
2 meter Cable Connection Type

SPEK:
Sensing Mode / Type Diffuse
Housing Nickel plated brass
Sensing Distance 110mm
Light Source IR LED
Beam Spot ? Size / Distance ? ?5mm/110mm
Supply Voltage 10 to 30 VDC
Current Consumption 25mA
Response Time .5ms
Sensitivity Adjustment 1-turn potentiometer
Hysteresis
Output NPN
Output Operation Mode LO/DO Selectable by Wire
Material Brass Ni Plated (housing) PMMA (lens)
Protection IP67
