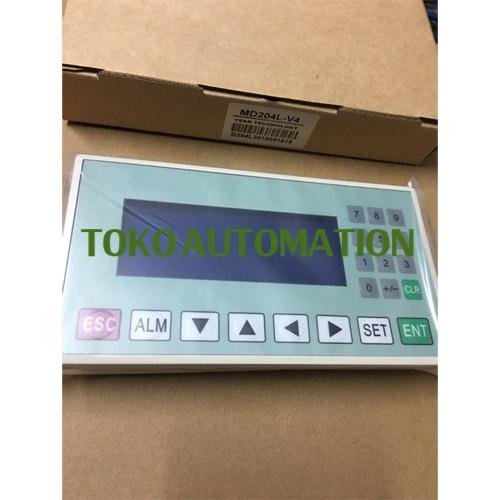

MD204LV4 MD204L-V4 MD204L V4 text display 4.3′ HMI touch screen PW17

MD204LV4 MD204L-V4 MD204L V4 text display 4.3 #39; HMI touch screen PW17 Feature: Display 4.3 #34;FSTN Resolution 192 x64 pixel(supporting display of 4 lines 12 Chinese characters) LCM life time Greater than 50,000 hours at 252°C, 65±10%RH Brightness 60 cd/m? Color Monochromatic Contrast Adjustable by potentiometer Backlight Long service life yellow / green LED CPU 8-bit processor Memory 64KB flash ROM COM port COM1: PC RS232 amp; PLC RS485/422 amp; PLC RS232 Real-time clock Optional Function key 20 keys, customizable(including 12 numeric input keys) Printer port N/A Allowable power failure Within 20ms Power supply 12~24 VDC ±10% lt;150mA @ 24VDC Interference immunity test Voltage 1500Vp-p,Pulse cycle 1us,Duration 1s Dielectric strength 500V AC (1 min) Isolation resistance Exceed 10M at 500V DC Vibration endurance 10 to 25 Hz(x, y, z direction, 2G, 30 minutes) Protection class IP65 front panel Operating temperature 0 ~ 50 °C Operating humidity 20 ~ 90 % RH (non-condensing) Storage temperature -20 °C ~70 °C Enclosure Engineering plastic ABS + PC Dimensions(W x H x D) 172 × 95 × 30mm Display size(W x H) 101 × 36 mm Panel cutout dimension 165 × 86mm Cooling method Natural air cooling
