Description:

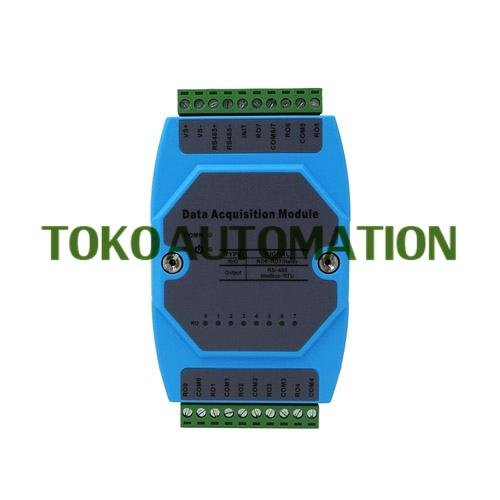

Modulenya is a 8 channel relay switch output module, which is used in the signal
control of industrial device. Support 8 channel A type normal open relay output, the
relay capacity is 3A @250VAC/30VDC. RS-485 communication interface, support the
MODBUS RTU protocol, can connect configuration software, PLC, DCS industrial control
touch screen.

Feature:
Switching Output
1. output channel: 8 channel A type relay output
2. Load voltage: 0~250VAC or 0~30VDC
3. Load current: 3A
Communication interface
1. Communication protocol: MODBUS-RTU
2. Interface type: RS-485 interface
3. Interface protection: 15KV ESD protection, 1500V isolation protection
4. Baud rate: 1200/2400/4800/9600/19200/38400/57600/115200
5. Parity：None, even, odd
6. Default: 9600, N, 8, 1 (modifiable)
System parameter
1. Module size: 104mm x 72mm x 26mm
2. Installation: 35mm din rail installation
3. Environment: temperature: -20~70℃ humidity: 0-95%, not condensing
4. Power supply: DC9~30V is less than 3W
LED indicator definition
1. POWER: power status indication, “bright” power supply is normal
2. COMM: RS-485 communication indication, that “flash” is sending and receiving data
3. RO0~RO7: relay action indication, “bright” relay is closed
Using the default communication parameters
When you forget module communication (ID, baud rate, parity bit), the INIT and
VS- pins are short circuited, module electrifying, The communication parameters of the
module are (9600, N, 8, 1), ID is 1.INIT and VS- pin is disconnected, module using
parameters set by the user, default parameters for the module (9600, N, 8, 1), ID is 1.
