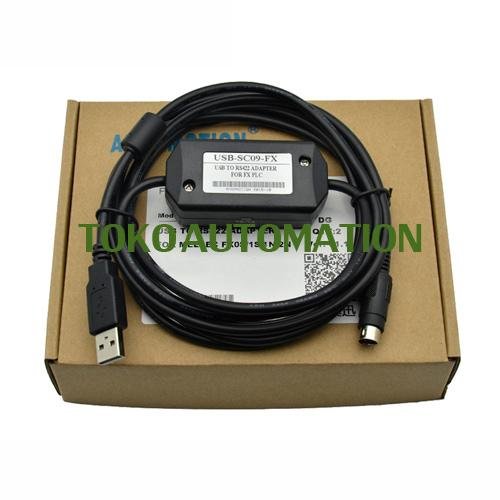

FX PLC Programming USB to RS422 ADAPTER USB-SC09-FX+ PA81
Rp270,000.00
VOUCHER
Diskon 5% min. belanja Rp1JT
🔥 8 items sold in last 3 jam
15 orang sedang melihat produk ini sekarang
Tanya dulu via WhatsApp
PLC MELSEC Programming USB-SC09-FX USB TO RS422 Cable PA81 Overview: USB-SC09-FX + isolation type is a serial connection and RS422 signal conversion optocoupler programming cable through the USB interface, running under the control of the driver in the computer, the computer #39;s USB interface simulation into traditional serial port (commonly known as the COM port) , thus various existing programming software, communication software and monitoring software and other applications. Working power cable from the USB port and by the DC / DC isolated power supply, no longer on the converter box (TX- sent; PWR- power; RX- accepted) PLC port powered by the transceiver status LED indicates data. USB-SC09-FX + isolated programming cable for Mitsubishi FX2N / FX1N / FX0 / FX0N / FX0S / FX1S / FX3U …… other programming port for the FX series PLC MD8F circular outlet. Features: Support USB-SC09-FX + isolated operating system: WIN2000 / WINXP / WIN7 / WIN8 Support USB-SC09-FX + Isolated programming software version: GX Works2 or GX Developer V7.0 and above Fully compatible with USB V1.1 or 2.0 USB bus-powered, the current consumption of about 70mA Baud rate: 300bps ~ 1Mbps standard automatic baud rate adaptation Support UART data format: data bits: 5,6,7,8, stop bits: 1, Parity: odd / even / no parity Cable length: 3 m Instructions: USB-SC09-FX + isolated programming cable need to install USB device driver to use, these drivers are included on the CD with the product sale, installation method see the screen tutorial on the CD-ROM driver is not mentioned here. After the driver installation is complete, USB-SC09-FX + isolated programming cable corresponding COM port in the Windows Device Manager, simply select the COM port in the programming software or other application software and keep other communication parameters the default setting, then use with RS232 port cable are identical.
