Introduction

In the realm of industrial automation, the need for reliable and precise object detection is paramount. Safety light curtains and area sensors have become indispensable tools for safeguarding personnel and equipment, ensuring operational efficiency, and maintaining compliance with stringent safety regulations. The DAPPRA DPR-1440-NPN-NC is a safety light curtain area sensor engineered to meet the demands of modern industrial environments, offering a robust combination of performance, durability, and ease of integration.

This article provides a comprehensive technical overview of the DPR-1440-NPN-NC, exploring its design philosophy, core specifications, operational principles, and typical applications. Whether you are a design engineer, a maintenance professional, or an automation system integrator, this guide will help you understand the capabilities and value proposition of this versatile sensor.

1. Product Overview and Design Philosophy

The DPR-1440-NPN-NC is part of the DAPPRA DPR Series, a family of industrial area sensors designed for through-beam infrared detection. The product is built around a fundamental principle: to create a reliable, multi-beam detection field that can accurately sense the presence of objects within a defined area. This approach provides a significant advantage over single-point photoelectric sensors, which can only detect objects at a specific point.

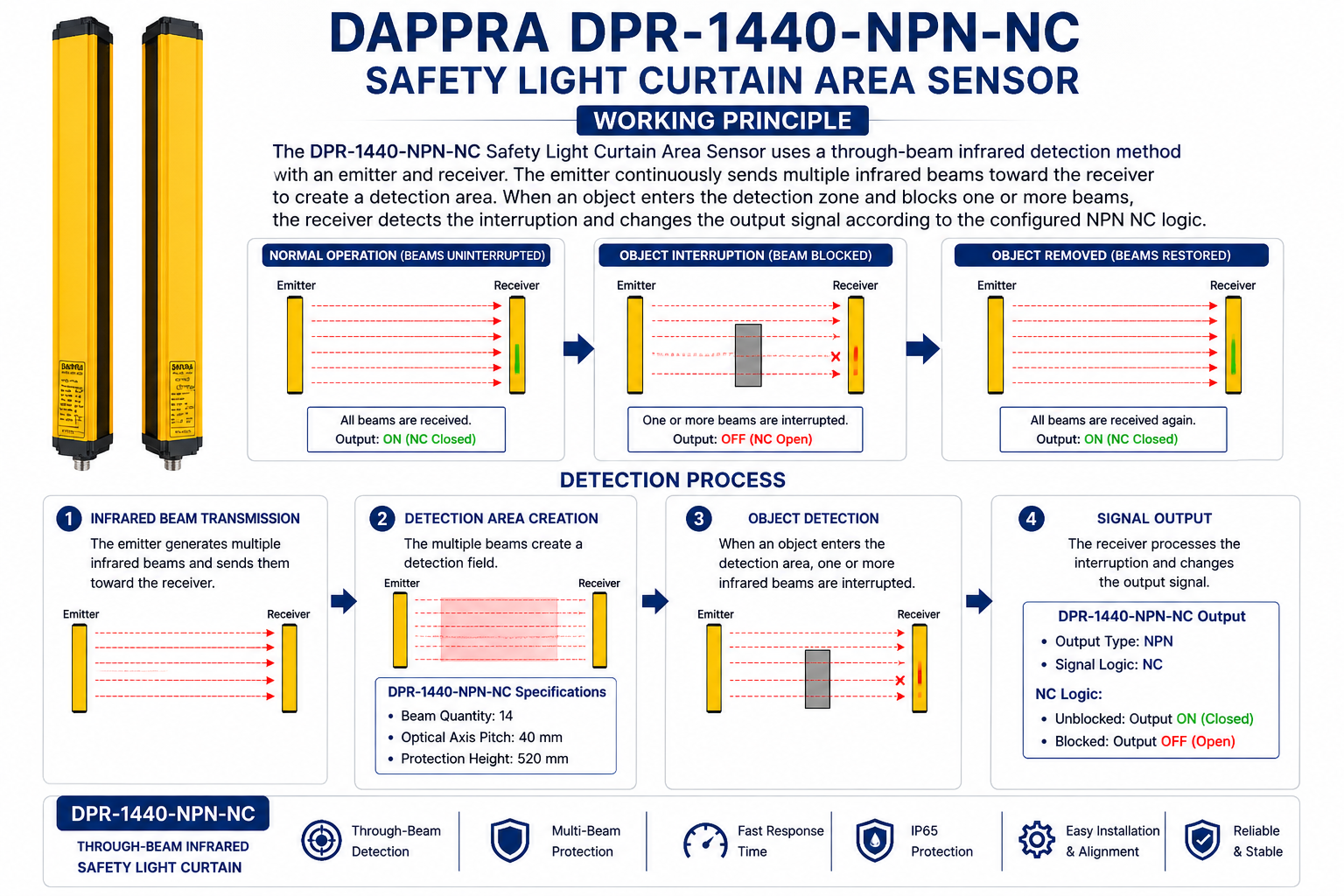

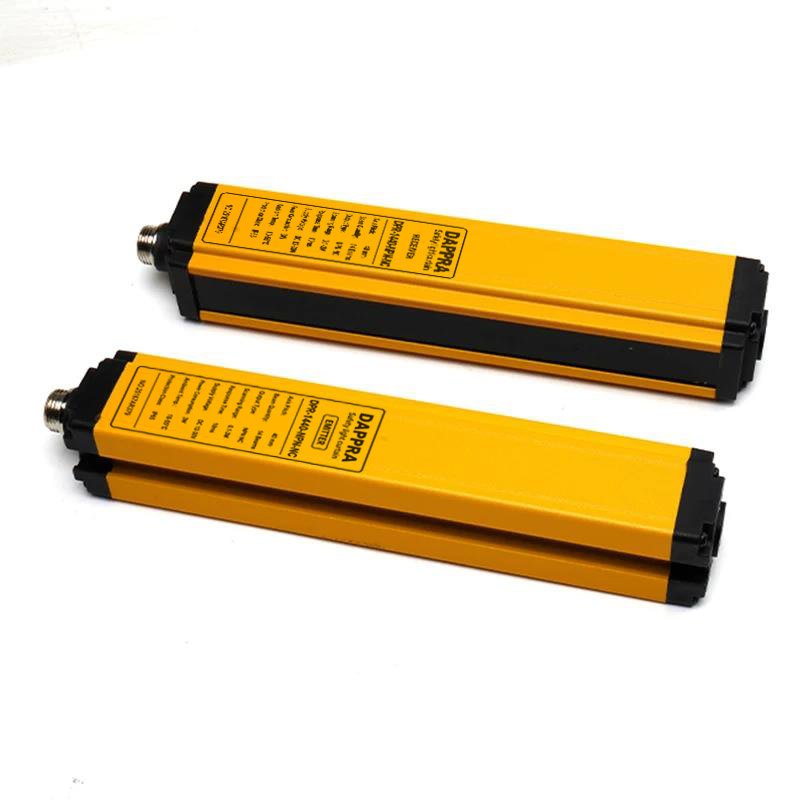

The sensor system consists of two primary components: an emitter and a receiver. The emitter projects an array of infrared light beams towards the receiver. When an object enters the detection zone and interrupts one or more of these beams, the receiver detects the change in light intensity and triggers a corresponding output signal. This “light curtain” effect allows the sensor to monitor a plane of detection, making it ideal for applications where objects can enter from various positions within the protected area.

The DPR-1440-NPN-NC is engineered for industrial environments, featuring a rugged aluminum alloy housing with an IP65 protection rating. This ensures resistance to dust, water jets, and oil contamination, making it suitable for use in demanding settings such as machining centers, packaging lines, and automotive assembly plants. The sensor also incorporates anti-vibration and anti-interference designs, which are critical for maintaining stable operation in environments with heavy machinery and electromagnetic noise.

2. Decoding the Model Number

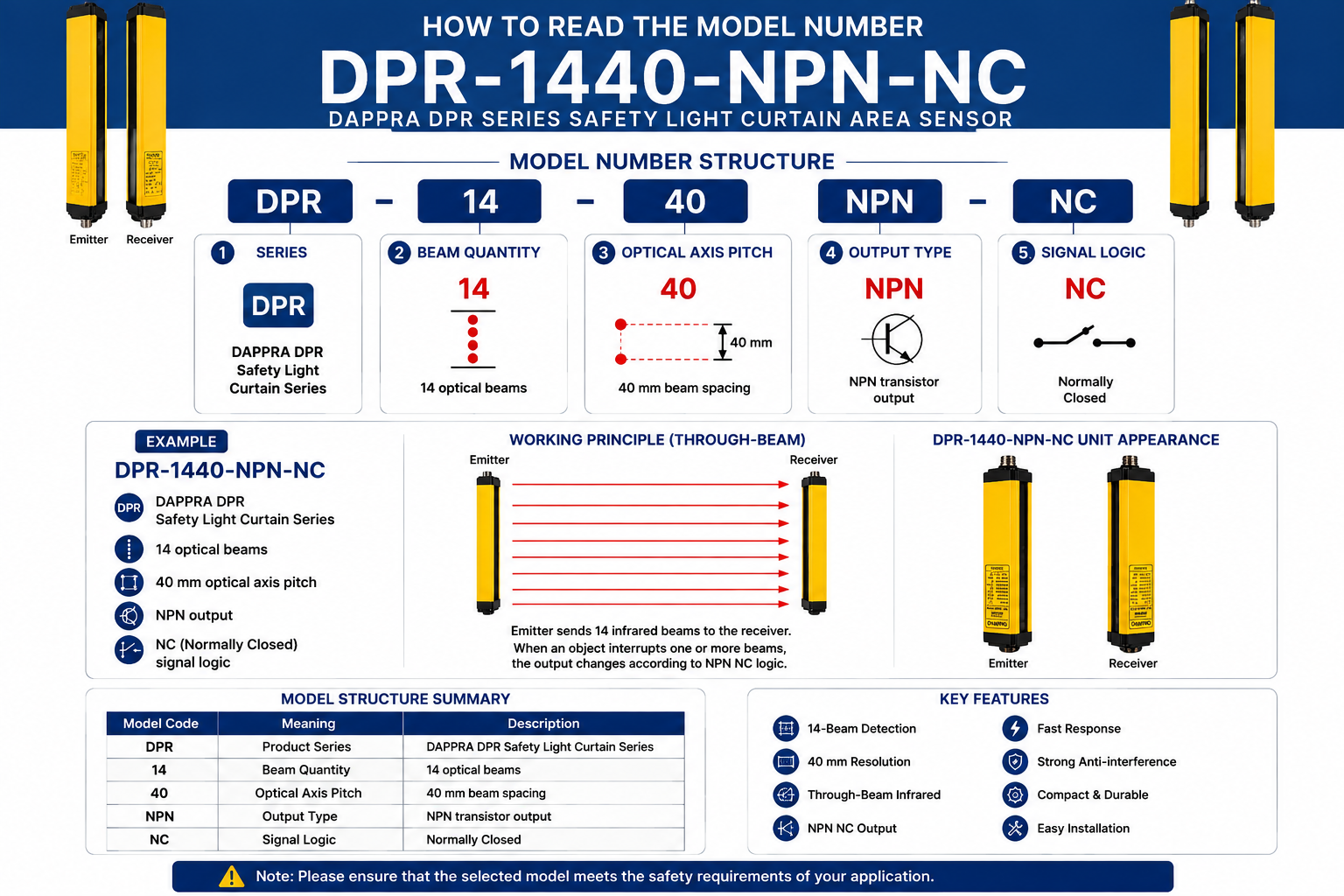

The model number “DPR-1440-NPN-NC” provides immediate insight into the sensor’s key configuration parameters. Understanding this nomenclature is the first step in selecting the correct sensor for a given application.

This structured naming convention allows for quick identification of the sensor’s capabilities, facilitating easier selection and integration into existing control systems.

3. Core Technical Specifications

The technical specifications of the DPR-1440-NPN-NC define its operational envelope and performance characteristics. These parameters are critical for ensuring the sensor meets the requirements of the target application.

3.1. Protection Height and Its Calculation

The protection height is a key parameter that defines the vertical extent of the detection area. It is determined by the number of beams and the optical axis pitch. The formula for calculating the protection height is:

For the DPR-1440-NPN-NC, the calculation yields:

This protection height is suitable for a wide range of applications, including guarding access points to machinery, detecting objects on conveyors, and monitoring areas around robotic workcells. The 40 mm pitch provides a balance between detection resolution and coverage area, making the sensor effective for detecting objects as small as 40 mm in diameter.

4. Key Features and Benefits

The DPR-1440-NPN-NC incorporates several features that enhance its performance, reliability, and ease of use in industrial settings.

4.1. Multi-Beam Detection for Comprehensive Coverage

Unlike single-point sensors, the multi-beam configuration of the DPR-1440-NPN-NC creates a two-dimensional detection plane. This allows it to reliably detect objects of various sizes and shapes that enter the protected area, regardless of their position within that area. This comprehensive coverage is essential for applications where the exact path or entry point of an object is not predictable.

4.2. Fast Response Time for Real-Time Control

With a response time of less than 5 milliseconds, the DPR-1440-NPN-NC can provide near-instantaneous feedback to a control system. This rapid response is critical in high-speed automation processes, allowing for timely actions such as stopping a machine, activating an alarm, or diverting a product on a conveyor. This capability is essential for both safety and productivity.

4.3. NPN NC Output for System Compatibility

The NPN (sinking) output configuration is widely used in industrial control systems, particularly with PLCs (Programmable Logic Controllers) from various manufacturers. The Normally Closed (NC) logic means that the output is active (low, or 0V) when the beam is clear and inactive (high impedance) when a beam is interrupted. This “fail-safe” logic is often preferred in safety applications, as a power loss or cable break will result in a de-energized state (high impedance), which the PLC can interpret as a fault or a blocked condition.

4.4. Industrial-Grade Environmental Protection

The sensor’s IP65 protection rating provides resistance against dust ingress and low-pressure water jets from any direction. This makes it suitable for use in environments with washdown procedures or exposure to airborne particulates. Additionally, the oil-resistant surface coating ensures reliable operation even in applications where contact with cutting fluids or lubricants is possible.

4.5. Robust Design for Harsh Conditions

Beyond its ingress protection, the DPR-1440-NPN-NC is designed to withstand the rigors of industrial machinery. Its anti-vibration construction maintains optical alignment in high-vibration environments, while its anti-interference design ensures stable operation in the presence of electromagnetic fields generated by motors, drives, and other equipment.

4.6. Safety and Compliance Certifications

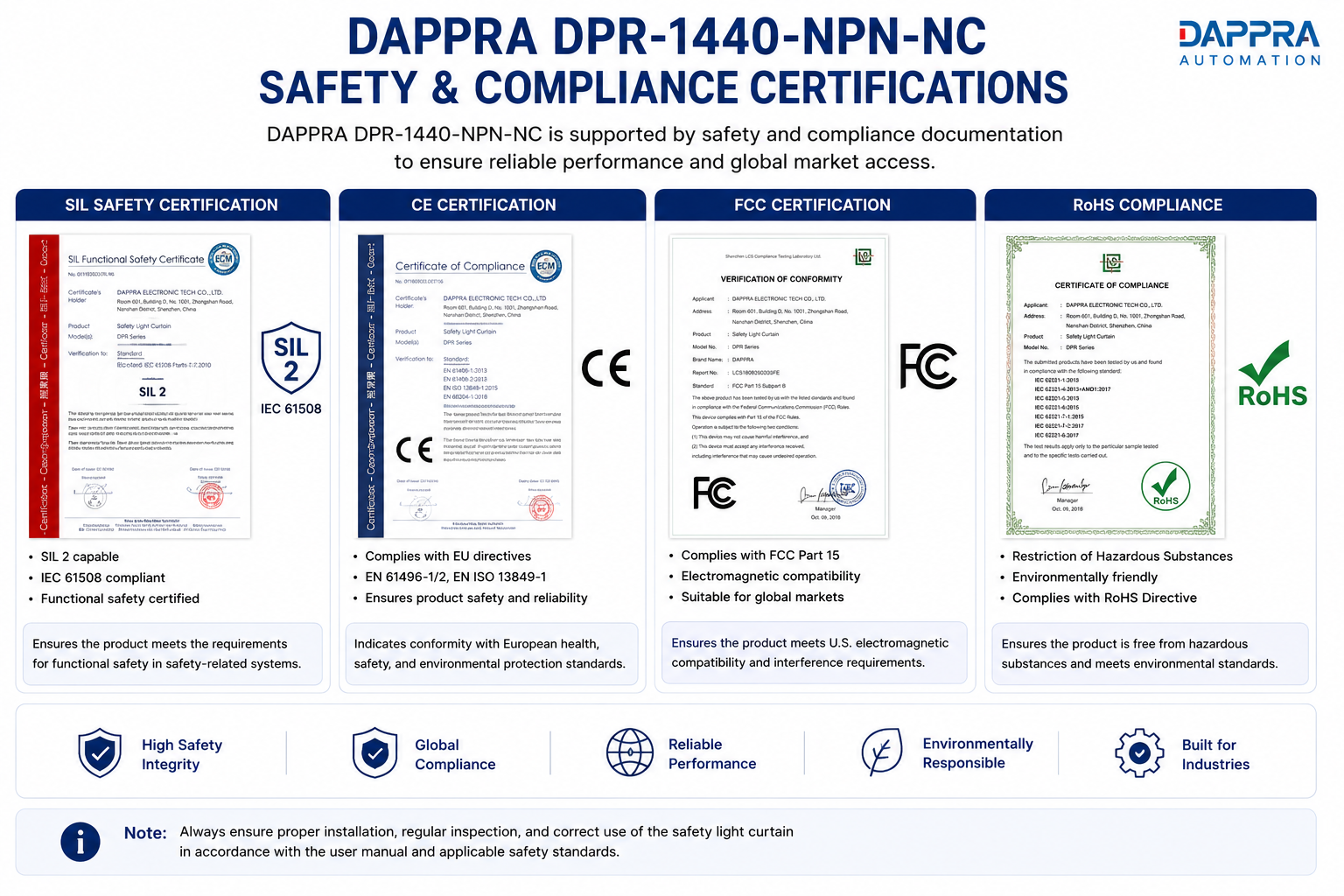

The DPR-1440-NPN-NC is certified for functional safety, providing assurance that it meets recognized standards for reliability in safety-related applications. Along with CE, FCC, and RoHS compliance, this certification underscores the sensor’s suitability for use in a global market and its adherence to high standards of quality and environmental responsibility.

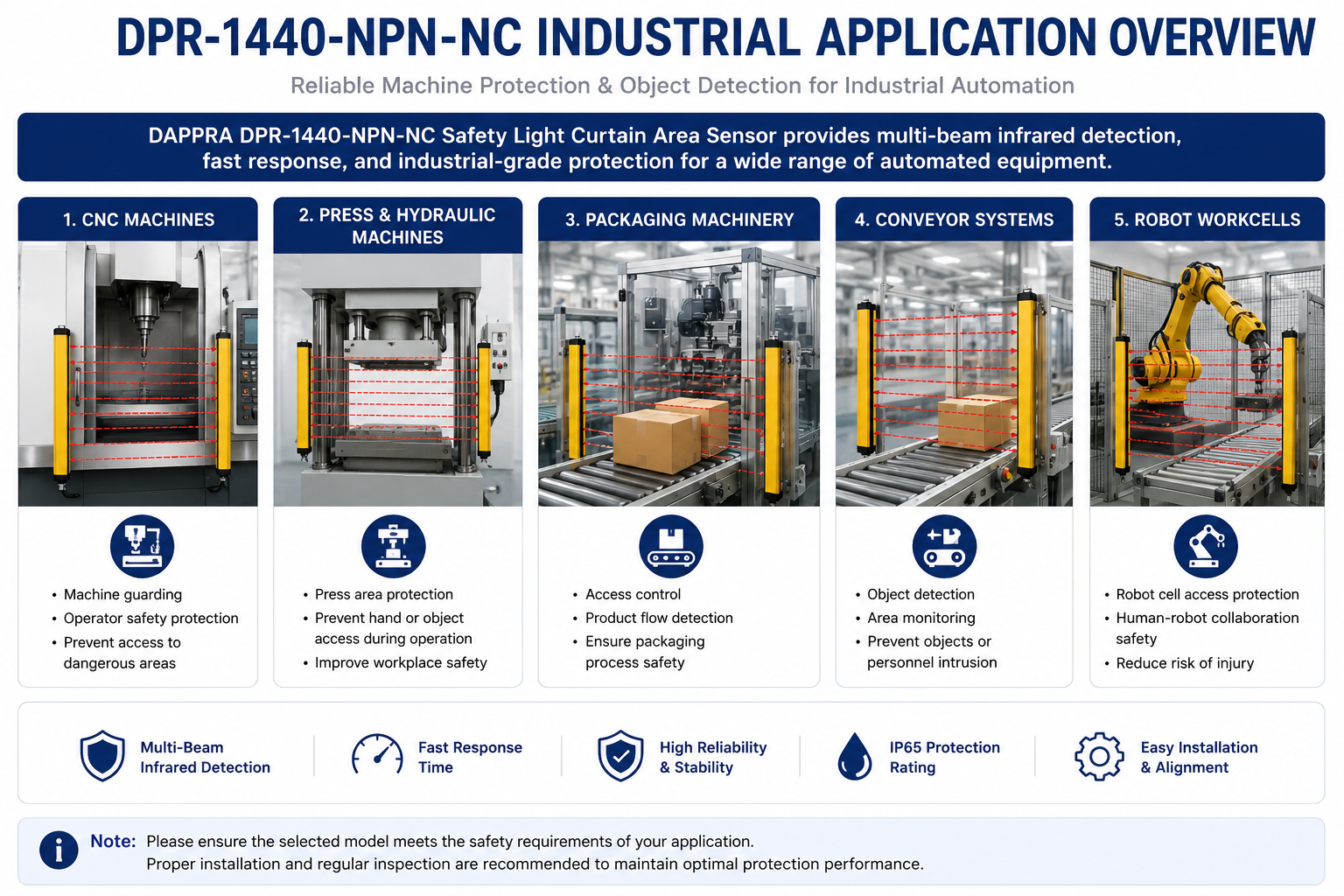

5. Industrial Applications

The versatility of the DPR-1440-NPN-NC makes it suitable for a broad spectrum of industrial applications. Its key attributes—multi-beam coverage, fast response, and robust construction—address the common requirements of equipment guarding and material handling.

5.1. Machine Guarding and Safety

One of the primary applications of the DPR-1440-NPN-NC is as a safety light curtain for guarding hazardous areas on machines. This includes:

• CNC Machining Centers: Monitoring the access points to machine enclosures to prevent operator injury during automated machining cycles.
• Presses and Hydraulic Equipment: Creating a protective barrier around stamping, forming, and cutting machines.
• Robotic Work Cells: Detecting personnel entry into a robot’s operational envelope to initiate a safety stop.
• Shearing and Cutting Machinery: Ensuring operators are at a safe distance during cutting operations.

5.2. Automation and Material Handling

Beyond safety, the sensor is used for process control and detection in automated systems:

• Packaging Machinery: Detecting the presence or absence of products on a conveyor for sorting, counting, or triggering downstream processes.
• Conveyor Systems: Monitoring material flow, detecting jams, or counting items as they pass through a detection zone.
• Automated Storage and Retrieval Systems (ASRS): Ensuring proper positioning of loads or detecting overhanging objects.
• Welding and Assembly Lines: Verifying part presence or monitoring the position of components before a manufacturing step.

5.3. Specialized and Hazardous Applications

• Woodworking Machinery: Used on saws, planers, and other equipment to detect the presence of hands or foreign objects.
• Vertical Parking Systems: Ensuring the path is clear during vehicle movement.
• Falling Object Detection: Monitoring drop zones or chutes to detect blockages or material accumulation.
• Lifting Control Machinery: Verifying clear zones before initiating lifting operations.

6. Comparison with Other Sensor Types

To appreciate the value of the DPR-1440-NPN-NC, it is helpful to understand how it compares to other common sensing technologies.

While a single-point sensor is suitable for detecting an object at a predetermined position, the area sensor excels in applications where the object could enter the protected zone at any point along its height. For instance, guarding a press opening requires a full plane of detection, which only an area sensor or safety light curtain can provide.

7. System Integration and Installation Overview

Integrating the DPR-1440-NPN-NC into an automation system is straightforward. The sensor uses a standard M12 connector for power and signal. The NPN NC output connects directly to a PLC input module configured for sinking inputs.

Key installation considerations include:

• Alignment: The emitter and receiver must be precisely aligned to ensure all beams are correctly received. The sensor includes alignment indicator LEDs to simplify this process.
• Mounting: The sensor can be mounted vertically, horizontally, or using adjustable brackets to accommodate the machine’s geometry.
• Clearance: Adequate clearance should be maintained around the housing for ventilation and maintenance.

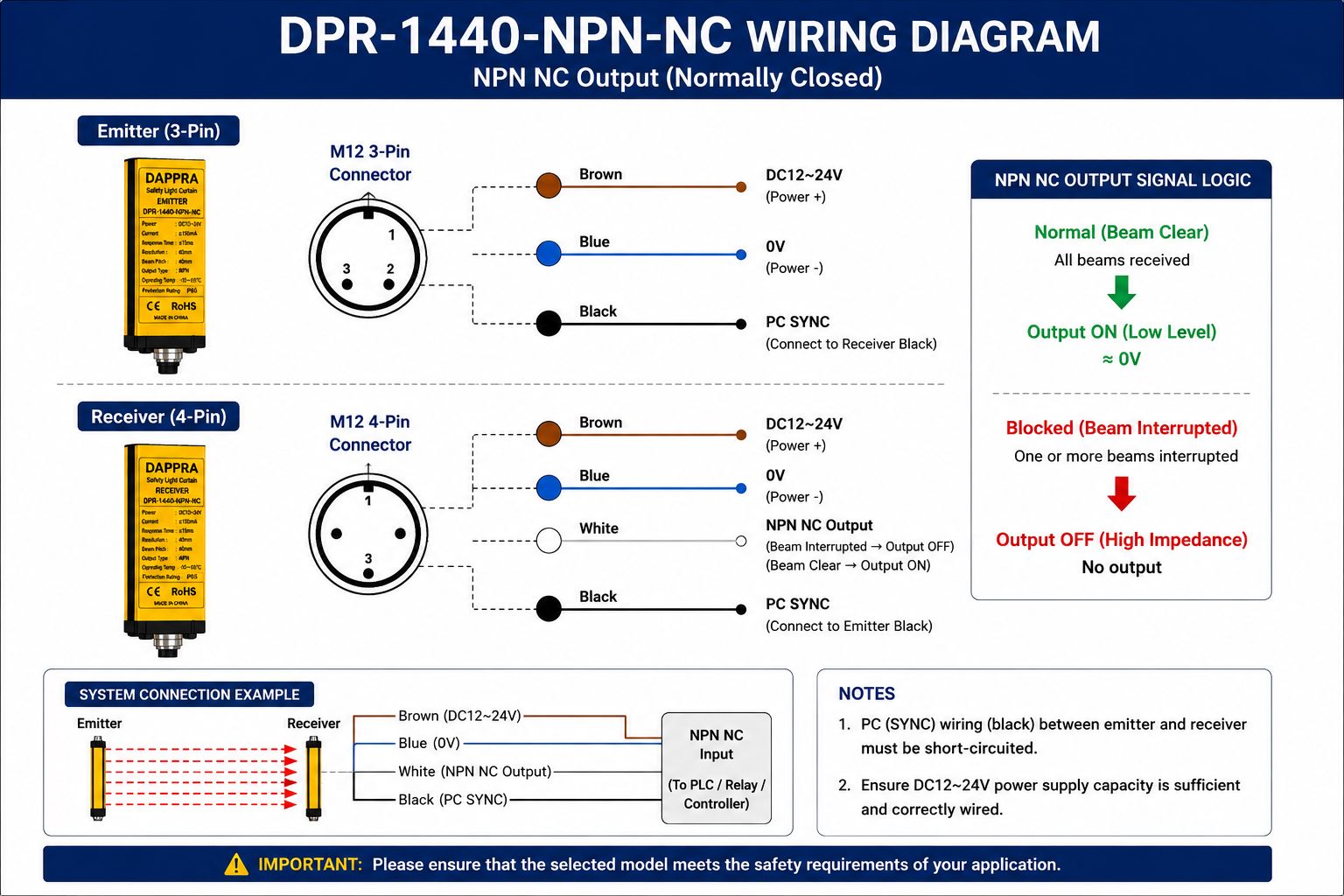

For detailed instructions, refer to the product’s installation guide, which provides comprehensive diagrams and wiring information.

8. Conclusion

The DAPPRA DPR-1440-NPN-NC is a well-engineered safety light curtain area sensor that delivers reliable performance for a wide range of industrial applications. Its combination of a 14-beam array, 40 mm pitch, fast response time, and robust IP65-rated design makes it a versatile and dependable component for both machine safeguarding and automation tasks.

By providing comprehensive coverage and seamless integration capabilities, the DPR-1440-NPN-NC helps engineers and system integrators build safer, more efficient, and more productive industrial systems. Whether you are protecting personnel, controlling material flow, or monitoring complex automated processes, the DPR-1440-NPN-NC offers a compelling solution that balances performance, durability, and cost-effectiveness.
