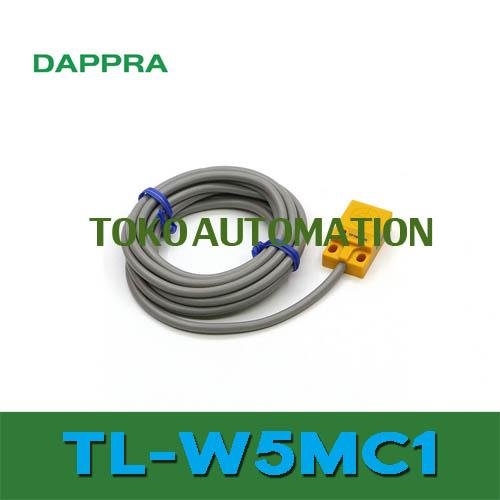

TL – W5MC1 TL-W5MC1 TL W5MC1 dappra 2M Inductive Proximity Sensor OA33
Description:
Unshielded, Square type, DC Three-wires models, Sensing distance 5 mm ±10%, NO, NPN open collector, Pre-wired models
Feature:
Sensing head size 18 mm x 10 mm x 30.5 mm
Type Square type, Unshielded
Power source DC Three-wires models
Sensing distance 5 mm ±10%
Setting distance 0 to 4 mm
Differential distance 10% max. of sensing distance
Sensing object Ferrous metal (Sensitivity lowers with non-ferrous metals.)
Standard sensing object Iron 18 x 18 x 1 mm
Response frequency 500 Hz (Average value)
Power supply voltage 12 to 24 VDC ripple (p-p) 10% max.
Operating voltage range 10 to 30 VDC
Current consumption 10 mA max.
Control output (Output type) NPN open collector
Control output (Residual voltage) 1 V max. (Load current 100 mA with cable length of 2 m)
Indicator Detection indicator (red)
Operation mode NO
