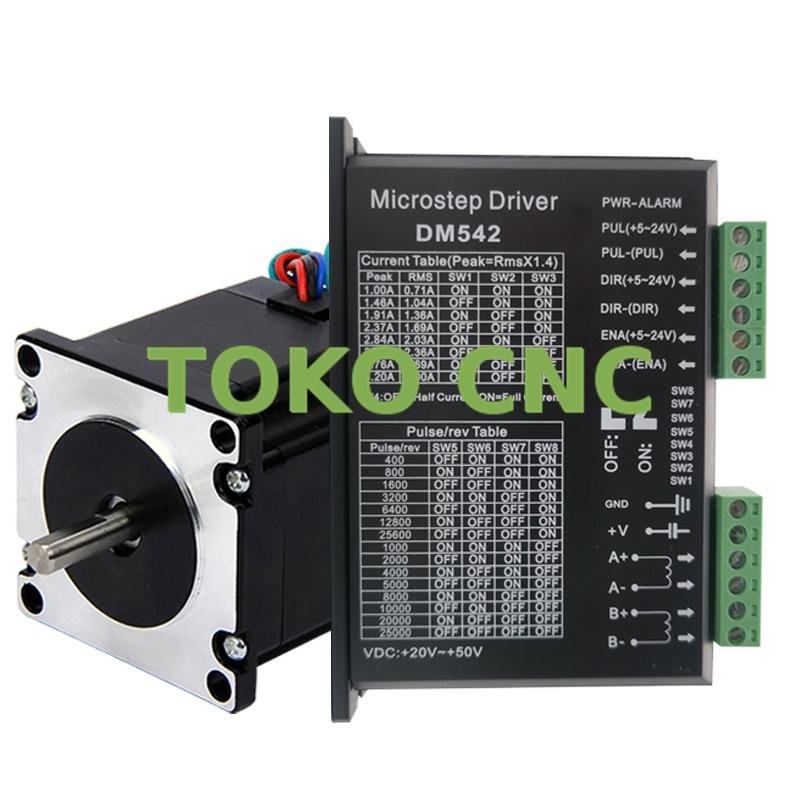

Kit 57 stepper motor nema 23 1.3 N.m 54mm + Driver DM542 4.2A KB22

Kit 57 stepper motor nema 23 1.3Nm 54mm + Driver DM542 4.2A KB22

SPEK:

57 stepper motor nema 23 1.3Nm 54mm
torque:1.3NM
current 3.5A
Motor Body height:54MM
Shaft Diameter: 8mm
D shaft axis length:18.5mm
Phase:2phase
Wire:4wires
angel:1.8 deg

Driver DM542 4.2A

● Power supply: DC 24-60 (V)
● Current maximum: 4.5A
● Output phase current:1 .5A-4.5A
● Logic input current: 1 0-20mA
● Operating temperature: -15°—+45°
● Size: 11.7*8.5cm/4.61*3.35inch
● 57 series 4.5A or less (including 4.5A) two-phase four-wire, six-wire, eight-wire stepper motor also can be used
● The drive uses a discrete component structure that supports two-phase 4-wire, 6-wire, and 8-wire as long as there is no overvoltage and wiring.
● 20KHz chopping frequency
● Optical isolation signal input
● Output current DIP switch is adjustable
● Bipolar constant current chopping method
● High segmentation: 2,4,8,16,32,64,128,256. 5,10,25,50,125,200
● TTL input signal compatible,while accepting differential signal input
