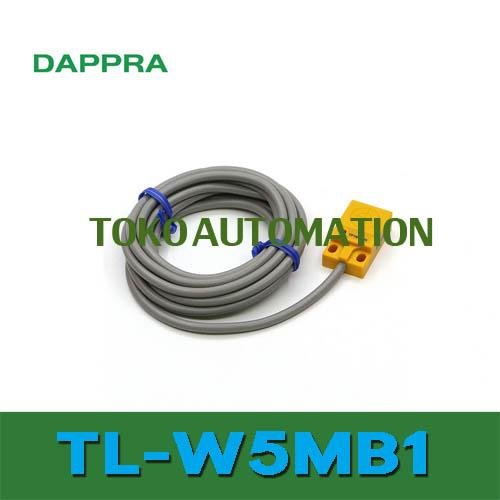

TL – W5MB1 TL-W5MB1 TL W5MB1 dappra 2M Inductive Proximity Sensor OA35

TL – W5MB1 TL-W5MB1 TL W5MB1 dappra 2M Inductive Proximity Sensor OA35

Description:
Unshielded, Square type, DC Three-wires models, Sensing distance 5 mm ±10%, NO, PNP open collector, Pre-wired models

Feature:
Sensing head size 18 mm x 10 mm x 30.5 mm
Type Square type, Unshielded
Power source DC Three-wires models
Sensing distance 5 mm ±10%
Setting distance 0 to 4 mm
Differential distance 10% max. of sensing distance
Sensing object Ferrous metal (Sensitivity lowers with non-ferrous metals.)
Standard sensing object Iron 18 x 18 x 1 mm
Response frequency 500 Hz (Average value)
Power supply voltage 12 to 24 VDC ripple (p-p) 10% max.
Operating voltage range 10 to 30 VDC
Current consumption 10 mA max.
Control output (Output type) PNP open collector
Control output (Switching capacity) at 12 VDC: 50 mA max. (30 VDC max.)
at 24 VDC: 100 mA max. (30 VDC max.)
Indicator Detection indicator (red)
Operation mode NO
