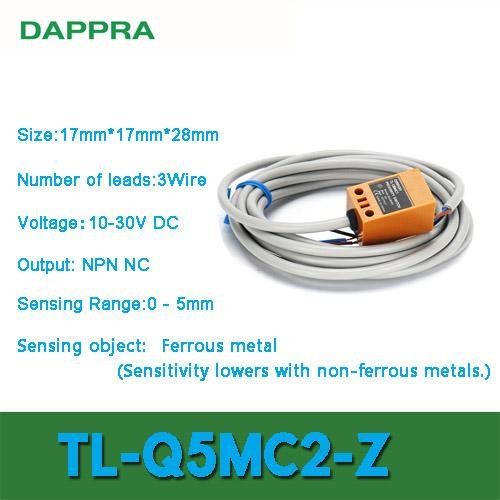

TL-Q5MC2-Z 10V-30VDC 5mm NPN NC Inductive Probe Proximity Sensor OA30

TL-Q5MC2-Z 10V-30VDC 5mm NPN NC Inductive Probe Proximity Sensor OA30

Feature:
Sensing head size 17 mm x 17 mm x 28 mm
Type Square type, Unshielded
Power source DC Three-wires models
Sensing distance 5 mm ±10%
Setting distance 0 to 4 mm
Differential distance 10% max. of sensing distance
Sensing object Ferrous metal (Sensitivity lowers with non-ferrous metals.)
Standard sensing object Iron 15 x 15 x 1 mm
Response frequency 500 Hz (Average value)
Response time 2 ms max.
Power supply voltage 12 to 24 VDC ripple (p-p) 10% max.
Operating voltage range 10 to 30 VDC
Current consumption at 24 VDC: 10 mA max.
Control output (Output type) NPN open collector
Control output (Switching capacity) 50 mA max. (30 VDC max.)
Control output (Residual voltage) 1 V max. (Load current 50 mA with cable length of 2 m)
Indicator Detection indicator (red)
Operation mode NO
Protective circuit Reverse polarity protection
Surge suppressor
Voltage influence ±2.5% max. of sensing distance at rated voltage in the rated voltage ±10% range
Insulation resistance Between charged parts and the case: 5 MΩ min. (at 500 VDC)
Dielectric strength Between charged parts and the case: 500 VAC 50/60 Hz 1 min
Shock resistance Destruction: 200 m/s2 10 times each in X, Y, and Z directions
