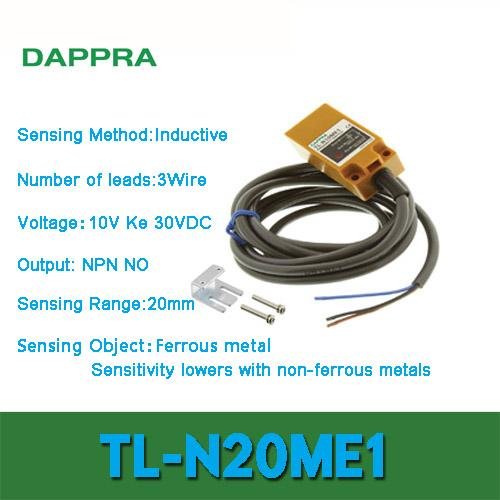

TL-N20ME1 TL – N20ME1 20MM DC NPN NO Inductive Proximity Sensor OA75

TL-N20ME1 TL – N20ME1 20MM DC NPN NO Inductive Proximity Sensor OA75

Description:
Unshielded, Square type, DC Three-wires models, Sensing distance 20 mm ±10%, NO, NPN, Pre-wired models

Feature:
Sensing head size 40 mm x 41 mm x 53 mm
Type Square type, Unshielded
Power source DC Three-wires models
Sensing distance 20 mm ±10%
Setting distance 0 to 16 mm
Differential distance 15% max. of sensing distance
Sensing object Ferrous metal (Sensitivity lowers with non-ferrous metals.)
Standard sensing object Iron 50 x 50 x 1 mm
Response frequency 40 Hz (Average value)
Power supply voltage 12 to 24 VDC ripple (p-p) 10% max.
Operating voltage range 10 to 30 VDC
Current consumption at 12 VDC: 8 mA max.
at 24 VDC: 15 mA max.
Control output (Output type) NPN
Control output (Switching capacity) at 12 VDC: 100 mA max.
at 24 VDC: 200 mA max.
Control output (Residual voltage) 1 V max. (at 200 mA load current)
Indicator Detection indicator (red)
Operation mode NO
Protective circuit Reverse polarity protection
Surge suppressor
