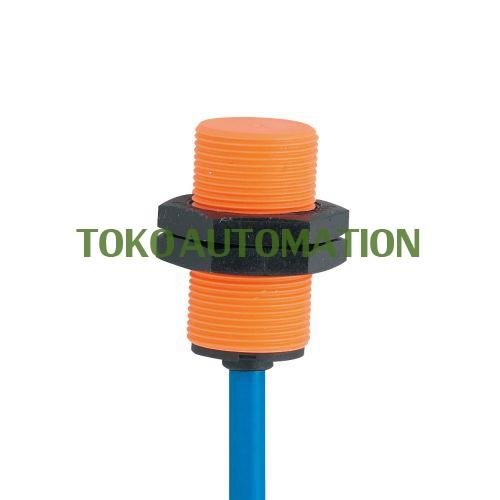

NG5016 NG 5016 M18 Inductive sensor PT02

NG5016 NG 5016 M18 Inductive sensor PT02

Description:
Inductive sensor, Plastic thread, M18 x 1, Connection to certified intrinsically safe circuits with the max. values U = 15 V / I = 50 mA / P = 120 mW, ATEX approval, Group II, category 1D, Group II, category 1G/2G, Cable, Sensing range 8 mm

Feature:
Shortcode: IG-2008-N/15M/1D/1G/2G
Electrical design: Connection to certified intrinsically safe circuits with the max. values U = 15 V / I = 50 mA / P = 120 mW
Housing materials: PBT
Protection: IP 67
Product Name: NG5016
Mounting: non-flush mountable
Ambient temperature: -20…80 °C
Connection: PVC cable / 15 m, 2 x 0.5 mm?
Length: 33 mm
SKU ODXDF5U0M35H5Y
Marking of the unit: ExII 1G Ex ia IIB T6 Ga ExII 2G Ex ia IIC T6 Gb ExII 1D Ex ia IIIC T 90°C Da
Nominal voltage: 8.2 DC, (1kΩ) V
Current rating: < 30, when used outside the hazardous area mA
Sensing range: 8 mm
Output function: Normally closed
Switching frequency: 300 Hz
