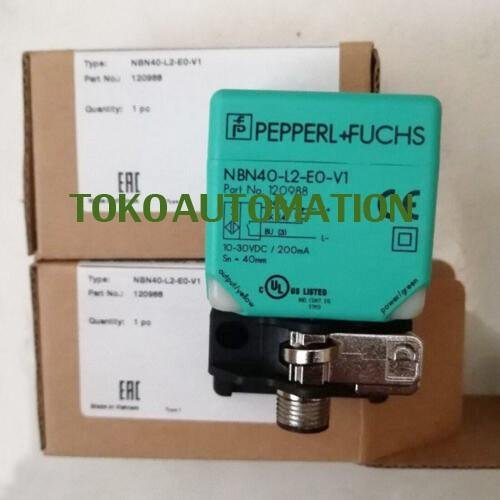

NBN40-L2-E0-V1 NBN40-L2-EO-VI 40MM PNP Inductive Proximity Sensor SH66

NBN40-L2-E0-V1 NBN40-L2-EO-VI 40MM PNP Inductive Proximity Sensor SH66

Description:
Inductive proximity sensors are the product of choice for most applications, and their range of applications requires high-precision, non-contact detection of metal targets in the field of mechanical instruments and automation equipment. As a market leader in this category, Pepperl+Fuchs offers its customers innovative, high-quality inductive proximity sensors to meet the worldwide automation and process control market. We have many years of experience in this field, flexible work, customer-oriented, and unique solutions based on the needs of different customers.

Standard Inductive Sensor Product Features:
Smooth or threaded stainless steel cylindrical housing
Reverse polarity protection and short circuit protection
LED status indication
M8, M12 connector connection or terminal wiring
PVC, PUR or silicon cable outlet
2-wire, 3-wire, 4-wire DC, AC, NAMUR output mode and AS-I bus mode output
Inductive sensor characteristics for special applications:
Signal output: 4-20 mA analog
Integrated speed monitor: up to 100 Hz
Cylindrical high pressure sensor: maximum pressure 500 bar
Sensors for hazardous areas: for gas and dust explosion protection
Stainless steel sensor surface sensor
Sensor with protection class up to IP68/ IP69k (can be immersed in water / anti-high pressure water jet)
Anti-magnetic anti-welding series: the surface material is PTFE
Sensor with attenuation factor of 1: all metals can be detected at the same distance
Iron and non-ferrous metal selection
Safety function sensor
High temperature series: -40 °C to +250 °C
General specifications
Switching element function NPN NO
Rated operating distance 40 mm
Installation non-flush
Output polarity DC
Assured operating distance 0 … 32.4 mm
Reduction factor rAl 0.3
Reduction factor rCu 0.28
Reduction factor r304 0.75
Reduction factor rBrass 0.38
