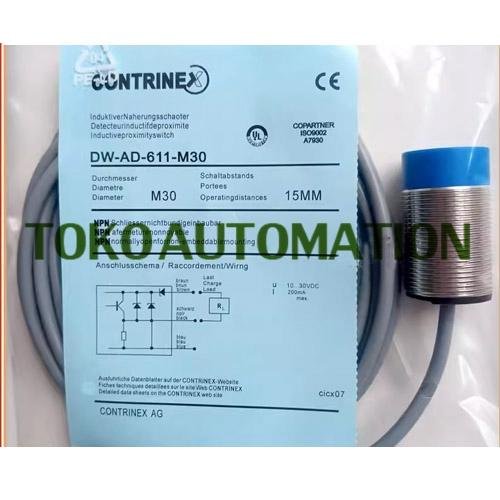

DW-AD-611-M30 M30 Sn 15mm NPN NO inductive Proximity sensor SX09

DW-AD-611-M30 M30 Sn 15mm NPN NO inductive Proximity sensor SX09

Feature:
Application Type Standard
Rated operating distance sn 15 mm
Mounting Non-embeddable
Hysteresis < 20 % sr
Repeat accuracy norm ≤ 5 % sr
Supply voltage range UB 10 … 30 VDC
Permissible ripple content ≤ 20 % UB
Output current ≤ 200 mA
Voltage drop ≤ 2 V
No-load supply current ≤ 10 mA
Off-state current ≤ 0. 1 mA
Switching frequency ≤ 700 Hz
LED Built-in
Ambient temperature range TA -25. . . +70 °C
Ambient temperature range TA US -13 … +158 °F
Temperature drift of sr ≤ 10 %
Short-circuit protection built-in
Polarity reversal protection Built-in
Power on reset Built-in
Degree of protection IP 67
Housing material Chrome-plated brass
Connection Cable
