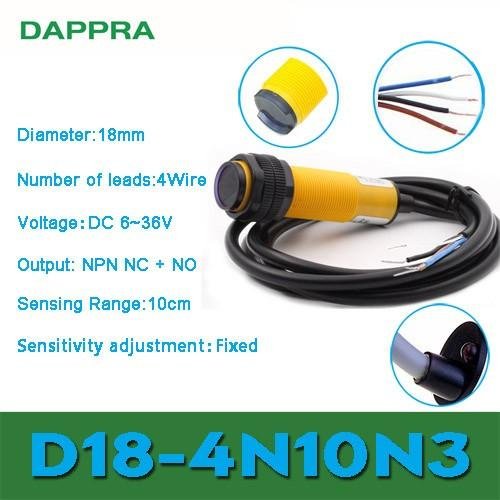

D18-4N10N3 M18 10CM DC 4Wire NPN NC NO Photoelectric Sensor OA07

D18-4N10N3 M18 10CM DC 4Wire NPN NC NO Photoelectric Sensor OA07

Feature:
Model number：D18-4N10N3
Sensing method：Diffuse reflective
Switch Appearance Type: Cylinder Type
Electrical Design: NPN
Switching Output: NC+NO
Diameter, Housing Length: 18, 60 mm
Wire Type: 4 Wire Type (Black, Brown, Whit,Blue)
Detection distance：10cm±10%
Sensitivity adjustment：Fixed
Supply voltage：6-36Vdc; 5Vdc; 90-250Vac
Rated output current：N.P Type: 300mA max;
Sensing object：Opaque object
note:Objects are not limited to metal, and all objects that reflect light (or block light) can be detected.
Response frequency：300Hz
Response time：1.5ms max
Light source：Infrared LED (660 nm)
