DOL-0804-W02M DOL 0804 W02M Plug Connectors with cable PS71

DOL-0804-W02M DOL 0804 W02M Connectors with cable PS71

Description:

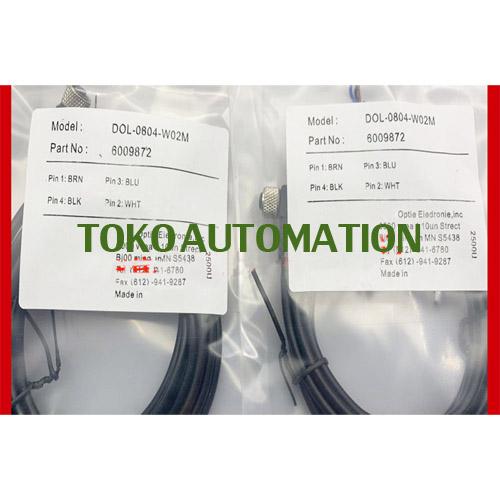

Cable receptacle DOL-0804-W02M M8, 4-pin, angled, 2m cable

Feature:
Accessory group: Plug connectors and cables
Accessory family: Connecting cable (female connector-open)
Connection type head A: Female connector, M8, 4-pin, angled
Connection type head B: Cable
Connection type: Open conductor heads
Locking nut material: Stainless steel (V4A/1.4404/316L)
Conductor cross-section: 0.25 mm?
Shielding: Unshielded
Bending radius: > 10 x cable diameter flexible use, > 5 x cable diameter (stationary position)
Tightening torque: 0.3 Nm
Reference voltage: 30 V
Current loading: 4 A
Ambient operating temperature: -40 °C … 80 °C, cable, stationary position, -40 °C … 80 °C, male connector, 5 °C … 80 °C, cable, flexible use
Enclosure rating: IP 67, IP 69K
Connector material: PVC
Connector color: Orange
Cable: 2 m, 4-pole
Jacket material: PVC
