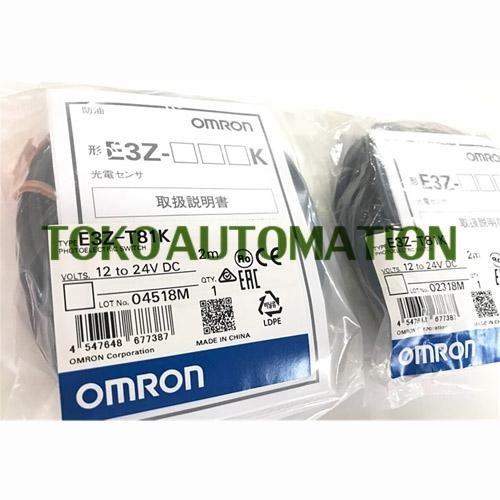

E3Z-T81K E3Z – T81K 2M 15m PNP Through beam Photoelectric Sensor SE23

E3Z-T81K E3Z – T81K 2M 15m PNP Through beam Photoelectric Sensor SE23

Description:
Through-beam type, Sensing distance 15 m, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Infrared LED (870 nm)

Feature:
Shape Square type
Sensing method Through-beam type
Sensing distance 15 m
Standard sensing object Opaque: 12 mm dia. min.
Directional angle Emitter: 3 to 15°
Receiver: 3 to 15°
Light source Infrared LED (870 nm)
Power supply voltage 12 to 24 VDC±10% ripple (p-p) 10% max.
Current consumption Emitter: 15 mA max. / Receiver: 20 mA max.
Control output:
PNP open collector
26.4 VDC max.
100 mA max.
Residual voltage: 1 V max. (Load current Less than 10 mA)
Residual voltage: 2 V max. (Load current 10 to 100 mA)
