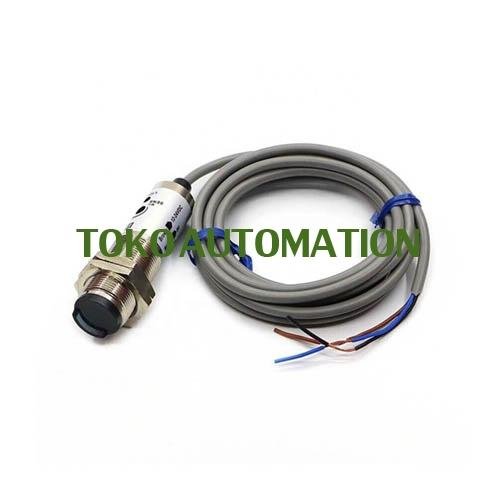

CDD-11P M18 11cm DC PNP NO infrared Photoelectric Sensor OC74

CDD-11P M18 11cm DC PNP NO infrared Photoelectric Sensor OC74

Feature:
Power Supply Voltage: DC12-24V
Output Form & Status: PNP NO
Detection Distance: 10mm
Detecting Objects: Opaque objects
Cylindrical Head Diameter: 18mm
Line Length: 1.75m
Light Source Type: Transmitting tube
Induction Method: Diffuse reflection
Protection Level: IP66
Housing Material: Copper nickel plating
Control Output: <300mA
Current Consumption: <10mA
Response Frequency: 500Hz
Residual Voltage: <1.5V
Indicator Light: Action indicator (red LED)
Insulation Resistance: >50MΩ (500VDC megohm reference)
Withstand Voltage: 1500VAC 50/60Hz 1min
Vibration Resistance: 10-55Hz (cycle one minute) amplitude 1mm X, Y, Z 2 hours in each direction
Impact Resistance: 500m/s? (50G) X, Y, Z 3 times in all directions
Operating Environment: -25~+70°C, 35-95%RH
Storage Environment: -30~+80°C, 35-95%RH
Protection Circuit: Built-in Surge Protection Circuit, Power Reverse Polarity Protection Circuit, Over Current
