Q-60C 60W AC-DC Quad Output Enclosed Switching Power Supply
Rp530,000.00
VOUCHER
Diskon 5% min. belanja Rp1JT
🔥 9 items sold in last 3 jam
45 orang sedang melihat produk ini sekarang
Tanya dulu via WhatsApp
DAPPRA Q-60C (SKU: SU59) is a 60W quad-output enclosed switching power supply delivering +5V, +15V, -5V, and -15V. Universal 85–264 VAC input, 72% typical efficiency, enclosed metal chassis, fanless cooling — ideal for industrial equipment requiring multiple DC voltage rails from a single unit.
Share:
Overview
Q-60C (SU59) Overview

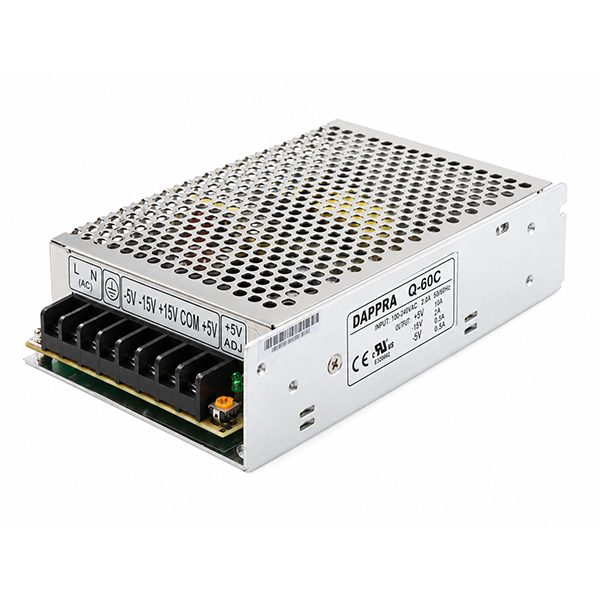

The DAPPRA Q-60C (internal code SU59) is a 60W quad-output enclosed switching power supply delivering +5V/5.5A, +15V/1.5A, -5V/0.5A and -15V/0.5A from a single chassis. It is the 60W-class Q Series variant that provides symmetric ±15V rails alongside a +5V logic rail, making it suitable for small analog instruments, op-amp circuits and signal-conditioning boards that require bipolar rails but do not need the higher current of the 120W Q-120C.
The Q-60C uses universal AC input 85–264VAC or 120–370VDC, so no input voltage selector switch is required. Efficiency is 72% typical. Free air convection cooling is used without a fan, and the enclosed metal chassis measures 159 × 97 × 38 mm for compact standalone mounting.
The four outputs share a common ground (COM). Protection includes short circuit, overload and over voltage protection. The Q-60C is suited to low-power instrumentation, laboratory equipment and mixed-signal embedded systems where a +5V digital rail and ±15V analog rails must be generated from one compact power supply.
Key Features
Q-60C Key Features
A 60W quad-output power supply with ±15V rails for small analog and instrumentation loads.
- Quad Output · +5V / +15V / -5V / -15VFour simultaneous DC rails, including symmetric ±15V for analog circuits.
- 60W Total Output PowerCH1 +5V/5.5A, CH2 +15V/1.5A, CH3 -5V/0.5A, CH4 -15V/0.5A.
- Universal AC Input85–264VAC / 120–370VDC — no input voltage selector switch required.
- 72% Typical EfficiencyAppropriate for a compact low-power quad-output chassis.
- Free Air Convection CoolingNo fan — quieter operation and less dust ingress.
- Compact 159 × 97 × 38 mm ChassisSmaller footprint for space-constrained panels.
- Complete Protection FunctionsShort circuit, overload and over voltage protection.
- -10°C to +60°C Operating RangeWith derating above +45°C or +50°C.
- 2-Year WarrantyStandard Q Series warranty.
Specifications
Q-60C (SU59) Specifications
Output Channels
| Model | Q-60C (SU59) |
| CH1 | +5V / 5.5A |
| CH2 | +15V / 1.5A |
| CH3 | -5V / 0.5A |
| CH4 | -15V / 0.5A |
| Rated Power | 60W |
| Voltage Tolerance (CH1–CH4) | ±2% / ±6% / ±6% / ±6% (typical) |
| Ripple & Noise (max.) | 100mV / 150mV / 100mV / 150mV (typical) |
Protection
| Short Circuit | Protected, auto-recovery |
| Overload | 105–150% rated output, hiccup mode, auto-recovery |
| Over Voltage | Protected, auto-recovery |
Input
| Voltage | 85–264VAC / 120–370VDC |
| Frequency | 47–63Hz |
| AC Current (typ.) | 2A @ 115VAC · 0.8A @ 230VAC |
| Efficiency (typ.) | 72% |
Isolation & Construction
| Isolation | I/P–O/P: 3000VAC |
| Cooling | Free air convection (fanless) |
| Chassis | Enclosed metal case with ventilation vents |
Environment
| Working Temperature | -10 ~ +60°C (derating above +45°C or +50°C) |
| Storage Temperature | -20 ~ +85°C |
| Working Humidity | 20–90% RH non-condensing |
| Pollution Degree | 2 |
Safety & EMC
| Safety Standards | UL / CE (confirm marking on unit) |
| Withstand Voltage | I/P–O/P: 3000VAC |
| EMC Emission | Complies with applicable EN standards (confirm on unit) |
Mechanical
| Dimensions (L×W×H) | 159 × 97 × 38 mm |
| Weight | Approx. 0.55 kg |
| Mounting | Chassis base mounting holes |
| Warranty | 2 Years |
Terminal Assignment
| Terminal | Function |
|---|---|
| FG | Frame Ground (connect to PE) |
| AC/N | AC Neutral |
| AC/L | AC Line |
| CH1 | +5V output |
| CH2 | +15V output |
| CH3 | -5V output |
| CH4 | -15V output |
| COM | Common ground |
Notes
60W quad output: +5V/5.5A, +15V/1.5A, -5V/0.5A, -15V/0.5A. Universal AC input 85–264VAC — no selector switch. 159 × 97 × 38 mm enclosed chassis, fanless. Derating above +45°C or +50°C.
Dimensions
Q-60C Dimensions
Compact enclosed metal chassis with perforated ventilation. All dimensions in mm, tolerance ±1 mm.
Mechanical
| Length (L) | 159 mm |
| Width (W) | 97 mm |
| Height (H) | 38 mm |
| Weight | Approx. 0.55 kg |
| Housing | Enclosed metal chassis with vents |
Clearances & Mounting
| Top / Bottom | 40 mm / 20 mm |
| Left / Right | 5 mm / 5 mm |
| Adjacent Heat Source | Keep at least 100 mm clearance |
| Mounting | Chassis base mounting holes |
| Cooling | Free air convection (no fan) |
Installation
Q-60C Installation
The Q-60C uses an enclosed chassis design for standalone mounting inside industrial equipment.
01 / 06
Chassis Mounting
Mount the unit on a flat metal surface using the chassis base mounting holes. Secure the unit to prevent vibration and movement.
02 / 06
Ventilation Clearance
Allow at least 5 mm left/right, 40 mm above and 20 mm below. Do not block the perforated ventilation openings.
03 / 06
Universal AC Input
The Q-60C accepts 85–264VAC directly. No input voltage selector switch is required.
04 / 06
FG to PE Required
The FG terminal must be connected to PE (Protective Earth) for safety and EMC performance.
05 / 06
Temperature & Derating
-10 to +60°C. Derate above +45°C or +50°C depending on the load distribution across the four channels.
06 / 06
Indoor Use Only
Install in a dry, well-ventilated location. Do not install near water or in high-moisture environments.
Wiring
Q-60C Wiring & Terminal
Screw-type terminal blocks for input and output. All four outputs share a common ground (COM).
Input Terminal
| Terminal | Function |
|---|---|
| FG | Frame Ground (must connect to PE) |
| AC/N | AC Neutral |
| AC/L | AC Line |
Output Terminal
| Terminal | Function |
|---|---|
| CH1 | +5V output |
| CH2 | +15V output |
| CH3 | -5V output |
| CH4 | -15V output |
| COM | Common ground |
Verify the terminal label on the unit before wiring. The ±15V rails are referenced to COM.
Wiring Specification
| Screw Torque | 5 kgf-cm (4.4 Lb-in) |
| Wire Type | Stranded copper only, 80°C minimum |
| Recommended Wire | 18–16 AWG depending on channel current |
| Screwdriver | 3 mm slotted |
| FG Connection | Must be connected to PE |
Input Configuration
| Input Type | Universal AC input |
| Voltage Range | 85–264VAC / 120–370VDC |
| Frequency | 47–63Hz |
| Inrush Current | 15A @ 115VAC · 30A @ 230VAC (cold start) |
The Q-60C uses universal AC input, so no input voltage selector switch is required. The ±15V rails are referenced to COM, not to earth ground. Do not connect the primary and secondary sides together.
Safety
Q-60C Safety & Cautions
- Qualified technician only. Do not remove the case yourself.
- Do not connect primary and secondary sides together — electric shock / arc hazard.
- Burn hazard. Do not touch the unit in operation and shortly after disconnection.
- Protect ventilation openings from foreign objects and dripping liquids.
- FG must be connected to PE (Protective Earth).
- Do not exceed the rated current on any output channel or the total 60W output power.
- Disconnect the system from supply voltage before installation, maintenance or modification.
- Component for final equipment; final EMC must be re-confirmed.
Applications
Q-60C Industrial Applications
Instrumentation
Test & Measurement
Analog / Mixed-Signal Systems
Laboratory Equipment
Embedded Systems
Process Control
Industrial Control Systems
Interface Boards
Next Step
Need the Q-60C (SU59)?
Contact DAPPRA Automation — or explore the full Q Series.
Support
Q-60C FAQ
What is the DAPPRA Q-60C (SU59)?
The Q-60C (internal code SU59) is a 60W quad-output enclosed switching power supply delivering +5V/5.5A, +15V/1.5A, -5V/0.5A and -15V/0.5A from a single chassis. It belongs to the DAPPRA Q Series and provides ±15V rails for small analog and instrumentation loads.
What are the output channels of the Q-60C?
CH1 = +5V/5.5A, CH2 = +15V/1.5A, CH3 = -5V/0.5A, CH4 = -15V/0.5A, all referenced to a common ground (COM).
What is the input voltage range of the Q-60C?
Universal AC input: 85–264VAC or 120–370VDC.
What is the efficiency of the Q-60C?
72% typical.
Does the Q-60C require a cooling fan?
No. Free air convection cooling without a fan.
What are the dimensions of the Q-60C?
159 × 97 × 38 mm (L × W × H), enclosed metal chassis with vents.
What protections does the Q-60C include?
Short circuit, overload and over voltage protection.
What is the operating temperature range of the Q-60C?
-10°C to +60°C with derating above +45°C or +50°C.
What certifications does the Q-60C have?
Typically certified to UL and CE standards. Confirm the specific marking on the DAPPRA-labeled unit.
What is the warranty period for the Q-60C?
2 years.
