Quad-Output Enclosed Switching Power Supply – Q Series
DAPPRA Enclosed Industrial Power Supply
Q Series — Quad-Output
Enclosed Switching Power Supply
The DAPPRA Q Series is a quad-output enclosed switching power supply series designed for industrial equipment requiring multiple DC voltage rails from a single unit.
The Q Series provides four simultaneous output channels in an enclosed chassis design, eliminating the need for multiple single-output power supplies. Models include 60W and 120W with universal or selectable AC input and complete protection functions.
60 / 120 W
Output Power
Quad
Output Channels
4
Model Variants per Rating
2 Years
Warranty
Overview
Q Series Overview
The DAPPRA Q Series is a quad-output enclosed switching power supply series. It is designed for industrial equipment requiring multiple DC voltage rails from a single unit, such as industrial control systems, communication equipment, and automation devices.
The Q Series provides four simultaneous output channels in an enclosed metal chassis. The Q-60 series uses universal AC input 85–264 VAC or 120–370 VDC, while the Q-120 series uses selectable AC input 88–132 VAC / 176–264 VAC by switch, or 240–370 VDC. All models feature short circuit, overload and over voltage protection with free air convection cooling.
Key Features
Q Series Key Features
Engineered for multi-output industrial power supply applications.
- Quad Output in a Single UnitProvides four simultaneous DC output channels — combining positive rails (+5V, +12V / +15V / +24V) with negative rails (-5V, -12V / -15V) — eliminating the need for multiple single-output power supplies.
- Multiple Model Variants per RatingQ-60B/C/D and Q-120B/C/D differ in their output voltage combinations and current distribution, allowing users to select the best match for their application. Q-120B is replaced by RQ-125B.
- Universal AC Input (Q-60) / Selectable AC Input (Q-120)The Q-60B/C/D use full-range universal AC input 85–264 VAC or 120–370 VDC. The Q-120B/C/D use selectable AC input 88–132 VAC / 176–264 VAC via a switch, or 240–370 VDC.
- Enclosed Metal Case with Cooling VentsFully enclosed metal chassis with perforated ventilation holes for heat dissipation and electrical safety. Suitable for standalone mounting inside industrial equipment.
- Free Air Convection CoolingNo fan is required — natural air convection cooling eliminates dust intake, acoustic noise and mechanical wear.
- Complete Protection FunctionsShort circuit protection, overload protection (105–150% rated output power, hiccup mode auto-recovery) and over voltage protection are built in.
- Fixed Switching FrequencyQ-60 series: fixed switching frequency at 35 kHz. Q-120 series: fixed switching frequency at 25 kHz.
- 2 Years WarrantyStandard 2 years warranty for all Q Series models.
Model Selection
Q Series Model Selection
Select the appropriate Q model according to the required output power, output voltage combination and current on each output channel.
The Q Series is available in 60W and 120W power ratings, each with three model variants providing different voltage and current distribution across the four output channels. Q-60B/C/D and Q-120B/C/D differ in their combination of positive and negative output voltages.
Model Code
Q
–
120
B
QSeries prefix — DAPPRA Q Series Quad-Output Enclosed Switching Power Supply.
120 — Output WattageOutput power rating in Watts: 60 / 120.
B / C / D — Model VariantIndicates different output voltage and current distribution across the four channels.
Field
Meaning
Available Values
Q
Series prefix
Q
Output Wattage
Rated output power in Watts
60 / 120
Model Variant
Output voltage and current distribution variant
B / C / D
Example: Q-120B = Q Series, 120W output power, B variant (+5V, +12V, -5V, -12V outputs).
Q-60 Series — 60W Quad Output
| Model | CH1 | CH2 | CH3 | CH4 | Rated Power | Efficiency |
|---|---|---|---|---|---|---|
| Q-60B | 5V / 5.5A | 12V / 2A | -5V / 0.5A | -12V / 0.5A | 60 W | 70% |
| Q-60C | 5V / 5.5A | 15V / 1.5A | -5V / 0.5A | -15V / 0.5A | 60 W | 72% |
| Q-60D | 5V / 4A | 12V / 1A | -5V / 1A | -12V / 0.5A | 62 W | 75% |
Q-60 series: Universal AC input 85–264 VAC or 120–370 VDC, free air convection cooling, 35 kHz fixed switching frequency. Dimensions: 159 × 97 × 38 mm.
Q-120 Series — 120W Quad Output
| Model | CH1 | CH2 | CH3 | CH4 | Rated Power | Efficiency |
|---|---|---|---|---|---|---|
| Q-120B | 5V / 11A | 12V / 4A | -5V / 1A | -12V / 1A | 120 W | 77% |
| Q-120C | 5V / 10A | 15V / 3.5A | -5V / 1A | -15V / 1A | 122.5 W | 76% |
| Q-120D | 5V / 8A | 24V / 2A | -5V / 2A | -12V / 1A | 124 W | 80% |
Q-120 series: AC input 88–132 VAC / 176–264 VAC selected by switch, or 240–370 VDC, 25 kHz fixed switching frequency. Q-120B is replaced by RQ-125B. Dimensions: 199 × 110 × 50 mm.
Dimensions
Q Series Dimensions

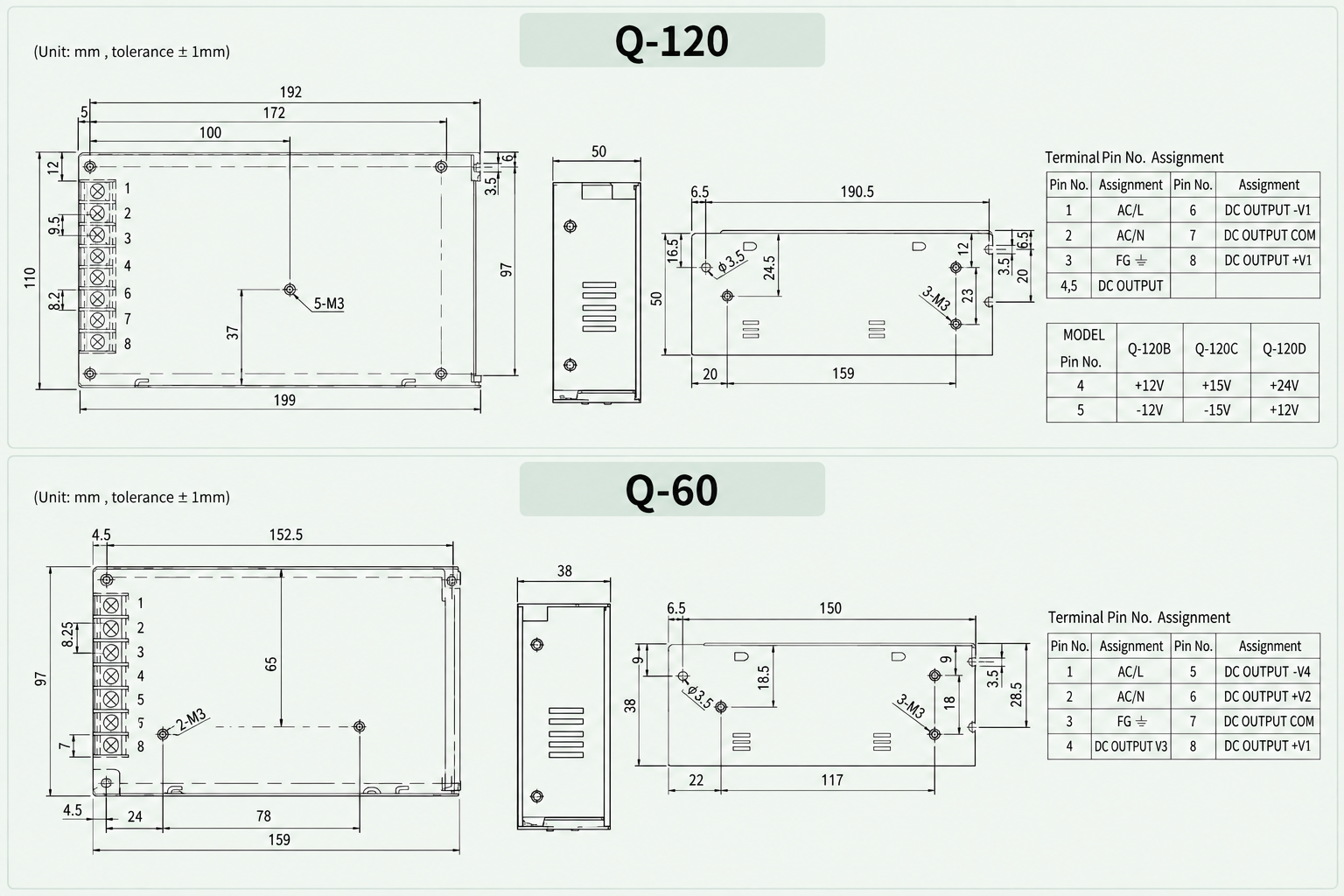

Enclosed metal chassis with perforated ventilation design. All dimensions in mm, tolerance ±1 mm.
Q-60 Series
| Length (L) | 159 mm |
| Width (W) | 97 mm |
| Height (H) | 38 mm |
| Housing | Enclosed metal chassis with vents |
| Cooling | Free air convection (no fan) |
Q-120 Series
| Length (L) | 199 mm |
| Width (W) | 110 mm |
| Height (H) | 50 mm |
| Housing | Enclosed metal chassis with vents |
| Cooling | Free air convection (no fan) |
Installation
Q Series Installation
The Q Series uses an enclosed chassis design for standalone mounting inside industrial equipment. Adequate ventilation clearance is required.
01 / 06
Chassis Mounting
Mount the unit on a flat metal surface using the mounting holes on the chassis base. Ensure the unit is securely fixed to prevent vibration and movement.
02 / 06
Ventilation Clearance
Always allow good ventilation clearances around the unit: at least 5 mm on left and right, 40 mm above and 20 mm below, to prevent overheating.
03 / 06
Heat Source Clearance
When the adjacent device is a heat source, keep 10–15 cm clearance to prevent the power supply from overheating.
04 / 06
FG Must Be Connected to PE
The FG (Frame Ground) terminal must be connected to PE (Protective Earth) for safety and to ensure proper EMC performance.
05 / 06
Operating Temperature Limits
Q-60 and Q-120 operate from -10°C to +60°C with derating above +45°C or +50°C depending on the model. Do not install near fire sources or high ambient temperature locations.
06 / 06
Indoor Use Only
Install the unit only in a dry, well-ventilated location. Do not install in places with high moisture or near water. The unit is designed for indoor industrial use.
The Q Series operates with free air convection cooling and requires adequate ventilation clearance. Ensure the perforated ventilation openings on the chassis are not blocked.
Wiring & Terminal
Q Series Wiring & Terminal
The Q Series uses screw-type terminal blocks for input and output connections. Use copper wire only and ensure all strands enter the terminal connection securely.
Terminal Pin Assignment
Input Terminal
| Terminal | Assignment |
|---|---|
| FG | Frame Ground (Protective Earth) |
| AC/N | AC Neutral Input |
| AC/L | AC Line Input |
FG must be connected to PE (Protective Earth) for safety and EMC performance.
Output Terminal
| Terminal | Assignment |
|---|---|
| CH1 | Positive rail 1 (+5V) |
| CH2 | Positive rail 2 (+12V / +15V / +24V) |
| CH3 | Negative rail 1 (-5V) |
| CH4 | Negative rail 2 (-12V / -15V) |
| COM | Common Ground |
The exact terminal layout depends on the model. Refer to the terminal label on the unit and the specific model datasheet.
The Q Series provides four output channels sharing a common ground (COM). The positive and negative rails are referenced to the COM terminal. Always verify the terminal label before wiring. Do not connect both the primary and the secondary sides together.
Wiring Specification
Recommended Wire
| AWG | Rated Current | Cross-section |
|---|---|---|
| 18 | 0–6 A | 0.75 mm² |
| 16 | 6–10 A | 1.00 mm² |
| 14 | 13–16 A | 1.52 mm² |
| 12 | 16–25 A | 2.5 mm² |
Use stranded copper wire only. Use wires that can withstand temperatures of at least 80°C.
Terminal Torque Setting
| Model Group | Torque |
|---|---|
| Q-60 Series | 5 kgf-cm (4.4 Lb-in) |
| Q-120 Series | 6.9 kgf-cm (6 Lb-in) |
Recommended screwdriver: 3 mm slotted type. Ensure all strands of each stranded wire enter the terminal connection.
Input Configuration
| Q-60 Series | Universal AC input 85–264 VAC or 120–370 VDC |
| Q-120 Series | Selectable AC input 88–132 VAC / 176–264 VAC by switch, or 240–370 VDC |
| Frequency Range | 47–63 Hz |
| Inrush Current | Cold start (refer to model datasheet) |
Output Channel Configuration
The Q Series provides four simultaneous DC output channels with a common ground (COM). Each model variant (B/C/D) uses a different combination of output voltages. Output current and output power must not exceed the rated value on the specification. Each channel has independent load regulation and voltage tolerance.
The actual wiring should follow the wiring diagram provided in the Q Series installation manual. Use copper wire only and ensure all strands enter the terminal connection securely.
Safety & Compliance
Q Series Safety & Cautions
Read and follow all safety instructions before installing, wiring, maintaining or modifying the Q Series power supply.
- Risk of electrical shock and energy hazard. All failure should be examined by a qualified technician. Do not remove the case of the power supply yourself.
- Connecting both the primary and the secondary sides together is not allowed — risk of electric arcs and electric shock (danger to life).
- Risk of burn hazard. Do not touch the unit in operation and shortly after disconnection.
- Risk of fire and short circuit. The openings should be protected from foreign objects or dripping liquids.
- The FG (Frame Ground) must be connected to PE (Protective Earth).
- Output current and output power must not exceed the rated value on its specification.
- Before commencing any installation, maintenance or modification work, disconnect the system from supply voltage. Make sure that inadvertent connection in circuit will be impossible.
- For continued protection against risk of fire, replace only with the same type and rating of fuse.
- The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
Applications
Q Series Industrial Applications
The Q Series is suitable for industrial equipment requiring multiple DC voltage rails from a single power supply unit.
Industrial Control Systems
Communication Equipment
Automation Devices
Test & Measurement
Instrumentation
Process Control
Laboratory Equipment
Mixed-Voltage Systems
Embedded Systems
Next Step
Explore the Q Series
Browse all Q Series enclosed switching power supply products, or return to the Industrial Power Supply category page.
Support
Q Series FAQ
What is the DAPPRA Q Series?
The DAPPRA Q Series is a quad-output enclosed switching power supply series designed for industrial equipment requiring multiple DC voltage rails from a single unit. It includes 60W and 120W models with various combinations of positive and negative output voltages.
What output voltages are available in the Q Series?
The Q Series provides four output channels. Q-60B and Q-120B: +5V, +12V, -5V, -12V. Q-60C and Q-120C: +5V, +15V, -5V, -15V. Q-60D: +5V, +12V, -5V, -12V. Q-120D: +5V, +24V, -5V, -12V.
What is the input voltage range of the Q Series?
The Q-60B/C/D models support a universal AC input of 85–264 VAC or 120–370 VDC. The Q-120B/C/D models use a selectable AC input of 88–132 VAC / 176–264 VAC by switch, or 240–370 VDC.
What is the switching frequency of the Q Series?
The Q-60 series uses a fixed switching frequency of 35 kHz. The Q-120 series uses a fixed switching frequency of 25 kHz.
What protections does the Q Series provide?
The Q Series provides short circuit protection, overload protection and over voltage protection.
Does the Q Series include a cooling fan?
The Q-60 and Q-120 models use free air convection cooling without a fan.
What is the operating temperature range of the Q Series?
The Q-60 and Q-120 series operate from -10°C to +60°C with derating above +45°C or +50°C, depending on the model.
What is the warranty period for the Q Series?
The Q Series comes with a 2 years warranty.
How do I choose the right Q Series model?
Select the Q model according to the required output power (60W or 120W) and the required current on each of the four output channels. Q-60B/C/D differ in voltage and current distribution; Q-120B/C/D differ in voltage and current distribution.
