Q-60B 60W AC-DC Quad Output Enclosed Switching Power Supply
Rp650,000.00
VOUCHER
Diskon 5% min. belanja Rp1JT
🔥 21 items sold in last 3 jam
68 orang sedang melihat produk ini sekarang
Tanya dulu via WhatsApp

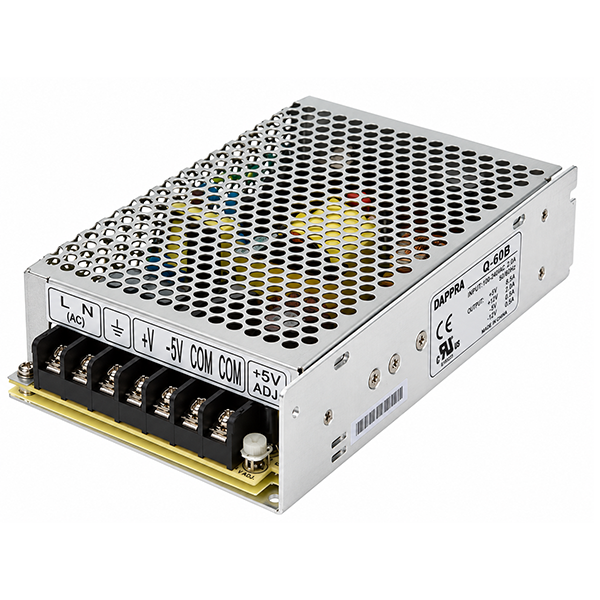

DAPPRA Q-60B (SKU: SU58) is a 60W quad-output enclosed switching power supply delivering +5V, +12V, -5V, and -12V. Universal 85–264 VAC input, 70% typical efficiency, enclosed metal chassis, fanless cooling — ideal for industrial equipment requiring multiple DC voltage rails from a single unit.
Share:
Overview
Q-60B (SU58) Overview
The DAPPRA Q-60B (internal code SU58) is a 60W quad-output enclosed switching power supply delivering +5V/5.5A, +12V/2A, -5V/0.5A and -12V/0.5A from a single chassis. It is the entry-level 60W Q Series model, providing symmetric ±5V and ±12V rails alongside a +5V logic rail — a common combination for small industrial controllers, interface boards and instruments that need bipolar analog rails.
The Q-60B uses universal AC input 85–264VAC or 120–370VDC, so no input voltage selector switch is required. Efficiency is 70% typical. Free air convection cooling is used without a fan, and the enclosed metal chassis measures 159 × 97 × 38 mm for compact standalone mounting.
The four outputs share a common ground (COM). Protection includes short circuit, overload and over voltage protection. The Q-60B is suited to low-power mixed-voltage systems where a +5V digital rail, a +12V auxiliary rail and -5V/-12V analog rails are required from one compact supply.
Key Features
Q-60B Key Features
A 60W quad-output power supply with ±5V and ±12V rails in a compact chassis.
- Quad Output · +5V / +12V / -5V / -12VFour simultaneous DC rails including symmetric ±5V and ±12V.
- 60W Total Output PowerCH1 +5V/5.5A, CH2 +12V/2A, CH3 -5V/0.5A, CH4 -12V/0.5A.
- Universal AC Input85–264VAC / 120–370VDC — no input voltage selector switch required.
- 70% Typical EfficiencyAppropriate for a compact low-power quad-output chassis.
- Free Air Convection CoolingNo fan — quieter operation and less dust ingress.
- Compact 159 × 97 × 38 mm ChassisSmaller footprint for space-constrained panels.
- Complete Protection FunctionsShort circuit, overload and over voltage protection.
- -10°C to +60°C Operating RangeWith derating above +45°C or +50°C.
- 2-Year WarrantyStandard Q Series warranty.
Specifications
Q-60B (SU58) Specifications
Output Channels
| Model | Q-60B (SU58) |
| CH1 | +5V / 5.5A |
| CH2 | +12V / 2A |
| CH3 | -5V / 0.5A |
| CH4 | -12V / 0.5A |
| Rated Power | 60W |
| Voltage Tolerance (CH1–CH4) | ±2% / ±6% / ±6% / ±6% (typical) |
| Ripple & Noise (max.) | 100mV / 120mV / 100mV / 120mV (typical) |
Protection
| Short Circuit | Protected, auto-recovery |
| Overload | 105–150% rated output, hiccup mode, auto-recovery |
| Over Voltage | Protected, auto-recovery |
Input
| Voltage | 85–264VAC / 120–370VDC |
| Frequency | 47–63Hz |
| AC Current (typ.) | 2A @ 115VAC · 0.8A @ 230VAC |
| Efficiency (typ.) | 70% |
Isolation & Construction
| Isolation | I/P–O/P: 3000VAC |
| Cooling | Free air convection (fanless) |
| Chassis | Enclosed metal case with ventilation vents |
Environment
| Working Temperature | -10 ~ +60°C (derating above +45°C or +50°C) |
| Storage Temperature | -20 ~ +85°C |
| Working Humidity | 20–90% RH non-condensing |
| Pollution Degree | 2 |
Safety & EMC
| Safety Standards | UL / CE (confirm marking on unit) |
| Withstand Voltage | I/P–O/P: 3000VAC |
| EMC Emission | Complies with applicable EN standards (confirm on unit) |
Mechanical
| Dimensions (L×W×H) | 159 × 97 × 38 mm |
| Weight | Approx. 0.55 kg |
| Mounting | Chassis base mounting holes |
| Warranty | 2 Years |
Terminal Assignment
| Terminal | Function |
|---|---|
| FG | Frame Ground (connect to PE) |
| AC/N | AC Neutral |
| AC/L | AC Line |
| CH1 | +5V output |
| CH2 | +12V output |
| CH3 | -5V output |
| CH4 | -12V output |
| COM | Common ground |
Notes
60W quad output: +5V/5.5A, +12V/2A, -5V/0.5A, -12V/0.5A. Universal AC input 85–264VAC — no selector switch. 159 × 97 × 38 mm enclosed chassis, fanless. Derating above +45°C or +50°C.
Dimensions
Q-60B Dimensions
Compact enclosed metal chassis with perforated ventilation. All dimensions in mm, tolerance ±1 mm.
Mechanical
| Length (L) | 159 mm |
| Width (W) | 97 mm |
| Height (H) | 38 mm |
| Weight | Approx. 0.55 kg |
| Housing | Enclosed metal chassis with vents |
Clearances & Mounting
| Top / Bottom | 40 mm / 20 mm |
| Left / Right | 5 mm / 5 mm |
| Adjacent Heat Source | Keep at least 100 mm clearance |
| Mounting | Chassis base mounting holes |
| Cooling | Free air convection (no fan) |
Installation
Q-60B Installation
The Q-60B uses an enclosed chassis design for standalone mounting inside industrial equipment.
01 / 06
Chassis Mounting
Mount the unit on a flat metal surface using the chassis base mounting holes. Secure the unit to prevent vibration and movement.
02 / 06
Ventilation Clearance
Allow at least 5 mm left/right, 40 mm above and 20 mm below. Do not block the perforated ventilation openings.
03 / 06
Universal AC Input
The Q-60B accepts 85–264VAC directly. No input voltage selector switch is required.
04 / 06
FG to PE Required
The FG terminal must be connected to PE (Protective Earth) for safety and EMC performance.
05 / 06
Temperature & Derating
-10 to +60°C. Derate above +45°C or +50°C depending on the load distribution across the four channels.
06 / 06
Indoor Use Only
Install in a dry, well-ventilated location. Do not install near water or in high-moisture environments.
Wiring
Q-60B Wiring & Terminal
Screw-type terminal blocks for input and output. All four outputs share a common ground (COM).
Input Terminal
| Terminal | Function |
|---|---|
| FG | Frame Ground (must connect to PE) |
| AC/N | AC Neutral |
| AC/L | AC Line |
Output Terminal
| Terminal | Function |
|---|---|
| CH1 | +5V output |
| CH2 | +12V output |
| CH3 | -5V output |
| CH4 | -12V output |
| COM | Common ground |
Verify the terminal label on the unit before wiring. All rails are referenced to COM.
Wiring Specification
| Screw Torque | 5 kgf-cm (4.4 Lb-in) |
| Wire Type | Stranded copper only, 80°C minimum |
| Recommended Wire | 18–16 AWG depending on channel current |
| Screwdriver | 3 mm slotted |
| FG Connection | Must be connected to PE |
Input Configuration
| Input Type | Universal AC input |
| Voltage Range | 85–264VAC / 120–370VDC |
| Frequency | 47–63Hz |
| Inrush Current | 15A @ 115VAC · 30A @ 230VAC (cold start) |
The Q-60B uses universal AC input, so no input voltage selector switch is required. All rails are referenced to COM, not to earth ground. Do not connect the primary and secondary sides together.
Safety
Q-60B Safety & Cautions
- Qualified technician only. Do not remove the case yourself.
- Do not connect primary and secondary sides together — electric shock / arc hazard.
- Burn hazard. Do not touch the unit in operation and shortly after disconnection.
- Protect ventilation openings from foreign objects and dripping liquids.
- FG must be connected to PE (Protective Earth).
- Do not exceed the rated current on any output channel or the total 60W output power.
- Disconnect the system from supply voltage before installation, maintenance or modification.
- Component for final equipment; final EMC must be re-confirmed.
Applications
Q-60B Industrial Applications
Industrial Control Systems
Mixed-Voltage Systems
Instrumentation
Test & Measurement
Embedded Systems
Process Control
Communication Equipment
Interface Boards
Next Step
Need the Q-60B (SU58)?
Contact DAPPRA Automation — or explore the full Q Series.
Support
Q-60B FAQ
What is the DAPPRA Q-60B (SU58)?
The Q-60B (internal code SU58) is a 60W quad-output enclosed switching power supply delivering +5V/5.5A, +12V/2A, -5V/0.5A and -12V/0.5A from a single chassis. It belongs to the DAPPRA Q Series and is the 60W-class model with ±5V and ±12V outputs.
What are the output channels of the Q-60B?
CH1 = +5V/5.5A, CH2 = +12V/2A, CH3 = -5V/0.5A, CH4 = -12V/0.5A, all referenced to a common ground (COM).
What is the input voltage range of the Q-60B?
Universal AC input: 85–264VAC or 120–370VDC.
What is the efficiency of the Q-60B?
70% typical.
Does the Q-60B require a cooling fan?
No. Free air convection cooling without a fan.
What are the dimensions of the Q-60B?
159 × 97 × 38 mm (L × W × H), enclosed metal chassis with vents.
What protections does the Q-60B include?
Short circuit, overload and over voltage protection.
What is the operating temperature range of the Q-60B?
-10°C to +60°C with derating above +45°C or +50°C.
What certifications does the Q-60B have?
Typically certified to UL and CE standards. Confirm the specific marking on the DAPPRA-labeled unit.
What is the warranty period for the Q-60B?
2 years.
