MDR-60-5 5V 10A 50W AC DC Industrial DIN Rail Power Supply
Rp320,000.00
VOUCHER
Diskon 5% min. belanja Rp1JT
🔥 14 items sold in last 3 jam
28 orang sedang melihat produk ini sekarang
Tanya dulu via WhatsApp

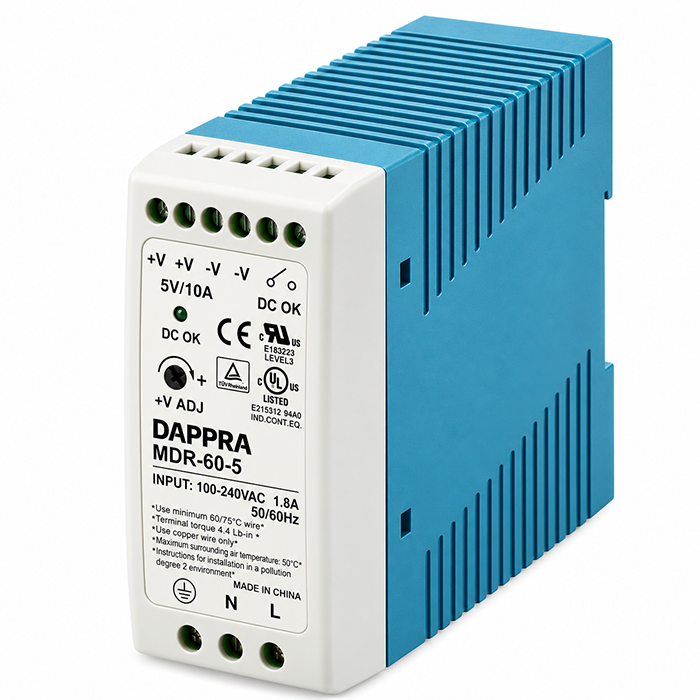

DAPPRA MDR-60-5 (SKU: OE93) is a 60W single output ultra-slim industrial DIN rail power supply with 5V DC / 12A output and universal 85–264 VAC input. Slim plastic housing, fanless natural convection cooling, complete protection functions, ideal for industrial control and automation.
Share:
Overview
MDR-60-5 Overview
The DAPPRA MDR-60-5 (SKU: OE93) is the 5V model in the 60W MDR tier. It provides 5V DC at 10A — 50W total — from a universal 85–264 VAC input in a 40 mm blue plastic housing. The “60” refers to the power class; the 5V output is current-limited at 10A, so its actual rated power is 50W, while the 12V/24V models in the same series deliver 60W at lower currents.
The high 10A output makes the MDR-60-5 suited to 5V LED strips, high-current logic arrays and shared 5V buses where the combined draw exceeds the 3A limit of the MDR-20-5. It includes active PFC, a dry DC OK relay contact (30V/1A), 5–6V +V ADJ, hiccup-mode overload protection and over-voltage shutdown (5.75–6.75V). Ripple is 80mVp-p, the lowest in the MDR-60 series, and the unit is certified for Class I Division 2 T4 hazardous locations.
Key Features
MDR-60-5 Key Features
- 50W · 5V / 10A5V DC at 10A, +V ADJ 5–6V.
- Built-in Active PFCReduces harmonic current; a feature of the MDR-60 series.
- DC OK Relay ContactDry contact 30V/1A on TB2 pins 5–6.
- Ripple 80mVp-pLowest in the MDR-60 series.
- Class I, Div 2 T4Hazardous-location certification.
- 40 mm HousingBlue plastic, 40 × 90 × 100 mm.
- TS35 DIN RailTS35/7.5 or 15, vertical only.
Specifications
MDR-60-5 Specifications
Output
| DC Voltage | 5V |
| Current | 10A |
| Power | 50W |
| Ripple | 80mVp-p |
| Adjustment | 5–6V |
| Tolerance | ±2.0% |
Input
| Voltage | 85–264VAC · 120–370VDC |
| Efficiency | 78% |
| PFC | Built-in active PFC |
| No-Load | <0.75W |
Protection
| Overload | 105–150% · Auto-recovery |
| Over Voltage | 5.75–6.75V · Shutdown |
Notes5V model is limited to 10A (50W) despite the 60W class name. +V ADJ 5–6V. Active PFC included. DC OK relay contact.
Dimensions
MDR-60-5 Dimensions
Mechanical
| Width | 40 mm |
| Height | 90 mm |
| Depth | 100 mm |
| Weight | ~0.33 kg |
Clearances
| Top/Bottom | 40 / 20 mm |
| Sides | 5 mm |
| DIN Rail | TS35/7.5 or 15 |
Installation
MDR-60-5 Installation
01 / 06
Vertical Only
Input bottom, output top.
02 / 06
Clearances
5 mm sides, 40 mm top, 20 mm bottom.
03 / 06
TS35 Rail
TS35/7.5 or 15.
04 / 06
FG to PE
Frame ground to earth.
05 / 06
Temperature
−20 to +70°C, derate above 50°C.
06 / 06
Div 2 T4
Verify hazardous-location certificate.
Wiring
MDR-60-5 Wiring
TB1
| Pin | Assignment |
|---|---|
| 1 | FG |
| 2 | AC/N |
| 3 | AC/L |
TB2 (6 Pins)
| Pin | Assignment |
|---|---|
| 1,2 | +V |
| 3,4 | −V |
| 5,6 | DC OK relay contact |
DC Output5–6V adjustable. 10A / 50W maximum. DC OK is a dry relay contact.
Safety
MDR-60-5 Safety & Cautions
- Qualified technician only.
- Do not connect primary and secondary.
- Burn hazard.
- Protect openings.
- FG to PE.
- Do not exceed 10A / 50W.
- Do not use DC OK as power output.
- Disconnect before maintenance.
Applications
MDR-60-5 Industrial Applications
5V LED Strips
High-Current Logic Arrays
Shared 5V Bus
Hazardous Locations (Div 2)
Machine Control
Building Automation
Test & Measurement
Process Control
Next Step
Need the MDR-60-5?
Contact DAPPRA Automation — or explore the full MDR Series.
Support
MDR-60-5 FAQ
What is the DAPPRA MDR-60-5?
The DAPPRA MDR-60-5 (SKU: OE93) is a 50W single-output industrial DIN rail power supply providing 5V DC at 10A from a universal 85–264VAC input, in a 40 mm blue plastic housing with 5–6V +V ADJ, DC OK relay contact, active PFC and Class I Div 2 T4 certification.
Why is the MDR-60-5 rated 50W instead of 60W?
The "60" refers to the power class. The 5V output is limited to 10A, giving 5V × 10A = 50W. The 12V and 24V models in the MDR-60 series deliver 60W at lower currents (5A and 2.5A). The 5V model's higher current (10A) comes with a lower total wattage because of the low output voltage.
What is the output voltage adjustment range of the MDR-60-5?
5–6V via the front-panel +V ADJ potentiometer. This is the narrowest adjustment window in the MDR-60 series (12V/24V models adjust to 15V/30V). Verify that connected 5V logic devices tolerate the higher 6V limit before adjusting.
Does the MDR-60-5 have built-in active PFC?
Yes. The MDR-60-5 includes built-in active power factor correction (PFC), a feature shared by the MDR-60 series but not present on the MDR-10 or MDR-20 tiers. This helps reduce harmonic current and improve power quality on the AC input.
What is the over-voltage protection threshold of the MDR-60-5?
Over-voltage protection triggers at 5.75–6.75V. The output shuts down and requires re-powering to recover. This threshold sits above the 6V maximum adjustment point, so normal potentiometer adjustment will not trigger it.
What is the typical efficiency of the MDR-60-5?
The MDR-60-5 achieves 78% typical efficiency at 230VAC input and full load, the lowest in the MDR-60 series (12V: 85%; 24V: 87%; 48V: 87%). The lower efficiency reflects the high current and low voltage of the 5V output.
What is the ripple and noise of the MDR-60-5?
Maximum 80mVp-p, measured at 20MHz bandwidth with a 0.1μF and 47μF parallel capacitor — the lowest ripple in the MDR-60 series, matching the low-voltage 5V output.
What is the input voltage range of the MDR-60-5?
85–264VAC single phase (47–63Hz) or 120–370VDC. Do not connect to 380VAC three-phase supply.
What protection functions does the MDR-60-5 include?
Short-circuit protection, overload protection (105–150%, constant-current limiting with auto-recovery) and over-voltage protection (5.75–6.75V, shutdown and re-power).
Does the MDR-60-5 have a DC OK relay contact?
Yes. TB2 pins 5 and 6 provide a dry DC OK relay contact rated 30V/1A resistive, suitable for direct PLC input.
Is the MDR-60-5 DIN rail mountable?
Yes, TS35/7.5 or TS35/15 DIN rail, 40 mm width, vertical orientation only.
What are the dimensions and weight of the MDR-60-5?
40 × 90 × 100 mm (W × H × D), approximately 0.33 kg.
What is the terminal pin assignment of the MDR-60-5?
TB1: Pin 1 = FG, Pin 2 = AC/N, Pin 3 = AC/L. TB2 (6 pins): Pins 1,2 = +V; Pins 3,4 = −V; Pins 5,6 = DC OK relay contact.
Can the MDR-60-5 supply 10A of 5V power for LED strips or high-current logic arrays?
Yes. The 10A output makes the MDR-60-5 suitable for 5V LED strips, high-current logic arrays or multiple 5V devices on a shared bus. Ensure the total combined current stays within 10A and account for voltage drop on long cable runs at 5V — at 10A, even 0.1Ω of cable resistance causes a 1V drop.
What certifications does the MDR-60-5 have?
UL508, UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS14336-1 and AS/NZS 60950.1, plus Class I Division 2 T4. Confirm certificate coverage for your destination market.
