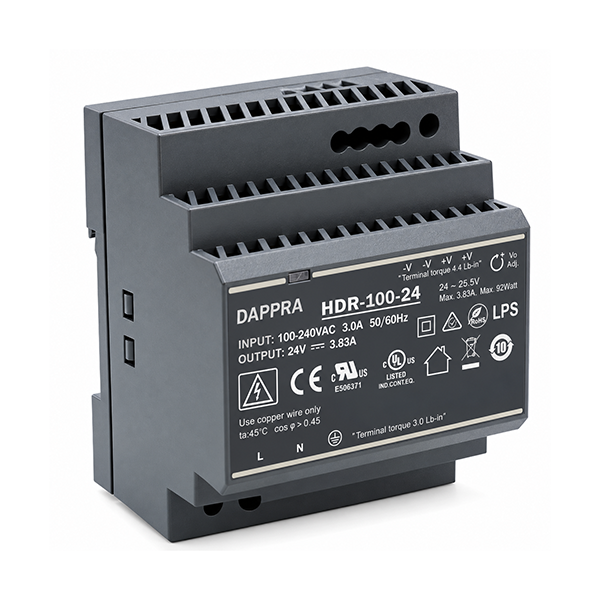

HDR-100-24 100W 24V 3.8A HDR Switch DIN Rail Power Supply
Rp350,000.00
VOUCHER
Diskon 5% min. belanja Rp1JT
🔥 21 items sold in last 3 jam
78 orang sedang melihat produk ini sekarang
Tanya dulu via WhatsApp
DAPPRA HDR-100-24 (SKU: SD97) is a 100W single output ultra-slim industrial DIN rail power supply with 24V DC / 4A output. Class II double insulation (no PE required), slim 70 mm plastic housing, <0.3W no-load consumption, TS35 DIN rail mounting — ideal for building automation and industrial control.
Share:
Overview
HDR-100-24 Overview
The DAPPRA HDR-100-24 (SKU: SD97) is a single-output ultra-slim DIN rail power supply in the HDR Series, available in two versions: the Blank type delivers 24V DC at 3.83A (92W) and passes LPS certification; the N type delivers 24V DC at 4.2A (100.8W) and is Non-LPS. Both share the same 70 mm (4SU) plastic step-shape housing, Class II double insulation, and 90% typical efficiency.
At 70 mm wide, the HDR-100-24 provides additional heat dissipation for the higher 24V current compared to the 52.5 mm HDR-60. The 6-pin terminal places AC/L (1) and AC/N (2) first, followed by −V (3,4) and +V (5,6) — verify terminal labels before wiring, as this differs from the HDR-60. Protection includes short circuit, overload (105–160% constant current limiting, auto-recovery) and over-voltage (28.8–36V, shut-off with zener clamping).
Key Features
HDR-100-24 Key Features
Available in LPS (Blank) and Non-LPS (N) versions for higher-current 24V loads.
- 92W (Blank) / 100.8W (N) · 24VBlank: 3.83A, Pass LPS, narrower adjustment. N: 4.2A, Non-LPS, wider adjustment (24–28.8V).
- 70 mm (4SU) Housing70 × 90 × 54.5 mm, DIN EN43880 height. Additional heat dissipation for 4A+ output.
- Class II Double InsulationNo FG/PE terminal, no grounding required.
- LPS or Non-LPS ChoiceBlank for LPS compliance; N for maximum 4.2A output.
- 90% Typical EfficiencyHigh efficiency reduces heat generation.
- Overload 105–160%Constant current limiting, auto-recovery.
- 6-Pin TerminalAC/L (1) / AC/N (2) / −V (3,4) / +V (5,6). AC pins first — differs from HDR-60.
Specifications
HDR-100-24 Specifications
Output (Blank / N)
| DC Voltage | 24V |
| Rated Current | 3.83A (Blank) / 4.2A (N) |
| Rated Power | 92W (Blank) / 100.8W (N) |
| Ripple | 150mVp-p |
| Adjustment (Blank) | 24–27.6V (LPS) |
| Adjustment (N) | 24–28.8V (Non-LPS) |
| Tolerance | ±1.0% |
Input
| Voltage | 85–264VAC (277VAC op.) · 120–370VDC |
| Efficiency | 90% |
| No-Load | <0.3W |
Protection
| Overload | 105–160% · Constant current limiting · Auto-recovery |
| Over Voltage | 28.8–36V · Shut off, zener clamp |
NotesBlank: 3.83A / 92W, LPS. N: 4.2A / 100.8W, Non-LPS. Class II, no PE. Efficiency 90%. AC pins 1–2.
Dimensions
HDR-100-24 Dimensions
70 mm (4SU) step-shape housing, 90 mm height per DIN EN43880. Tolerance ±0.5 mm.
Mechanical
| Width | 70 mm (4SU) |
| Height | 90 mm |
| Depth | 54.5 mm |
| Weight | ~270 g (N type) |
| Housing | Plastic, Class II |
Clearances
| Top/Bottom | 40 / 20 mm |
| Sides | 5 mm |
| DIN Rail | TS35/7.5 or 15 |
Installation
HDR-100-24 Installation
01 / 06
Vertical Only
Input bottom, output top.
02 / 06
Clearances
5 mm sides, 40 mm top, 20 mm bottom.
03 / 06
TS35 Rail
TS35/7.5 or 15.
04 / 06
Class II — No PE
No grounding required.
05 / 06
Temperature
−30 to +70°C, derate above 50°C.
06 / 06
Pollution Degree 2
Dry, ventilated cabinet.
Wiring
HDR-100-24 Wiring
TB1 (6 Pins)
| Pin | Assignment |
|---|---|
| 1 | AC/L |
| 2 | AC/N |
| 3, 4 | −V |
| 5, 6 | +V |
AC input pins first (1,2), then −V (3,4) and +V (5,6). No FG/PE.
Front Panel
| +V ADJ | 24–27.6V (Blank) / 24–28.8V (N) |
| Power LED | Yes |
| Class II | No PE |
| LPS | Blank: Pass / N: Non-LPS |
DC OutputBlank: 24–27.6V, 3.83A / 92W, LPS. N: 24–28.8V, 4.2A / 100.8W, Non-LPS. AC pins 1–2.
Safety
HDR-100-24 Safety & Cautions
- Qualified technician only.
- Do not connect primary and secondary.
- Burn hazard.
- Protect openings.
- Do not exceed rated output: Blank 3.83A / 92W; N 4.2A / 100.8W.
- Disconnect before maintenance.
- Class II — no PE, but final equipment must comply with safety/EMC.
- Verify AC/L (1) and AC/N (2) — AC pins first on HDR-100.
Applications
HDR-100-24 Industrial Applications
24V Relay Banks
24V Motor Loads
Industrial Control
Building Automation
LPS (Blank Type)
Machine Control
Process Control
Test & Measurement
Next Step
Need the HDR-100-24?
Contact DAPPRA Automation — or explore the full HDR Series.
Support
HDR-100-24 FAQ
What is the DAPPRA HDR-100-24?
The DAPPRA HDR-100-24 (SKU: SD97) is a single-output ultra-slim DIN rail power supply available in two versions: Blank type delivers 24V DC at 3.83A (92W) and passes LPS; N type delivers 24V DC at 4.2A (100.8W) and is Non-LPS. Both share a 70 mm (4SU) housing, Class II insulation, and 90% typical efficiency.
What is the difference between HDR-100-24 Blank type and N type?
Blank: 92W max, 3.83A, Pass LPS, narrower adjustment. N: 100.8W max, 4.2A, Non-LPS, wider adjustment (24–28.8V). Choose Blank for LPS; choose N for maximum 24V output.
What is the input voltage range of the HDR-100-24?
85–264VAC (277VAC operational) or 120–370VDC (390VDC operational).
What is the output voltage adjustment range of the HDR-100-24?
Blank (LPS): 24–27.6V. N (Non-LPS): 24–28.8V. Both via front-panel +V ADJ.
What is the over-voltage protection threshold of the HDR-100-24?
28.8–36V, shut-off with zener clamping; re-power to recover.
What is the overload protection behavior of the HDR-100-24?
105–160% rated output power, constant current limiting, auto-recovery after fault removed.
What is the ripple and noise of the HDR-100-24?
Maximum 150mVp-p at 20MHz bandwidth with 0.1μF & 47μF capacitor.
What are the dimensions and weight of the HDR-100-24?
70 × 90 × 54.5 mm (W × H × D), approx. 270 g (N type). The 70 mm (4SU) width provides heat dissipation for the 4A+ output.
What is the terminal pin assignment of the HDR-100-24?
TB1 (6 pins): Pin 1 = AC/L, Pin 2 = AC/N, Pins 3,4 = −V, Pins 5,6 = +V. AC pins come first — differs from HDR-60 (output first). Verify labels before wiring.
What is the no-load power consumption of the HDR-100-24?
Below 0.3W.
What is the operating temperature range of the HDR-100-24?
−30°C to +70°C with free air convection; derate above +50°C.
Can the HDR-100-24 be used without connecting protective earth?
Yes. Class II double insulated — no PE connection required. Plastic housing prevents user contact with hazards.
Does the HDR-100-24 pass LPS?
Blank type (3.83A / 92W) passes LPS. N type (4.2A / 100.8W) does not. Choose Blank if LPS compliance is required.
What certifications does the HDR-100-24 have?
UL508, UL62368-1, IEC62368-1, EN61558-2-16, EAC TP TC 004. Complies with EN61000-6-2 industrial immunity and EN61000-3-2 Class A.
How does the HDR-100-24 differ from the HDR-60-24?
HDR-100-24 raises current to 3.83A (Blank, 92W) or 4.2A (N, 100.8W) vs 2.5A (60W) on HDR-60-24. Housing widens from 52.5 mm (3SU) to 70 mm (4SU). Terminal moves AC input to pins 1–2 (instead of pins 5–6). Offers LPS (Blank) or Non-LPS (N) choice.
