IRM-05-5 5V 1A 5W PCB Mount AC-DC Power Supply Module
Rp123,000.00
Tanya dulu via WhatsApp
Share:

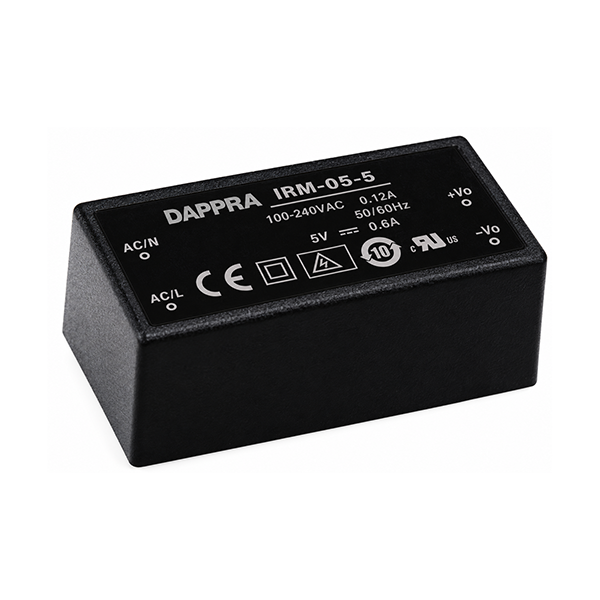

IRM-05-5 (PM93) Overview
The DAPPRA IRM-05-5 (internal code PM93) is a 5W PCB-mount AC-DC encapsulated power module delivering 5V DC at 1.0A. It is the smallest model in the IRM Series PCB-mount platform, with a compact 45.7 × 25.4 × 21.5 mm footprint that fits into very tight PCB assemblies and low-power embedded designs.
The module accepts a universal AC input range of 85–264VAC (or 120–370VDC) and provides a regulated 5V output at up to 1.0A with approximately 71% typical efficiency. It is fully encapsulated and uses free air convection cooling, making it suitable for providing a 5V logic rail directly on a control board, interface board or small electronic device without a separate external power supply.
Short circuit, overload and over voltage protection are built in. The IRM-05-5 is a Class II construction module and does not require an FG/PE connection for basic operation, simplifying PCB layout and wiring in low-power applications.
IRM-05-5 Key Features
A 5W PCB-mount 5V power module — the smallest footprint in the IRM Series.
- 5W Output · 5V / 1.0A5V DC at 1.0A for logic-level on-board loads.
- Universal AC Input 85–264VACAlso 120–370VDC.
- Compact 45.7 × 25.4 × 21.5 mm FootprintThe smallest IRM Series PCB-mount module.
- PCB-Mount Through-Hole PinsDirect soldering onto a printed circuit board.
- Fully Encapsulated ConstructionProtects against dust, moisture and vibration.
- Free Air Convection CoolingNo fan, no external heatsink.
- ~71% Typical EfficiencyAppropriate for a 5W-class module.
- Short Circuit / Overload / Over Voltage ProtectionBuilt-in protection functions.
- Class II ConstructionNo FG/PE required for basic operation.
- -30°C to +70°C Operating RangeWith derating above +50°C.
IRM-05-5 (PM93) Specifications
Output
| Model | IRM-05-5 (PM93) |
| DC Voltage | 5V |
| Rated Current | 1.0A |
| Current Range | 0–1.0A |
| Rated Power | 5W |
| Ripple & Noise (max.) | 100mVp-p |
| Voltage Tolerance | ±2.0% |
| Line Regulation | ±0.5% |
| Load Regulation | ±1.0% |
Protection
| Short Circuit | Auto-recovery |
| Overload | Hiccup mode or constant current limiting, auto-recovery |
| Over Voltage | Shutdown with auto-recovery or re-power |
Input
| Voltage | 85–264VAC / 120–370VDC |
| Frequency | 47–63Hz |
| AC Current (typ.) | 0.2A @ 115VAC · 0.12A @ 230VAC |
| Efficiency (typ.) | ~71% |
Isolation & Construction
| Isolation | I/P–O/P: 3kVAC (Class II, no FG required) |
| Encapsulation | Fully potted / encapsulated module |
| Cooling | Free air convection |
Environment
| Working Temperature | -30 ~ +70°C (derating above +50°C) |
| Storage Temperature | -40 ~ +85°C |
| Working Humidity | 20–90% RH non-condensing |
| Cooling | Free air convection |
| Pollution Degree | 2 |
Safety & EMC
| Safety Standards | UL / IEC / EN 62368-1 (confirm marking on unit) |
| Isolation Class | Class II |
| EMC Emission | EN 55032 Class B (typical) |
| EMC Immunity | EN 61000-4 series |
Mechanical
| Dimensions (L×W×H) | Approx. 45.7 × 25.4 × 21.5 mm |
| Weight | Approx. 45 g |
| Mounting | PCB through-hole pins |
| Housing | Encapsulated module |
| Warranty | 3 Years |
Pin Assignment
| Pin | Function |
|---|---|
| 1 | AC/L |
| 2 | AC/N |
| 3 | DC OUTPUT +V |
| 4 | DC OUTPUT −V |
IRM-05-5 Dimensions
Smallest IRM Series PCB-mount module. All dimensions in mm, tolerance ±1 mm.
| Length (L) | Approx. 45.7 mm |
| Width (W) | Approx. 25.4 mm |
| Height (H) | Approx. 21.5 mm |
| Weight | Approx. 45 g |
| Housing | Encapsulated module |
| Mounting | PCB through-hole pins |
| Clearance (sides) | At least 5 mm recommended |
| Clearance (top) | At least 10 mm recommended for convection |
| Soldering | Hand-solder or wave-solder per profile |
IRM-05-5 Installation
The IRM-05-5 is soldered directly onto a PCB. Correct pin orientation is essential.
PCB Through-Hole Soldering
Solder the module pins into the PCB through-hole pads. Confirm pin 1 orientation before soldering.
Pin Orientation
AC/L, AC/N, +V and −V pins must be correctly identified. Reversing AC and DC pins can destroy the module.
Thermal Clearance
Allow free air convection around the module. Keep at least 5 mm side clearance and 10 mm top clearance.
No FG/PE Required (Class II)
Class II construction. Final equipment EMC and safety must still be evaluated.
External Input Fusing
Provide an external fuse or circuit breaker on the AC input side.
Derating Above +50°C
Full rated output up to approximately +50°C ambient. Derate above +50°C.
IRM-05-5 Wiring & Pin Assignment
Four-pin PCB-mount configuration. Verify pin numbering before soldering.
| Pin | Function |
|---|---|
| 1 | AC/L |
| 2 | AC/N |
| 3 | DC OUTPUT +V |
| 4 | DC OUTPUT −V |
| AC Input | Connect AC/L and AC/N through an external fuse. |
| DC Output | Connect +V and −V to the on-board load. |
| FG/PE | Not required in Class II configuration. |
| Output Capacitor | Add a low-ESR electrolytic capacitor near the load if long traces are used. |
Do not reverse AC and DC pins. Provide external input fusing. Keep AC and DC traces separated.
IRM-05-5 Safety & Cautions
- Qualified technician only. Do not disassemble the encapsulated module.
- Risk of electric shock. Disconnect AC mains before soldering or handling.
- Do not reverse AC and DC pins — permanent damage may result.
- Provide external input fusing or branch-circuit protection.
- Burn hazard. The module body may be hot during operation.
- Do not exceed 1.0A / 5W rated output.
- Class II construction does not remove the need for final equipment EMC and safety evaluation.
- Keep ventilation clearances around the module.
- Component for final equipment; final EMC must be re-confirmed.
IRM-05-5 Applications
Need the IRM-05-5 (PM93)?
Contact DAPPRA Automation — or explore the full IRM Series.
IRM-05-5 FAQ
What is the DAPPRA IRM-05-5 (PM93)?
The IRM-05-5 (internal code PM93) is a 5W PCB-mount AC-DC encapsulated power module delivering 5V DC at 1.0A. It is the smallest model in the DAPPRA IRM Series PCB-mount platform, accepts universal 85–264VAC input, and is designed for direct soldering onto a printed circuit board.
What is the input voltage range of the IRM-05-5?
The IRM-05-5 accepts a universal AC input range of 85–264VAC (or 120–370VDC).
What output voltage and current does the IRM-05-5 provide?
The IRM-05-5 provides 5V DC at 1.0A for a rated output of 5W.
Does the IRM-05-5 require a fan?
No. The IRM-05-5 uses free air convection cooling and is fully encapsulated. No fan or external heatsink is required.
What is the efficiency of the IRM-05-5?
The IRM-05-5 achieves approximately 71% typical efficiency.
How is the IRM-05-5 mounted?
The IRM-05-5 is a PCB-mount module with pins designed for through-hole soldering directly onto a printed circuit board.
What are the dimensions of the IRM-05-5?
The IRM-05-5 measures approximately 45.7 × 25.4 × 21.5 mm (L × W × H).
What is the operating temperature range of the IRM-05-5?
The IRM-05-5 operates from -30°C to +70°C with derating required above +50°C.
What protections does the IRM-05-5 include?
The IRM-05-5 includes short circuit protection, overload protection and over voltage protection.
What certifications does the IRM-05-5 have?
The IRM Series is typically certified to UL / IEC / EN 62368-1 and related ITE safety standards.
