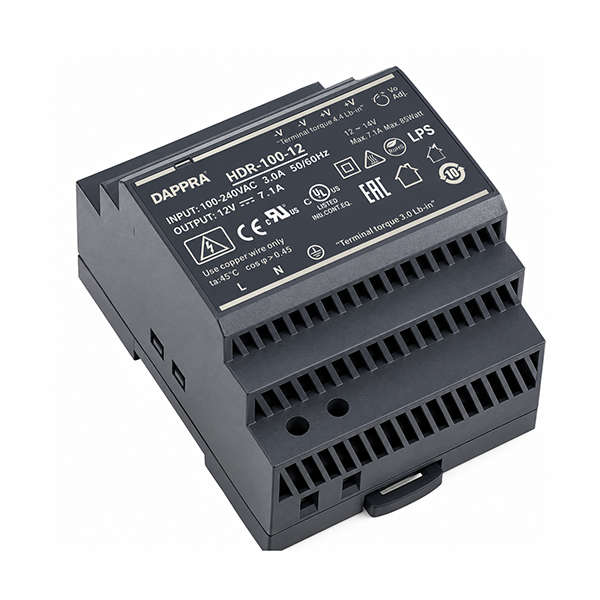

HDR-100-12 12V 7.1A 100W DIN Rail Switching Power Supply
Rp300,000.00
VOUCHER
Diskon 5% min. belanja Rp1JT
🔥 18 items sold in last 3 jam
69 orang sedang melihat produk ini sekarang
Tanya dulu via WhatsApp
DAPPRA HDR-100-12 (SKU: SD96) is a 100W single output ultra-slim industrial DIN rail power supply with 12V DC / 8.5A output. Class II double insulation (no PE required), slim 70 mm plastic housing, <0.3W no-load consumption, TS35 DIN rail mounting — ideal for building automation and industrial control.
Share:
Overview
HDR-100-12 Overview
The DAPPRA HDR-100-12 (SKU: SD96) is a single-output ultra-slim DIN rail power supply in the HDR Series, available in two versions: the Blank type delivers 12V DC at 7.1A (85.2W) and passes LPS certification; the N type delivers 12V DC at 7.5A (90W) and is Non-LPS. Both share the same 70 mm (4SU) plastic step-shape housing and Class II double insulation.
At 70 mm wide, the HDR-100-12 provides additional heat dissipation for the higher 12V current compared to the 52.5 mm HDR-60. The 6-pin terminal places AC/L (1) and AC/N (2) first, followed by −V (3,4) and +V (5,6) — verify terminal labels before wiring, as this differs from the HDR-60. Protection includes short circuit, overload (105–160% constant current limiting, auto-recovery) and over-voltage (13.5–18V, shut-off with zener clamping).
Key Features
HDR-100-12 Key Features
Available in LPS (Blank) and Non-LPS (N) versions for higher-current 12V loads.
- 85.2W (Blank) / 90W (N) · 12VBlank: 7.1A, Pass LPS, 12–13V adjustment. N: 7.5A, Non-LPS, 12–13.8V adjustment.
- 70 mm (4SU) Housing70 × 90 × 54.5 mm, DIN EN43880 height. Additional heat dissipation for 7A+ output.
- Class II Double InsulationNo FG/PE terminal, no grounding required.
- LPS or Non-LPS ChoiceChoose Blank type for LPS compliance, or N type for maximum 90W output.
- Up to 90% Typical EfficiencyHigh efficiency reduces heat generation in the cabinet.
- Overload 105–160%Constant current limiting, auto-recovery.
- 6-Pin TerminalAC/L (1) / AC/N (2) / −V (3,4) / +V (5,6). AC pins first — differs from HDR-60.
Specifications
HDR-100-12 Specifications
Output (Blank / N)
| DC Voltage | 12V |
| Rated Current | 7.1A (Blank) / 7.5A (N) |
| Rated Power | 85.2W (Blank) / 90W (N) |
| Ripple | 120mVp-p |
| Adjustment (Blank) | 12–13V (LPS) |
| Adjustment (N) | 12–13.8V (Non-LPS) |
| Tolerance | ±1.0% |
Input
| Voltage | 85–264VAC (277VAC op.) · 120–370VDC |
| Efficiency | Up to 90% |
| No-Load | <0.3W |
Protection
| Overload | 105–160% · Constant current limiting · Auto-recovery |
| Over Voltage | 13.5–18V · Shut off, zener clamp |
Notes
Blank type: 7.1A / 85.2W, LPS, 12–13V adj. N type: 7.5A / 90W, Non-LPS, 12–13.8V adj. Class II, no PE. 70 mm (4SU) width.
Dimensions
HDR-100-12 Dimensions
70 mm (4SU) step-shape housing, 90 mm height per DIN EN43880. Tolerance ±0.5 mm.
Mechanical
| Width | 70 mm (4SU) |
| Height | 90 mm |
| Depth | 54.5 mm |
| Housing | Plastic, Class II |
| Height Std. | DIN EN43880 |
Clearances
| Top/Bottom | 40 / 20 mm |
| Sides | 5 mm |
| DIN Rail | TS35/7.5 or 15 |
Installation
HDR-100-12 Installation
01 / 06
Vertical Only
Input bottom, output top.
02 / 06
Clearances
5 mm sides, 40 mm top, 20 mm bottom.
03 / 06
TS35 Rail
TS35/7.5 or 15.
04 / 06
Class II — No PE
No grounding required.
05 / 06
Temperature
−30 to +70°C, derate above 50°C.
06 / 06
Pollution Degree 2
Dry, ventilated cabinet.
Wiring
HDR-100-12 Wiring
TB1 (6 Pins)
| Pin | Assignment |
|---|---|
| 1 | AC/L |
| 2 | AC/N |
| 3, 4 | −V |
| 5, 6 | +V |
AC input pins first (1,2), then output −V (3,4) and +V (5,6). This differs from the HDR-60 (−V, +V, AC). Verify terminal labels before wiring. No FG/PE.
Front Panel
| +V ADJ | 12–13V (Blank) / 12–13.8V (N) |
| Power LED | Yes |
| Class II | No PE |
| LPS | Blank: Pass / N: Non-LPS |
DC Output
Blank: 12–13V, 7.1A / 85.2W, LPS. N: 12–13.8V, 7.5A / 90W, Non-LPS. AC pins 1–2.
Safety
HDR-100-12 Safety & Cautions
- Qualified technician only.
- Do not connect primary and secondary.
- Burn hazard.
- Protect openings.
- Do not exceed rated output: Blank 7.1A / 85.2W; N 7.5A / 90W.
- Disconnect before maintenance.
- Class II — no PE, but final equipment must comply with safety/EMC.
- Verify AC/L (1) and AC/N (2) — AC pins first on HDR-100.
Applications
HDR-100-12 Industrial Applications
12V LED Lighting
12V Motor Loads
Industrial Control
Building Automation
LPS (Blank Type)
Network Equipment
Machine Control
Test & Measurement
Next Step
Need the HDR-100-12?
Contact DAPPRA Automation — or explore the full HDR Series.
Support
HDR-100-12 FAQ
What is the DAPPRA HDR-100-12?
The DAPPRA HDR-100-12 (SKU: SD96) is a single-output ultra-slim DIN rail power supply available in two versions: Blank type delivers 12V DC at 7.1A (85.2W) and passes LPS; N type delivers 12V DC at 7.5A (90W) and is Non-LPS. Both share a 70 mm (4SU) housing, Class II insulation, and up to 90% typical efficiency.
What is the difference between HDR-100-12 Blank type and N type?
Blank: 85.2W max, 7.1A, Pass LPS, 12–13V adjustment. N: 90W max, 7.5A, Non-LPS, 12–13.8V adjustment. Choose Blank for LPS compliance; choose N for maximum 12V output.
What is the input voltage range of the HDR-100-12?
85–264VAC (277VAC operational) or 120–370VDC (390VDC operational).
What is the output voltage adjustment range of the HDR-100-12?
Blank (LPS): 12–13V. N (Non-LPS): 12–13.8V. Both via front-panel +V ADJ.
What is the over-voltage protection threshold of the HDR-100-12?
13.5–18V, shut-off with zener clamping; re-power to recover.
What is the overload protection behavior of the HDR-100-12?
105–160% rated output power, constant current limiting, auto-recovery after fault removed.
What is the ripple and noise of the HDR-100-12?
Maximum 120mVp-p at 20MHz bandwidth with 0.1μF & 47μF capacitor.
What are the dimensions and weight of the HDR-100-12?
70 × 90 × 54.5 mm (W × H × D). The 70 mm (4SU) width provides heat dissipation for the higher output.
What is the terminal pin assignment of the HDR-100-12?
TB1 (6 pins): Pin 1 = AC/L, Pin 2 = AC/N, Pins 3,4 = −V, Pins 5,6 = +V. AC pins come first — differs from HDR-60 (output first). Verify labels before wiring.
What is the no-load power consumption of the HDR-100-12?
Below 0.3W.
What is the operating temperature range of the HDR-100-12?
−30°C to +70°C with free air convection; derate above +50°C.
Can the HDR-100-12 be used without connecting protective earth?
Yes. Class II double insulated — no PE connection required. Plastic housing prevents user contact with hazards.
Does the HDR-100-12 pass LPS?
The Blank type (7.1A / 85.2W) passes LPS. The N type (7.5A / 90W) does not. Choose Blank if LPS compliance is required.
What certifications does the HDR-100-12 have?
UL508, UL62368-1, IEC62368-1, EN61558-2-16, EAC TP TC 004. Complies with EN61000-6-2 industrial immunity and EN61000-3-2 Class A.
How does the HDR-100-12 differ from the HDR-60-12?
HDR-100-12 raises current to 7.1A (Blank, 85.2W) or 7.5A (N, 90W) vs 4.5A (54W) on HDR-60-12. Housing widens from 52.5 mm (3SU) to 70 mm (4SU). Terminal moves AC input to pins 1–2 (instead of pins 5–6). Offers LPS (Blank) or Non-LPS (N) choice.
