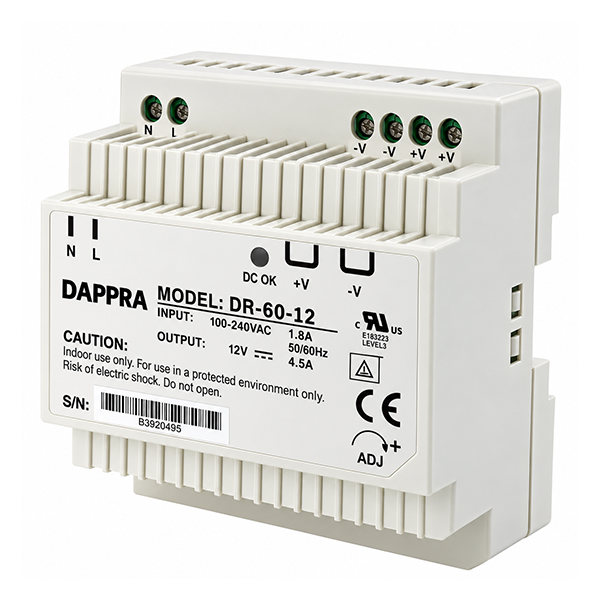

DR-60-12 60W 12V 4.5A Class II DIN Rail Power Supply
Rp210,000.00
VOUCHER
Diskon 5% min. belanja Rp1JT
🔥 13 items sold in last 3 jam
18 orang sedang melihat produk ini sekarang
Tanya dulu via WhatsApp
DAPPRA DR-60-12 (SKU: PM22) is a 60W single output classic step-shape industrial DIN rail power supply with 12V DC / 4.5A output. Class II double insulation (no PE required), slim 78 mm plastic housing, fanless natural convection cooling, TS35 DIN rail mounting — ideal for building automation and general industrial control.
Share:
Overview
DR-60-12 Overview
The DAPPRA DR-60-12 (SKU: PM22) is a 54W single-output Class II double-insulated DIN rail power supply in the DR Series. It provides a stable 12V DC output at 4.5A from a universal 85–264 VAC input or 120–370 VDC input, with 82% typical efficiency and a ±10% output adjustment range of 10.8–13.8V.
Sharing the same 78 mm wide plastic step-shape housing as the DR-30 and DR-60-24, the DR-60-12 is a Class II double-insulated solution — no FG/PE terminal is provided and no grounding connection is required. It is well-suited to 12V LED strips, 12V relays and building automation loads up to 4.5A. Protection includes short circuit, overload (105–150% constant current limiting, auto-recovery) and over-voltage (14.2–16.2V, shut-down and re-power). Ripple is 120mVp-p and no-load consumption is below 0.5W.
Key Features
DR-60-12 Key Features
Engineered for 12V loads up to 4.5A in Class II building and industrial control cabinets.
- 54W Output · 12V / 4.5A12V DC at 4.5A (0–4.5A), 54W. +V ADJ 10.8–13.8V.
- Class II Double InsulationPlastic step-shape housing, no FG/PE terminal, no grounding required.
- Universal AC Input 85–264VACFull-range single-phase input; also 120–370 VDC.
- 82% Typical EfficiencyReduces energy consumption and heat.
- 78 mm Step-Shape Housing78 × 93 × 56 mm; shared with DR-30 and DR-60-24.
- Fanless Natural Convection CoolingNo dust intake, no acoustic noise.
- Overload 105–150%Constant current limiting, auto-recovery.
- No-Load <0.5WEnergy-efficient standby.
- TS35 DIN Rail · UL508 · 3-Year WarrantyStandard TS35/7.5 or TS35/15 rail.
Specifications
DR-60-12 Specifications
Output
| DC Voltage | 12V |
| Rated Current | 4.5A |
| Current Range | 0–4.5A |
| Rated Power | 54W |
| Ripple | 120mVp-p |
| Adjustment | 10.8–13.8V |
| Tolerance | ±1.0% |
Input
| Voltage | 85–264VAC · 120–370VDC |
| Efficiency | 82% |
| No-Load | <0.5W |
| AC Current (Typ.) | 1.4A/115VAC · 0.8A/230VAC |
Protection
| Overload | 105–150% · Constant current limiting · Auto-recovery |
| Over Voltage | 14.2–16.2V · Shut down, re-power to recover |
| Short Circuit | Protected |
Environment
| Working Temperature | −20 ~ +60°C (Derating above +40°C) |
| Working Humidity | 20–90% RH non-condensing |
| Storage Temp., Humidity | −40 ~ +85°C, 10–95% RH |
| Vibration | 10–500Hz, 2G 10min./1cycle, 60min. each axis |
Safety & EMC
| Safety Standards | UL508, TUV EN60950-1 |
| Withstand Voltage | I/P-O/P: 3KVAC |
| Isolation Class | Class II (no FG/PE) |
| EMC Emission | EN55022 Class B |
| EMC Immunity | EN61000-6-2 industrial immunity |
Reliability & Dimensions
| Dimensions (W×H×D) | 78 × 93 × 56 mm |
| Weight | Approx. 0.3 kg |
| Housing | Plastic, step-shape, Class II |
| Warranty | 3 Years |
Front Panel
| +V ADJ | Output voltage adjustment potentiometer (10.8–13.8V) |
| LED | Power-on indicator |
| Isolation | Class II (no PE required) |
Notes
12V / 4.5A / 54W, Class II double insulated. No FG/PE terminal. Ripple 120mVp-p. Efficiency 82%. Derating above +40°C.
Dimensions
DR-60-12 Dimensions
78 mm step-shape plastic housing, 93 mm height. All dimensions in mm, tolerance ±1 mm.
Mechanical
| Width (W) | 78 mm |
| Height (H) | 93 mm |
| Depth (D) | 56 mm |
| Weight | Approx. 0.3 kg |
| Housing | Plastic, Class II |
Clearances
| Top/Bottom | 40 / 20 mm |
| Sides | 5 mm |
| DIN Rail | TS35/7.5 or 15 |
| Adjacent Heat Source | 100–150 mm recommended |
Installation
DR-60-12 Installation
01 / 06
Mounting Orientation
Input terminals on the right, output on the left.
02 / 06
Ventilation Clearance
5 mm sides, 40 mm top, 20 mm bottom. 100–150 mm from heat sources.
03 / 06
TS35 Rail
TS35/7.5 or 15. Tilt, fit, slide, lock, check.
04 / 06
Class II — No PE
No grounding required.
05 / 06
Temperature
−20 to +60°C, derate above +40°C.
06 / 06
Pollution Degree 2
Dry, ventilated control cabinet.
Wiring
DR-60-12 Wiring
TB1 — Input
| Pin | Assignment |
|---|---|
| 1 | AC/N |
| 2 | AC/L |
TB2 — Output
| Pin | Assignment |
|---|---|
| +V | DC OUTPUT +V |
| −V | DC OUTPUT −V |
| LED | Power-on indicator |
| ADJ | +V ADJ potentiometer |
Class II model — no FG/PE terminal. Verify terminal labels before wiring.
DC Output Voltage Adjustment
The DR-60-12 includes a front-panel +V ADJ potentiometer with a 10.8–13.8V range. Output current and wattage must not exceed the rated 4.5A / 54W.
Safety
DR-60-12 Safety & Cautions
- Qualified technician only.
- Do not connect primary and secondary.
- Burn hazard.
- Protect openings.
- Do not exceed 4.5A / 54W.
- Disconnect before maintenance.
- Class II — no PE, but final equipment must comply with safety/EMC.
- Component for final equipment; re-confirm EMC.
Applications
DR-60-12 Industrial Applications
12V LED Strips
12V Relays
Building Automation
Household Control
Industrial Control
Security Systems
Network Equipment
Machine Control
Next Step
Need the DR-60-12?
Contact DAPPRA Automation — or explore the full DR Series.
Support
DR-60-12 FAQ
What is the DAPPRA DR-60-12?
The DAPPRA DR-60-12 (SKU: PM22) is a 54W single-output Class II double-insulated DIN rail power supply providing 12V DC at 4.5A. It features a 78 mm wide plastic step-shape housing, universal 85–264VAC input, 82% typical efficiency, and requires no grounding connection.
What is the input voltage range of the DR-60-12?
85–264VAC (single phase) or 120–370VDC.
Is the DR-60-12 Class II double insulated?
Yes. Class II double insulated with a plastic step-shape housing. No FG/PE terminal and no grounding connection required, simplifying installation in building automation and household control systems.
Why is the DR-60-12 rated 54W instead of 60W?
The "60" refers to the power class. The 12V output is limited to 4.5A, giving 12V × 4.5A = 54W. The 15V/24V models in the same DR-60 housing deliver 60W at lower currents. The 12V model operates at lower total wattage because of the 4.5A current limit chosen for this output voltage.
What is the output voltage adjustment range of the DR-60-12?
10.8–13.8V via the front-panel +V ADJ potentiometer (±10% of 12V). Sufficient for voltage-drop compensation without exceeding the tolerance of most 12V devices.
What is the over-voltage protection threshold of the DR-60-12?
Approximately 14.2–16.2V (118–135% of 12V). The output shuts down and requires re-powering to recover.
What is the overload protection behavior of the DR-60-12?
105–150% rated output power, constant current limiting, auto-recovery after fault removed.
What is the ripple and noise of the DR-60-12?
Maximum 120mVp-p at 20MHz bandwidth with 0.1μF & 47μF parallel capacitor.
What are the dimensions and weight of the DR-60-12?
78 × 93 × 56 mm (W × H × D), approximately 0.3 kg. The 78 mm width is shared with the DR-30 and DR-60-24 models.
What is the terminal pin assignment of the DR-60-12?
TB1 (Input): AC/N and AC/L. TB2 (Output): DC OUTPUT +V, DC OUTPUT −V, LED indicator, and +V ADJ. No FG/PE terminal (Class II). Verify terminal labels before wiring.
What is the no-load power consumption of the DR-60-12?
Below 0.5W, supporting energy-efficient standby operation.
What is the operating temperature range of the DR-60-12?
−20°C to +60°C with free air convection cooling. Derating is required above +40°C ambient.
Can the DR-60-12 be used without connecting protective earth?
Yes. Class II double insulated — no protective earth connection required. The plastic housing prevents user contact with electrical hazards.
What certifications does the DR-60-12 have?
UL508 (industrial control equipment) and TUV EN60950-1. Complies with EN61000-6-2 industrial immunity, EN55022 Class B EMC emission and EN61000-3-2 harmonic current standards.
How does the DR-60-12 differ from the DR-60-24?
Both share the same 78 mm wide housing, but the DR-60-12 provides 12V at 4.5A (54W) while the DR-60-24 provides 24V at 2.5A (60W). The 12V model has lower ripple (120mVp-p vs 150mVp-p) and slightly lower efficiency (82% vs 84%). Choose by load voltage — the two outputs are not interchangeable.
