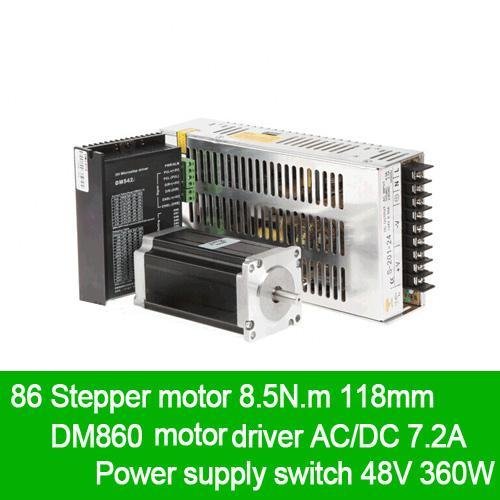

86 stepper motor 8.5N.m + DM860 Driver +360W Power switch CNC KIT AO02

86 stepper motor 8.5N.m + DM860 Driver +360W Power switch CNC KIT AO02

Feature:
86 Stepper motor:
Step Angle:1.8degree(+-5%)
Phase: 2 Phase 8 wire
Holding Torque: 8.5N.m
Current: 4A
Insulation resistance:1.1R
Inductance: 5.5mH
Body: 118mm
Shaft: 37mm
Shaft diameter:12.7mm

DM860 Stepper moter driver:
High performance, low price
Average current control, 2-phase sinusoidal output current drive
Supply voltage from 24VDC to 80VDC
Opto-isolated signal I/O
Overvoltage, under voltage, overcorrect, phase short circuit protection
16 channels subdivision and automatic idle-current reduction
8 channels output phase current setting
Offline command input terminal
Motor torque is related with speed, but not related with step/revolution
High start speed
High hording torque under high speed
Specification:
Input voltage:
24-80VDC(70V best)
24V-60VAC(48V best)
Input current < 6A
Output current 2.4A~7.8A(2.4A,3.08A,3.77A,4.45A,5.14A,5.83A,6.52A,7.2A)

360W Power Supply Switch:
Voltage Input:90V-265V
Output:
DC Voltage: 48V
Rated Current: 7.5A
Current Range: 0-7.5A
Rated Power: 360W
Ripple & Noise (maximun): 240mV
Voltage Adjustable Range: 41-56V
Voltage Tolerance: +/- 2.0%
Line Regulation: +/- 0.5%
Load Regulation: +/- 0.5%

Package Including:
1*86 Steppor moter 118mm 8.5N.m
1*DM860 Driver 7.5A
1*360W 48V power supply switching
