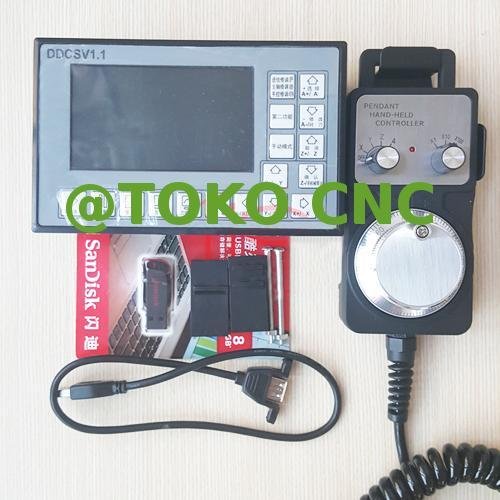

500KHz CNC 3 Axis offline Motion Controller + MPG Handwheel PLC CNC KA80

500KHz CNC 3 Axis offline Motion Controller + MPG Handwheel PLC CNC KA80 Introduction: DDCSV1 is the 3 axis motion controller which has been researched and developed by Faster CNC for 4 years. The control period of each position is only 4 milliseconds, with a high control precision. The highest uniaxial output pulse is 500KHz and the pulse width can be adjusted. It supports the common stepper motor and servo motor. Feature: – Ordinary digital input interface of 16-circuitoptocoupler coupling isolation – Ordinary digital input interface of 3-circuit optocoupler coupling isolation – Output interface of 0-10V spindle control port with analog quantity(can be modified as PWM output); – Support the 3 axis stepper motor control; – ARM9 main control chip,FPGA core algorithm chip; – 4.3 inches TFT screen, resolution ratio: 480*272; – 17 operational keys; – The main control equipment is 18V-32V power input, the current capacity is required not to be lower than 0.5A; – Support the USB flash disk to read the G code,and the size of G codefile has no requirement; – Be equipped with MPG port and support digital display MPG as well as support the general MPG in the market. – Support the panel key with single-axis manual operation, manual step and CONToperation; – Support the operation of quickly specify the running position; – Support the multi coordinate systems (with automatically saving function in case of power cut); – Support the function of saving data automatically after power down (press the start to automatically save the data in the operation, automatically save the data after power down) Wheelhand Feature: Resolution:100PPR SupplyVoltage:DC5V+/-5% SupplyCurrent:80mA OutputVoltage:2.5V TO 0.4V OutputCurrent: 40mA Fall/Risetime:5ns(typ) Switch:X1,X10,X100 AxisSwitch:OFF,X,Y,Z,4 ResponseFrequency:0-10KHz Kalau order 4-axis controller.contact us.
