2-Phase NEMA 34 Hybrid Stepper Motor Holding Torque 3.5 N.m AC70
Rp890,000.00
VOUCHER
Diskon 5% min. belanja Rp1JT
🔥 4 items sold in last 3 jam
86 orang sedang melihat produk ini sekarang
Tanya dulu via WhatsApp

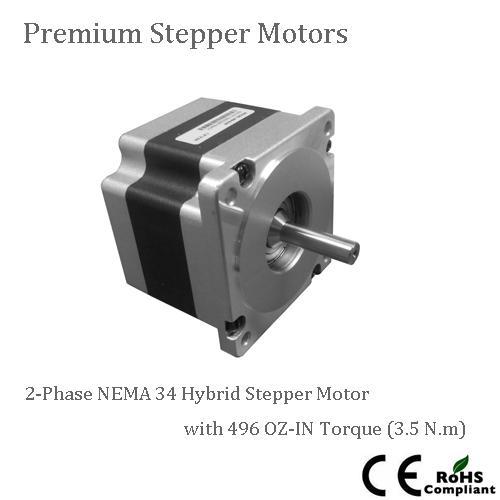

A 2-phase NEMA 34 hybrid stepper motor from Leadshine with holding torque of 496.00 oz-in (3.5 Nm). Built with the best available materials and advanced manufacturing technologies, this stepper motor ensures high precision, high torque density, low resonance, quiet motion, low motor heating, and smooth movement. It has been proved performance excellence in many industrial applications.
Features
2-phase 1.8 step angle
NEMA 34 frame size
496.0 oz-in (3.5 Nm) holding torque
Single shaft of 0.375 inch
Indusrial quality
High accuracy
Smooth movement
Low motor heating
Specifications
Frame Size: NEMA 34
Phase: 2
Step Angle: 1.8
Holding Torque: 496 Oz-in (3.5 Nm)
Number of Leads: 8
Shaft Type: Single
Shaft Size: 0.375 inch (9.525 mm)
Parallel Phase Current: 4.0 A
Series Phase Current: 2.0 A
Parallel Inductance: 3.9 mH
Serious Inductance: 15.6 mH
Parallel Resistance: 0.7 Ohm
Series Resistance: 2.8 Ohm
Rotor Inertia: 0.01420 oz-in-sec2
Length: 2.56 inch (65 mm)
Weight: 3.74 lbs (1.7 kg)
86HS35
Matching Stepper Drive
https://www.tokopedia.com/tokopuwei/2-phase-dsp-stepper-drive-50-vdc-input-and-56a-output-current-ac75
