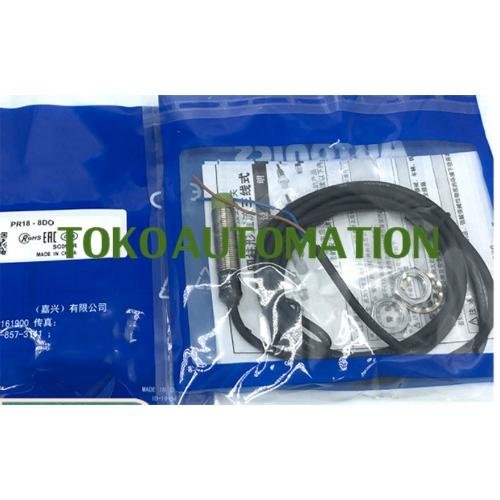

PR18-8DO PR18 8DO PR188DO PR18-8D0 M18 Inductive Proximity Sensor PO30

PR18-8DO PR18 8DO PR188DO M18 Inductive Proximity Sensor PO30

Feature:
Model number PR18-8 series
External dimensions M18x1x47
Installation type Non-shielded
Detection distance 8mm±10%
Setting distance 0-7 mm
Supply voltage 12-24Vdc (6-36Vdc); 110-220Vac (36-250Vac), 50/60Hz
Rated output current N.P Type: 300mA max; D type: 200mA max; AC Type: 400mA
Standard detected object Mild steel (30x30x1mm)
Sensing object Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)
Response frequency NPN or PNP: 0.4kHz; Two wires of DC: 0.4kHz; Two wires of AC: 25Hz
Leakage current N.P Type: 13mA max; D type: 0.8mA max; A Type: 1.7mA max
Hysteresis 10% max. of sensing distance
Protection circuit DC: Reverse connection protection, Surge suppressor, Short-circuit protection
AC: Surge suppressor
Insulation resistance 50MΩ min (between charging part and housing)
Dielectric strength 1000Vac, 1min (between charging part and housing)
