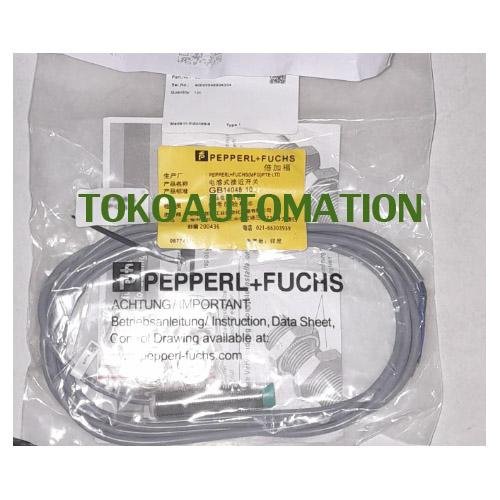

NBN8-12GM50-E2 NBN8 12GM50 E2 PNP NO sn 8mm Inductive sensor SY16

NBN8-12GM50-E2 NBN8 12GM50 E2 PNP NO sn 8mm Inductive sensor SY16
Description:
General specifications
Switching function Normally open (NO)
Output type PNP
Rated operating distance sn 8 mm
Installation non-flush
Output polarity DC
Assured operating distance sa 0 … 6.48 mm
Actuating element mild steel, e. g. 1.0037, SR235JR (formerly St37-2)
24 mm x 24 mm x 1 mm
Reduction factor rAl 0.4
Reduction factor rCu 0.35
Reduction factor r304 0.79
Reduction factor rBrass 0.49
Output type 3-wire
Reverse polarity protection reverse polarity protected
Short-circuit protection pulsing
Voltage drop Ud ≤ 1 V
Operating current IL 0 … 200 mA
Off-state current Ir max. 20 µA
No-load supply current I0 ≤ 10 mA
Time delay before availability tv ≤ 10 ms
Switching state indicator LED, yellow
Functional safety related parameters
MTTFd 1707 a
Mission Time (TM) 20 a
