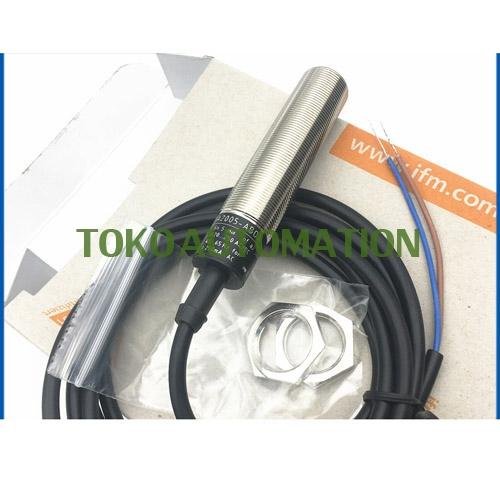

IG0062 IGA2008-ABOA/V4A IGA2008 ABOA / V4A AC/DC Inductive sensor PT37

IG0062 IGA2008-ABOA/V4A IGA2008 ABOA / V4A AC/DC Inductive sensor PT37

Description:
Inductive sensor AC/DC N/O, 8mm, Non-flush, 2m cable, Stainless steel
With combined AC/DC output stage
Large operating voltage range
Two-wire technology
Wide operating temperature range
Robust metal housing for use in harsh industrial environments

Feature:
Output function normally open
Sensing range [mm] 8
Housing threaded type
Dimensions [mm] M18 x 1 / L = 80
Operating voltage [V] 20…250 AC/DC
Protection class II
Output function normally open
Max. voltage drop switching output DC [V] 6
Max. voltage drop switching output AC [V] 6.5
Minimum load current [mA] 5
Max. leakage current [mA] 2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC)
Permanent current rating of switching output AC [mA] 250; (350 (…50 °C))
Permanent current rating of switching output DC [mA] 100
Short-time current rating of switching output [mA] 2200; (20 ms / 0,5 Hz)
Switching frequency AC [Hz] 25
Switching frequency DC [Hz] 50
