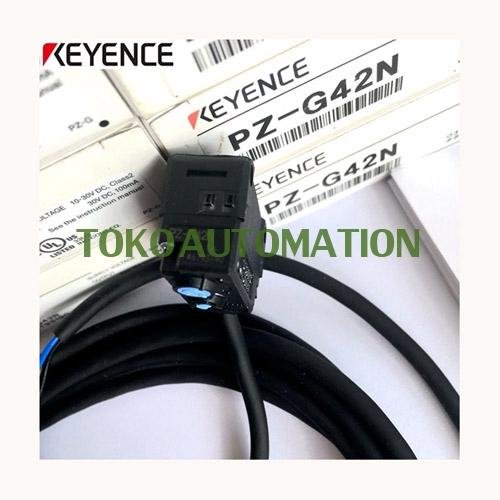

PZ-G42N PZ – G42N PZ G42N Built-in amplifier photoelectric sensor PT78

PZ-G42N PZ – G42N PZ G42N Built-in amplifier photoelectric sensor PT78

Feature:
Product No. : PZ-G42N
Product type : Built-in Amplifier Photoelectric Sensors
Output : NPN
Cable connection : Cable (2 m 78.74″)
Detecting distance : 300 mm, 11.81″ (When detecting 10 x 10 cm, 3.94″ x 3.94″ white paper).
Light source : Red LED
Sensitivity adjustment : 1-turn trimmer (230°)
Response time : 500 ?s
Operation mode : LIGHT-ON/DARK-ON (switch-selectable)
Indicators (LED) : Output = Orange LED, Stable operation = Green LED.
Control output : Open collector output, 30 V max., 100 mA max., Residual voltage: 1 V max.
Protection circuit : Reversed polarity, overcurrent protection, surge absorber
Interference supression : Up to 2 units (with the automatic different frequency function).
Tightening torque : Rectangular models (Mounting hole part): 0.5 N m max.
Enclosure rating : IEC: IP67/NEMA: 4A, 6, 12/DIN: IP69K
Ambient temperature : -20 to +55 °C -4 to 131 °F (No freezing)
Relative humidity : 35 to 85 % RH (No condensation)
