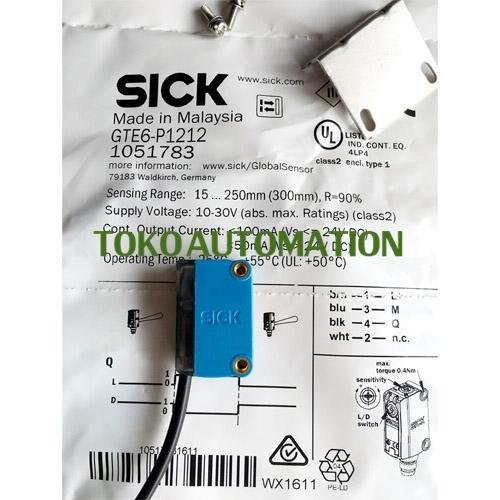

GTE6-P1211 GTE6 P1211 PNP Miniature photoelectric sensor SA87

GTE6-P1211 GTE6 P1211 PNP Miniature photoelectric sensor SA87

Feature:
Device type Photoelectric sensors
Functional principle Photoelectric proximity sensor
Functional principle detail Energetic
Sensing range max. ≤ 300 mm 1)
Sensing range ≤ 250 mm
Polarisation filters No
Emitted beam
Light source PinPoint LED 2)
Type of light Visible red light
Light spot size (distance) ? 7 mm (90 mm)
Key LED figures
Wave length 650 nm
Adjustment Mechanical spindle, 5 turns
1) Object with 90 % reflectance (referred to standard white, DIN 5033).
2) Average service life: 100,000 h at TU = +25 °C.
Supply voltage UB 10 V DC … 30 V DC 1)
Ripple ± 10 % 2)
Power consumption 30 mA 3)
Protection class III
Digital output
Type PNP
Signal voltage PNP HIGH/LOW VS – (≤ 3 V) / approx. 0 V
Output current Imax. ≤ 100 mA 4)
Response time < 1,250 ms 5)
Switching frequency 500 Hz 6)
