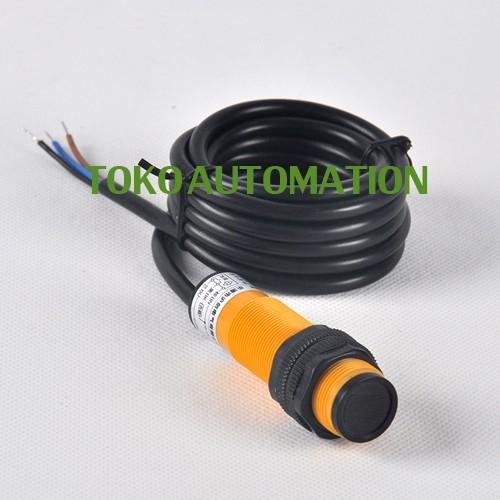

E3F1 DS5C4 M12 5cm DC NPN NO E3F1-DS5C4 photoelectric sensor PN94

E3F1 DS5C4 M12 5cm DC NPN NO E3F1-DS5C4 photoelectric sensor PN94

Feature:
External dimensions:M12
Sensing method:Diffuse reflective
Detection distance :5cm±10%
Sensitivity adjustment:Fixed
Supply voltage:6-36Vdc; 90-250Vac 50/60Hz
Rated output current:N.P Type: 300mA max; A Type: 400mA; J type: 2A max (contact life: 100000 times)
Sensing object:Opaque object
Response frequency:300Hz
Response time:1.5ms max
Light source:Infrared LED (660 nm)
Leakage current:N.P Type: 20mA max; A Type: 1.7mA max
Protection circuit:DC: Reverse connection protection, Surge suppressor, Short-circuit protection
AC: Surge suppressor
Insulation resistance:50 MΩ min. at 500 V DC between energized parts and case
Dielectric strength:1000 VAC max., 50 / 60 Hz for 1 min between energized parts and case
